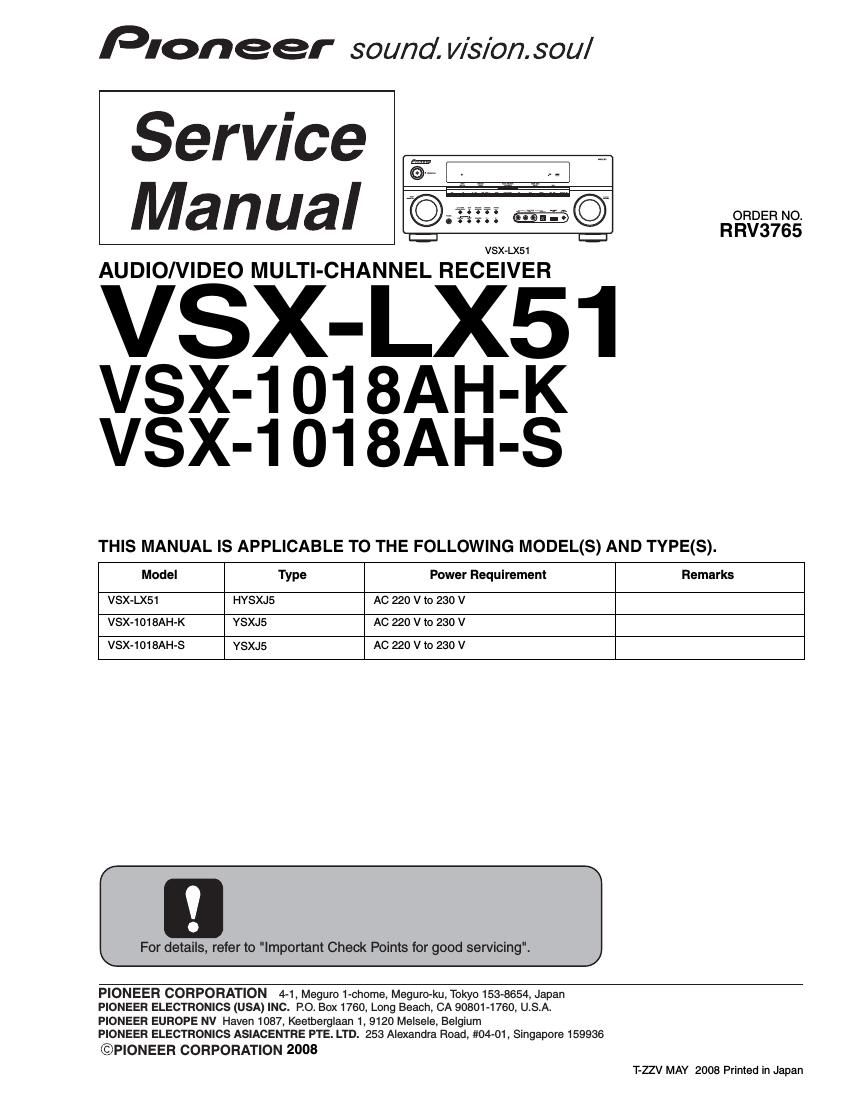

Page 1

Pioneer sound. vision. soul

Service
Manual

ORDER NO.
RRV3765
VSX-LX51
AUDIONIDEO MULTl-CHANNEL RECEIVER
VSX-1018AH-K
VSX-1018AH-S
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Model Type Power Requirement Remarks
VSX-LX51 HYSXJS AC 220 V to 230 V
VSX-1018AH-K YSXJS AC 220 V to 230 V
VSX-1018AH-S YSXJ5 AC 220 V to 230 V

For details, refer to "Important Check Points for good servicing".

PIONEER CORPORATION 4-1, Meguro1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. PO. BOX 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

©P|0NEER CORPORATION 2008
T-ZZV MAY 2008 Printed in Japan

Page 2

SAFETY INFORMATION

I]
This service manual is intended for qualified service technicians ; it is not meant for the casual do-it-
yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained
to properly and safely repair complex products such as those covered by this manual.

I Improperly performed repairs can adversely affect the safety and reliability of the product and may
void the warranty. If you are not qualified to perform the repair of this product properly and safely, you
should not risk trying to do so and refer the repair to a qualified service technician.

2 VSX-LX51

I 1 - 2 - 3 - 4 I
