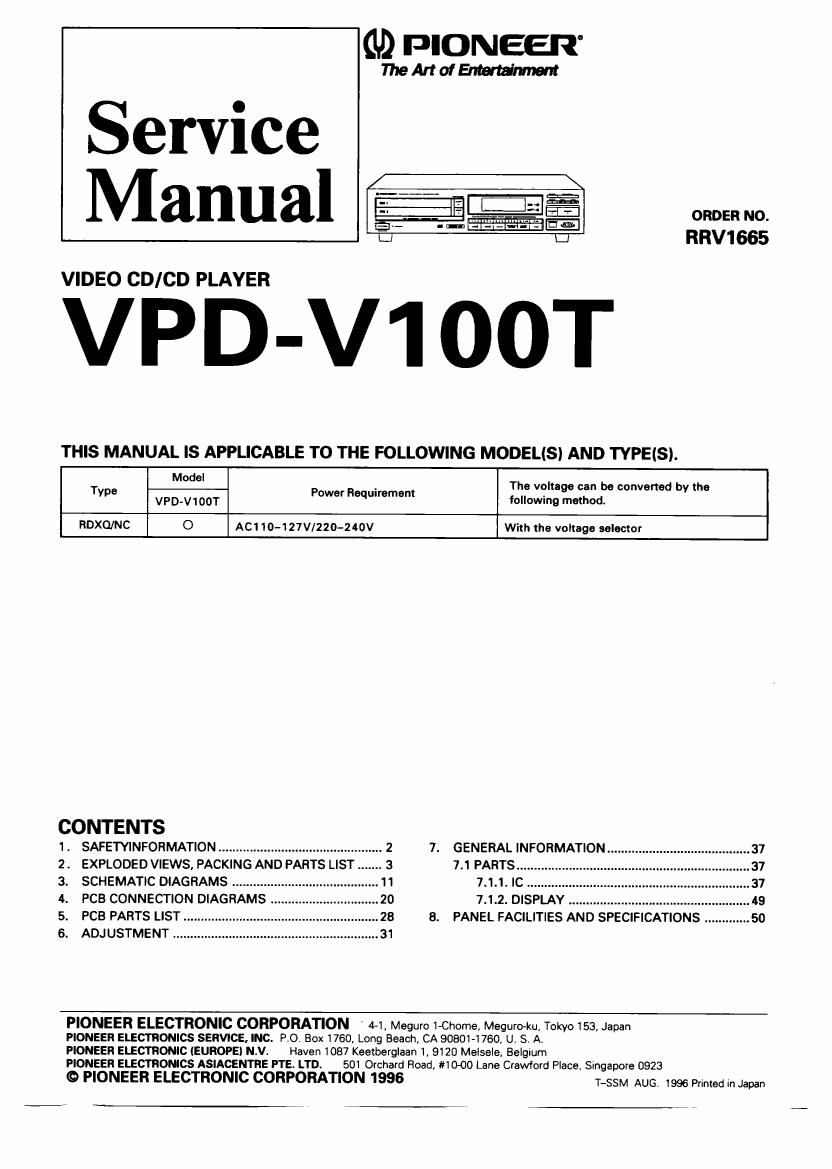

Page 1

Service
Manual

VIDEO CDICD PLAYER

VPD-V1 OOT

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODELIS) AND TYPEIS).

(ID PIONEER

fireArtofEeran

'_EI ORDER NO.
RRV1665

Model
_ The voltage can be convened by the
TYPB VPD-V1ODT Power Requirement following method.
RDXOINC O AC110-127V/220-240V With the voltage selector
CONTENTS
1. SAFETYINFORMATION ............................................... 2 GENERAL INFORMATION..
2 . EXPLODED VIEWS. PACKING AND PARTS LIST ....... 3 7.1 PARTS...
3. SCHEMATIC DIAGRAMS ............ .11 7.1.1. IC
4. PCB CONNECTION DIAGRAMS . .20 7.1.2. DISPLAY ..
5. PCB PARTS LIST. .28 PANEL FACILITIES AND SPECIFICATIONS ............. 50
6. ADJUSTMENT .31

PIONEER ELECTRONIC CORPORATION 4-11 Meguro 1-Chome, Meguro-ku, Tokyo 153, Japan
PIONEER ELECTRONICS SERVICE, INC. PO. Box 1760, Long Beach, CA 90801-1760, U. S. A.

PIONEER ELECTRONIC (EUROPE) N.V.
PIONEER ELECTRONICS ASIACENTRE PTE. LTD.

9 PIONEER ELECTRONIC CORPORATION 1996

Haven 1087 Keetberglaan I. 9120 Melsele. Belgium
501 Orchard Road, #1000 Lane Crawford Place, Singapore 0923

T- SSM AUG. 1996 Printed in Japan

Page 2

VPD-V1 OOT

1. SAFETY INFORMATION

This service manual is intended for qualified service technicians; It is not meant for the casual
do-lt-yourseifer.'Guaiified technicians have the necessary test equipment and tools, and have been
trained to properly and safely repair complex products such as those covered by this manual.
improperly performed repairs can adversely affect the safety and reliability of the product and may
void the warranty. If you are not qualified to perform the repair of this product properly and safely, you
should not risk trying to do so and refer the repair to a qualified service technician.
