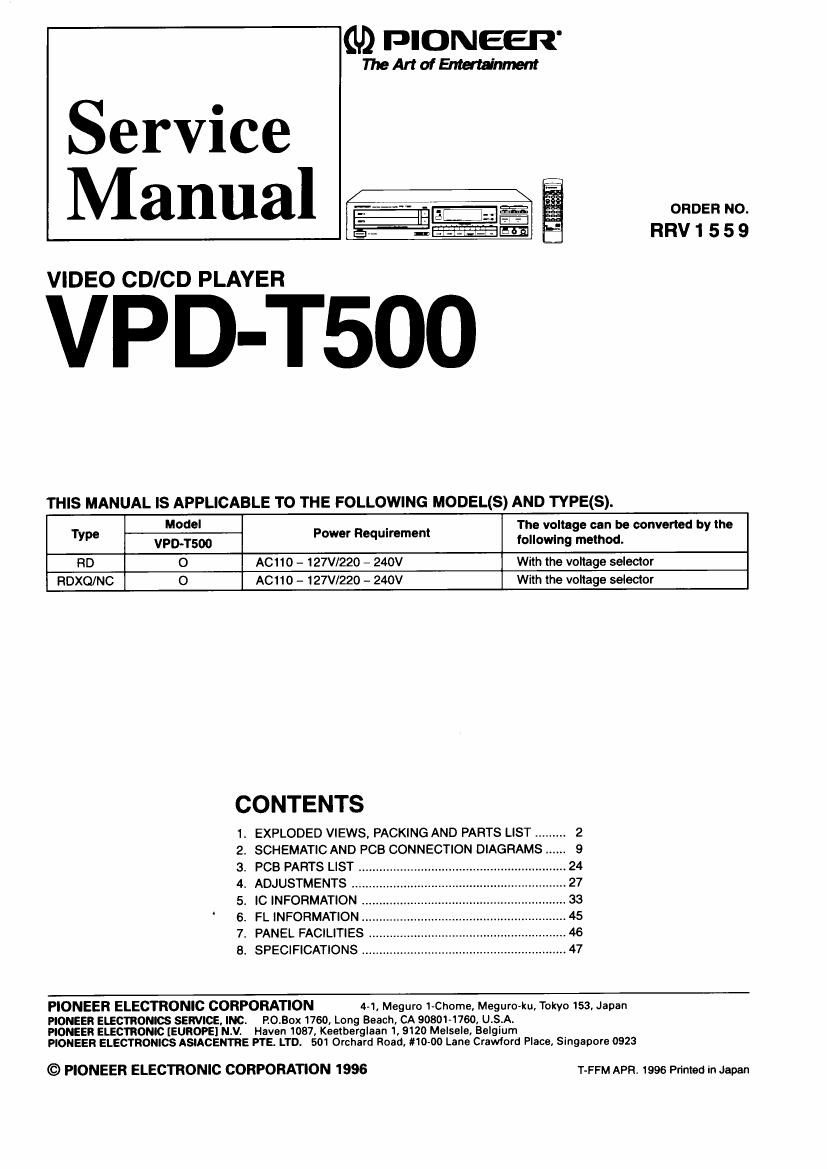

Page 1

(U) PIONEER

TheArtofEmertdnmem

Service
Manual

ORDER NO.
FIRV 1 5 5 9
VIDEO CD/CD PLAYER
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Model _ The voltage can be convened by the
Type VPD-TSOO Power Requirement following method.
FID O ACI1O - 127w220 - 240V With the voltage selector
RDXO/NC O AC110 ~ 127w220 - 240V With the voltage seIector
1. EXPLODED VIEWS, PACKING AND PARTS LIST
2. SCHEMATIC AND PCB CONNECTION DIAGRAMS .
3. PCB PARTS LIST I
4 ADJUSTMENTS
5. Ic INFORMATION
6. FL INFORMATION
7, PANEL FACILITIES .I
8. SPECIFICATIONS

PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153, Japan

PIONEER ELECTRONICS SERVICE, INC. P.0.Box 1760, Long Beach, CA 508014760, U.S.A.
PIONEER ELECTRONIC [EUROPE] N.VL Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 501 Orchard Road, #10-00 Lane Crawford Place, Singapore 0923

© PIONEER ELECTRONIC CORPORATION 1996 T-FFM APR. 1996 Printed in Japan

Page 2

VPD-T500

1. EXPLODED VIEWS, PACKING AND PARTS LIST

NOTES:
0 Part: marked by "NSP" are generally unavailable because they are not in our Marter Spare Part: Lirl.
o The A mark found on some component parts indicates the importance oflhe safety factor of the pan Therefore, when replacing, be sure to use

part: of identical derignation.
I Part: marked by Q " are no! always kept in stack. Their delivery time may be longer than mm! or they may be unavailable

1.1 EXTERIOR AND PACKING

Parts List
Mark No. Deseriptlon Parts No. Mark No. Description Part: No.
1 MAIN assy VWV1496 40 Knob VNK2654
A 2 51mm relief CM » 223 41 ...........
3 32F F FC/JOV PDDIO4I 42 Flexible cable (20?) VDA1556
A 4 AC power cord PDGIO13 43 VCDB assy vwvt490
A 5 Power transformer VTTI I46 NSP 44 Caution label 220V ARR - 003
NSP 6 PCB support AECIOI 3 45 Packing case (RD type) VHGI S95
7 Insulator PNWI912 45 Packing case (RDXQ/NC type) VHGI602
8 Knob VNK2653 46 Styrol protector F PHA l I I6
9 Power button PAC 1 540 47 Styrol protector R PHAI 1 I7
10 Time button PAC 1 549 48 Miller mat sheet Z23 - 007
l I O/C button PACI548 NSP 49 Dry Dell battery (R03. AAA) VEM - 022
12 Play button VAC 1026 50 Operating instructions VRD1056
13 10 Key PACI635 (English/Chinese)
14 Program button VAC 1027 NSP 5| Getter VAX1006
15 FL lens VAM1068 52 Audio cord DDEIDSQ
16 Name plate A PNW 1901 53 Video cord DDEID90
17 Name plate B PNW1902 54 Remote control unit (CU - VPDOOI) VXX2434
18 LED lens PNW20|9 55 Battery lid PZN IOIO
19 Front panel assy-S VXX2435 NSP 56 Caution card VRR1030
20 Screw BBZ30P060FMC NSP 57 Rear holder VNF1106
2| Screw BBZJOPOBOFZK 58 Rear spring VBH1288
22 Screw FBT4OP080HK NSP 59 Plate VNFI 107
23 Screw IBZ30P060FMC 60 Screw IBZEOPIOOFCC
24 Screw IBZSOPI SOFCC NSP 6l Barrier sheet VEC1869
25 Screw PDZZOPOSOFMC 62 Parallel cord DZOPDDOS 1 SE
26 Screw PPZSOPIZOFMC NSP 63 Jumper wire DZOPWWO6106
A 27 Fuse (FU 10. TZSOmA) AEK1048 64 Binder 213A - SKB9OBK
28 Bonnet PYYI I47 NSP 65 Shield plate RNEIS47
NSP 29 Spacer (Rubber) PEBI I95 NSP 66 Getter (RD type only) VAX 1007
NSP 30 FLKY assy VWG I771
NSP 3| PCB holder VNFI |0|
NSP 32 SWITCH BOARD assy PW2229A
NSP 33 MIJB assy VWVI495
34 Rear panel (RD type) VNAI758
34 Rear panel (RDXQ/NC type) VNAI768
NSP 35 Under base PNA l 882
NSP 36 Spacer PNY - 404
NSP 37 Twin -tmy mechanism assy VWT1137
33 Name plate PAM I407
NSP 39 Front panel VNK3796
