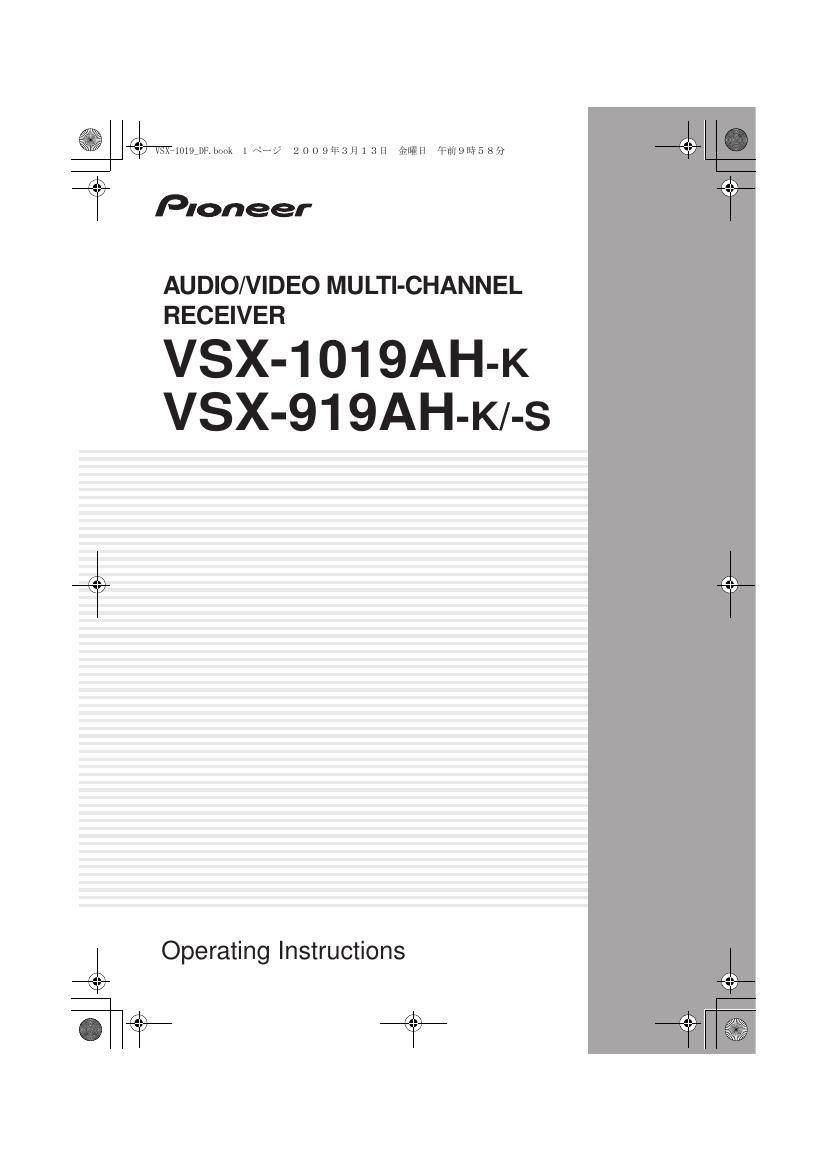

Pioneer VSX 919 1019 AH Owners Manual
This is the 122 pages manual for Pioneer VSX 919 1019 AH Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Pioneer VSX 919 1019 AH Owners Manual (Ocr-read)
Page 1
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.CAUTION: TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN IMPORTANT D3-4-2-1-1_A1_En Replacement and mounting of an AC plug on the power supply cord of this u\ nit should be performed only by qualified service personnel. D3-4-2-1-2-2_B_En IMPORTANT: THE MOULDED PLUGThis appliance is supplied with a moulded three pin mains plug for your \ safety and convenience. A 10 amp fuse is fitted in this plug. Should the fuse need to be replaced, please ensure that the replacement fuse has a \ rating of 10 amps and that it is approved by ASTA or BSI to BS1362. Check for the ASTA mark or the BSI mark on the body of the fuse. If the plug contains a removable fuse cover, you must ensure that it is refitted when the fuse is replaced. If you \ lose the fuse cover the plug must not be used until a replacement cover is obtained. A replacement fu\ se cover can be obtained from your local dealer. If the fitted moulded plug is unsuitable for your socket outlet, then th\ e fuse shall be removed and the plug cut off and disposed of safely. There is a danger of severe electrical shock if the cut off plug\ is inserted into any 13 amp socket. If a new plug is to be fitted, please observe the wiring code as shown below. If in any doubt, please consult a qualified electrician. IMPORTANT: The wires in this mains lead are coloured in accordance with the follo\ wing code: Blue : Neutral Brown : Live As the colours of the wires in the mains lead of this appliance may not \ correspond with the coloured markings identifying the t erminals in your plug, proceed as follows ; The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK. The wire which is coloured BROWN must be connected to the terminal which\ is marked with the letter L or coloured RED. How to replace the fuse: Open the fuse compartment with a screwdriver and replace the fuse. WARNING The voltage of the available power supply differs according to country or region. Be sure that the power supply voltage of the area where this unit will be used meets the required voltage (e.g., 230 V or 120 V) written on the rear panel. D3-4-2-1-4_A_En Before plugging in for the first time, read the following section carefully. WARNINGTo prevent a fire hazard, do not place any naked flame sources (such as a lighted candle) on the equipment. D3-4-2-1-7a_A_En WARNINGThis equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filled with liquid near this equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain or moisture. D3-4-2-1-3_B_En Operating EnvironmentOperating environment temperature and humidity: +5 ºC to +35 ºC (+41 ºF to +95 ºF); less than 85 %RH (cooling vents not blocked) Do not install this unit in a poorly ventilated area, or in locations exposed to high humidity or direct sunlight (or strong artificial light) D3-4-2-1-7c_A_En This product is for general household purposes. Any failure due to use for other than household purposes (such as long-term use for business purposes in a restaurant or use in a car or ship) and which requires repair will be charged for even during the warranty period. K041_En VSX-1019_DF.book 2 ページ ２００９年３月１３日 金曜日 午前９時５８分
Page 2
VENTILATION CAUTIONWhen installing this unit, make sure to leave space around the unit for ventilation to improve heat radiation (at least 60 cm at top, 10 cm at rear, and 30 cm at each side). WARNINGSlots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product, and to protect it from overheating. To prevent fire hazard, the openings should never be blocked or covered with items (such as newspapers, table-cloths, curtains) or by operating the equipment on thick carpet or a bed. D3-4-2-1-7b_A_En CAUTIONThe STANDBY/ON switch on this unit will not completely shut off all power from the AC outlet. Since the power cord serves as the main disconnect device for the unit, you will need to unplug it from the AC outlet to shut down all power. Therefore, make sure the unit has been installed so that the power cord can be easily unplugged from the AC outlet in case of an accident. To avoid fire hazard, the power cord should also be unplugged from the AC outlet when left unused for a long period of time (for example, when on vacation). D3-4-2-2-2a_A_En If the AC plug of this unit does not match the AC outlet you want to use, the plug must be removed and appropriate one fitted. Replacement and mounting of an AC plug on the power supply cord of this unit should be performed only by qualified service personnel. If connected to an AC outlet, the cut-off plug can cause severe electrical shock. Make sure it is properly disposed of after removal. The equipment should be disconnected by removing the mains plug from the wall socket when left unused for a long period of time (for example, when on vacation). D3-4-2-2-1a_A_En Voltage selector(Multi-voltage models only) You can find the voltage selector switch on the rear panel of multi-voltage models. The factory setting for the voltage selector is 220 V. Please set it to the correct voltage for your country or region. Saudi Arabia operates on 127 V and 220 V mains voltage. Please set to the correct voltage before using. For Taiwan, please set to 110 V before using. Before changing the voltage, disconnect the AC power cord. Use a medium size screwdriver to change the voltage selector switch.Medium size screwdriver D3-4-2-1-5_En TWO VOLTAGE SELECTORS 220V110V 230 - 240V 120 - 127V 110V 220V 230 - 240V 120 - 127V For Australia Model For Taiwan exclusivelyTaiwanese two pin flat-bladed plug VSX-1019_DF.book 3 ページ ２００９年３月１３日 金曜日 午前９時５８分
