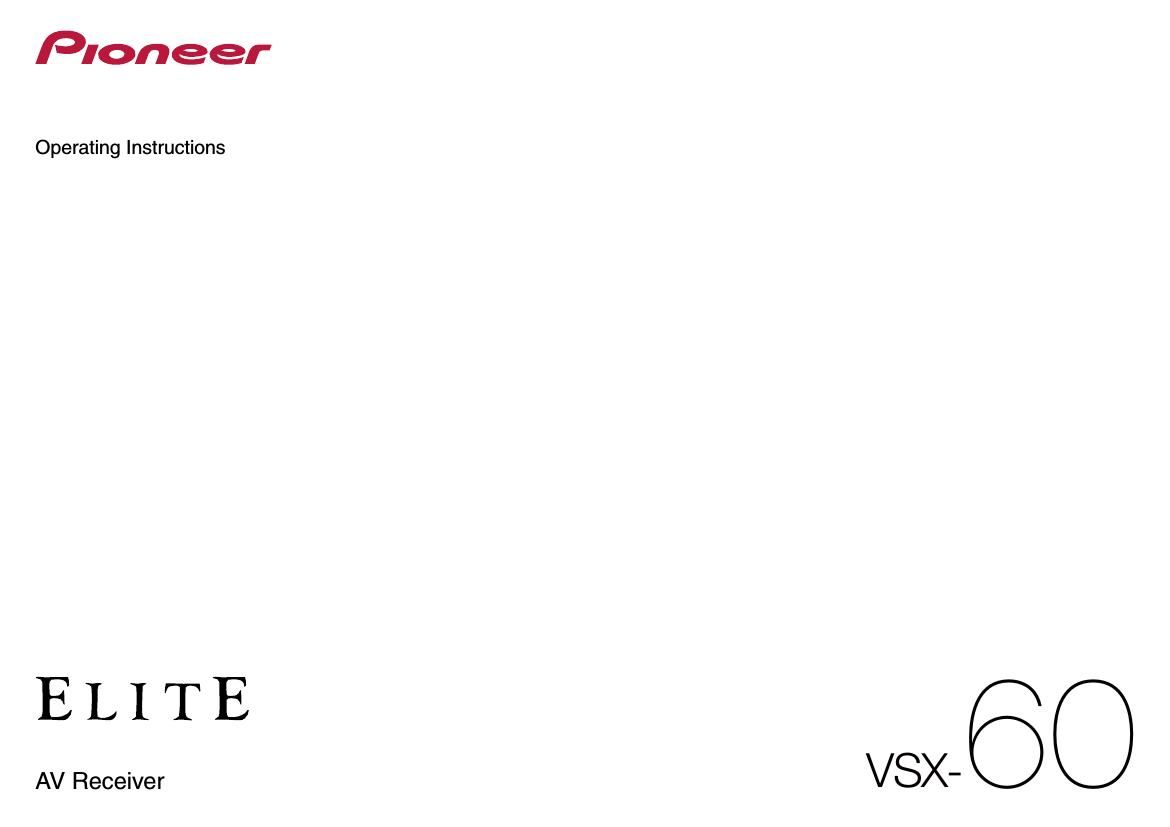

Pioneer VSX 60 Owners Manual
This is the 109 pages manual for Pioneer VSX 60 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Pioneer VSX 60 Owners Manual (Ocr-read)
Page 1
2 The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.CAUTION: TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN IMPORTANT D3 4 2 1 1_A1_En WARNINGThis equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filled with liquid near this equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain or moisture. D3 4 2 1 3_A1_En WARNINGBefore plugging in for the first time, read the following section carefully. The voltage of the available power supply differs accord ing to country or region. Be sure that the power supply voltage of the area where this unit will be used meets the required voltage (e.g., 230 V or 120 V) written on the rear panel. D3 4 2 1 4*_A1_En WARNINGTo prevent a fire hazard, do not place any naked flame sources (such as a lighted candle) on the equipment. D3 4 2 1 7a_A1_En VENTILATION CAUTIONWhen installing this unit, make sure to leave space around the unit for ventilation to improve heat radiation (at least 40 cm at top, 10 cm at rear, and 20 cm at each side). WARNINGSlots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product, and to protect it from overheating. To prevent fire hazard, the openings should never be blocked or covered with items (such as newspapers, table cloths, curtains) or by operating the equipment on thick carpet or a bed. D3 4 2 1 7b*_A1_En Operating EnvironmentOperating environment temperature and humidity: +5 °C to +35 °C (+41 °F to +95 °F); less than 85 %RH (cooling vents not blocked) Do not install this unit in a poorly ventilated area, or in locations exposed to high humidity or direct sunlight (or strong artificial light) D3 4 2 1 7c*_A1_En If the AC plug of this unit does not match the AC outlet you want to use, the plug must be removed and appropriate one fitted. Re placement and mounting of an AC plug on the power supply cord of this unit should be pe rformed only by qualified serv ice personnel. If connected to an AC outlet, the cut off plug can cause severe electrical shock. Make sure it is properly disposed of after removal. The equipment should be disconnected by removing the mains plug from the wall socket when left unused for a long period of time (for example, when on vacation). D3 4 2 2 1a_A1_En CAUTION The STANDBY/ON switch on this unit will not completely shut off all power from the AC outlet. Since the power cord serv es as the main disconnect device for the unit, you will need to unplug it from the AC outlet to shut down all power. Therefore, make sure the unit has been installed so that the power cord can be easily unplugged from the AC outlet in case of an accident. To avoid fire hazard, the power cord should also be unplugged from the AC outlet when left unused for a long period of time (for example, when on vacation). D3 4 2 2 2a*_A1_En WARNING: Handling the cord on this product or cords associated with accessories sold with the product may expose you to chemicals listed on proposition 65 known to the State of California and other governmental entities to cause cancer and birth defect or other reproductive harm. D36 P5_B1_En Caution To prevent fire hazard, the Class 2 Wiring Cable should be used for connection with speake r, and should be routed away from hazards to avoid damage to the insulation of the cable. D3 7 13 67*_A1_En Re ad these instructions. Keep these instructions. Heed all warnings. Fo llow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacture rs instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. Pr otect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 1) 2) 3) 4) 5) 6) 7) 8) 9) 10) Only use attachments/accessories specified by the manufacture r. Use only with the cart, stand, tripod, bracket, or table specified by the manufacture r, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid inju ry from tip over. Unplug this apparatus during lightning storms or when unused for long periods of time. Re fer all se rvicing to qualified serv ice personnel. Serv icing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. D3 7 13 69_En 11) 12) 13) 14) NOTE: This equipment has been tested and found to comply with the limits for a\ Class B digital device, pursuant to Part 15 of the FCC Ru les. These limits are designed to provide reasonable protection against \ harmful inte rference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy\ and, if not installed and used in accordance with the instructions, may cause harmful inte rference to radio communications. However, there is no guarantee that interf erence will not occur in a particular installation. If this equipment does cause harmful interf erence to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interf erence by one or more of the following measures: Re orient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to\ which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. D8 10 1 2_A1_En Information to User Alterations or modifications carried out without appropriate authorization may invalidate the user s right to operate the equipment. D8 10 2_A1_En
Page 2
3 IMPORTANT NOTICE THE MODEL NUMBER AND SERIAL NUMBER OF THIS EQUIPMENT ARE ON THE REAR OR BOT TOM. RECORD THESE NUMBERS ON YOUR ENCLO SED WA RRANTY CARD AND KEEP IN A SAFE PLACE FOR FUTURE REFERENCE. D36 AP9 1_A1_En CAUTION This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interf erence with electric appliances such as radios and televisions, use shielded cables and connectors for connections. D8 10 3a_A1_En This product is for general household purposes. Any failure due to use for other than household purposes (such as long term use for business purposes in a restaurant or use in a car or ship) and which requires repair will be charged for even during the warranty period. K041_A1_En The Safety of Your Ears is in Your HandsGet the most out of your equipment by playing it at a safe level a level that lets the sound come through clearly without annoying blaring or distortion and, most importantly, without affecting your sensitive hearing. Sound can be deceiving. Over time, your hearing comfort level adapts to higher volumes of sound, so what sounds normal can actually be loud and harmful to your hearing. Guard against this by setting your equipment at a safe level BEFORE your hearing adapts. ESTABLISH A SAFE LEVEL:- Set your volume control at a low setting. - Slowly increase the sound until you can hear it comfortably and clearly, without distortion. - Once you have established a comfortable sound level, set the dial and leave it there. BE SURE TO OBSERVE THE FOLLOWING GUIDELINES: - Do not turn up the volume so high that you ca nt hear whats around you. - Use caution or temporarily discontinue use in potentially hazardous situations. - Do not use headphones while operating a motorized vehicle; the use of headphones may create a traffic hazard and is illegal in many areas. S001a_A1_En This Class B digital apparatus complies with Canadian ICES 003. D8 10 1 3_A1_En CAUTION: HOT SURFACE. DO NOT TOUCH. The top su rface over the internal heatsink may become hot when operating this product continuously.
