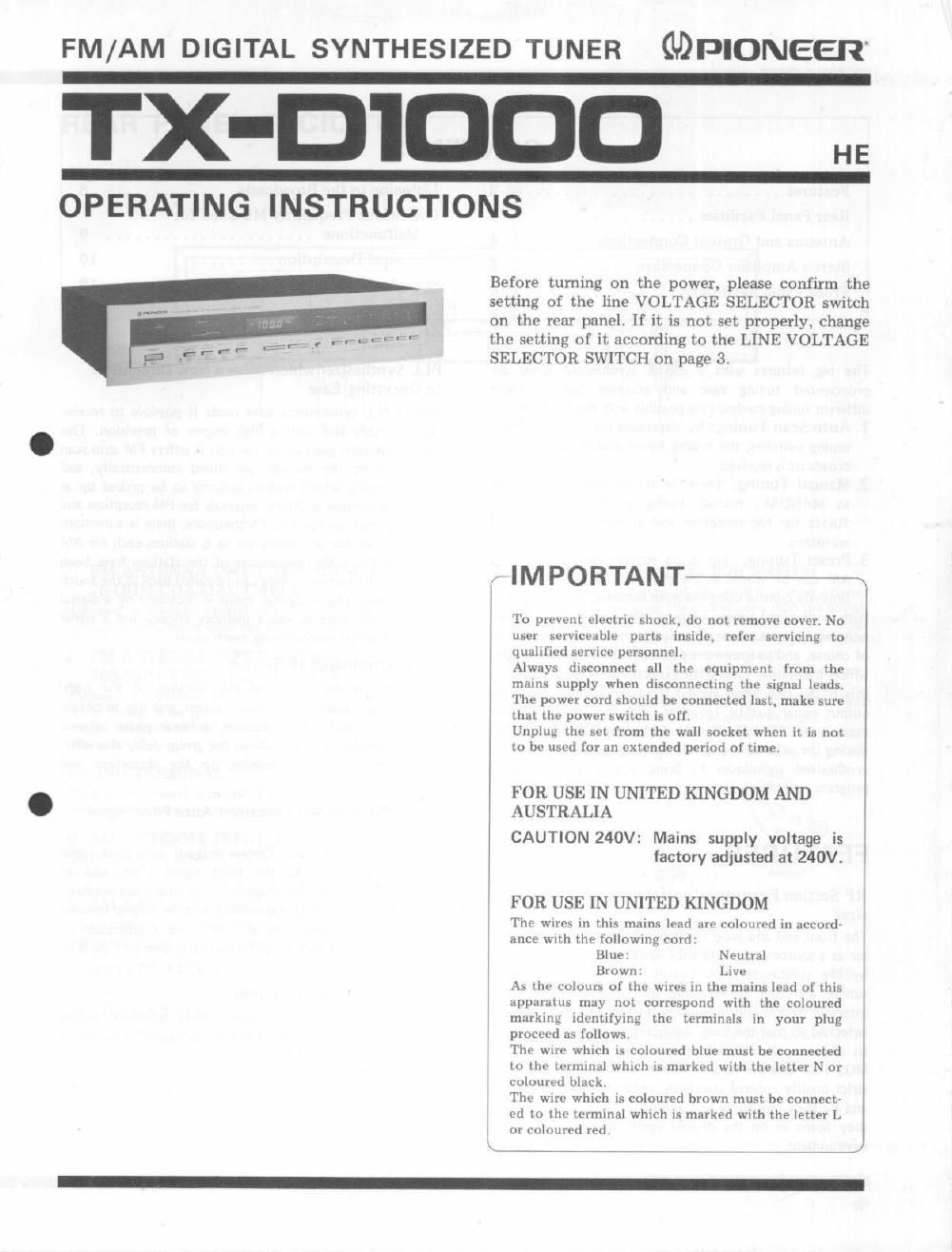

Page 1

FM/AM DIGITAL SYNTHESIZED TUNER MPIONEER'

X-D'IDDD H.

OPERATING INSTRUCTIONS

Before turning on the power, please confirm the
setting of the line VOLTAGE SELECTOR switch
on the rear paneli If it is not set properly, change
the setting of it according to the LINE VOLTAGE
SELECTOR SWITCH on page 3.

VIM PORTANTfi»%

To prevent electric shock. do not remove cover. No
user serViceuhle parts lnSIdP refer servicing to
qualified sernce personnel.

Always disconnect all the equipment from the
mains supply when disconnecting the signal leads.
The power card should be connected last, make sure
that the power switch is off.

Unplug the set from the wall socket when IL is not
to be used for an extended period of time.

FOR USE IN UNITED KINGDOM AND
AUSTRALIA

CAUTION 240V: Mains supply voltage is
factory adjusted at 240V.

FOR USE IN UNITED KINGDOM

The Wires in this mains lead are coloured in accord
ance with the following cord.

Blue. Neutral

Brown: Live
As the colours of the Wires in the mains lead of this
apparatus may not correspond Wllh the coloured
marking identifying the terminals in your plug
prom-ed as follows.
The Wire which is coloured blue must be connected
to IIII' terminal which is marked with the letter N or
CUIIHIII'd black.
The Wire which is coloured brown must be connect»
ed to the ierminal which is marked with the letter L
or coloured red

Page 2

-

Features ............................ 2
Rear Panel Facilities ................... 3
Antenna and Ground Connections ........ 4
Stereo Amplifier Connection ........... 5
Front Panel Facilities .................. 6

CONTENTS

Listening to the Broadcasts ............. 8
Conditions Frequently Mistaken for
Malfunctions ...................... 9
Technical Description .................. 10
Specifications ........................ 12

The big features with a digital synthesized tuner are

pronounced tuning ease and accurate tuning. Three

different tuning methods are pessible with the TX-DlOOO.

1. Auto Scan Tuning: By depressed the UP and DOWN
tuning switches, the tuning automatically stops when a
broadcast is received.

2. Manual Tuning: When the tuning mode switch is set
to MANUAL, manual tuning is possible at every
SOkHz for FM reception and at every lkHz for AM
reception.

3. Preset Tuning: Up to six stations each for FM and
AM can be stored in the memory and then called by
fingertip control using the push buttons.

With synthesized tuners, there is a tendency to concentrate
only on improved operating ease, besides accurate tuning
of course, and to ignore the performance and sound quality
which traditional tuners are expected to display. At least,
this is the case when viewed from the standpoint of the
output signal quality. However, with the TX-DlOOO, our
many years of dedication to techniques aimed at repro-
ducing the original sound faithfully merge with our quartz
synthesized techniques to bring you a superior audio
program source in which we have the utmost confidence.

FEATURES

RF Section Featuring Control with LSI Synthe-
sizer

The front end and local oscillator employ a quartz oscilla-
tor as a source of the reference signal, and this is controlled
by the synthesizer PLL circuit. This provides accurate
tuning with the broadcasting station frequency, 50kHz
intervals for FM and 9kHz intervals for AM, and the signal
is locked so that the tuner maintains its peak performance.
In addition, the RF amplifier which employs a dualgate
MOS FET and the varactor diode, which is selected under
strict quality control standards, enhance the noise factor,
and by their sensitivity and ability to suppress interference
they home in on the desired signals in a complex signal
environment.

#

2

PLL Synthesizer which Adds a New Dimension

to Operating Ease

Quartz PLL synthesizers have made it possible to receive
signals stably and with a high degree of precision. This
tuner, however, goes a step further. It offers FM auto scan
tuning where the stations are tuned automatically, and
manual tuning which enables stations to be picked up at
fingertrip control at SOkHz intervals for FM reception and
at 9kHz intervals for AM. Furthermore, there is a memory
function capable of storing up to 6 stations each for AM
and FM. Once the frequencies of the stations have been
stored in the memory, they can be called back at the touch
of a button. The reception mode is indicated by a digital
display, and there is also a memory display and a signal
indicator which makes tuning much easier.

High-performance IF Section

In order to do justice to the features of the high-
performance quartz synthesizer system and also to obtain
the best in audio specifications, a linear phase ceramic
filter is employed which allows the group delay character»
istics, which have a bearing on the distortion and
resolution, to be flat,

PLL MPX with Self-contained Auto Pilot Signal
Canceler

This tuner incorporates Pioneer original auto pilot signal
canceler which tracks the pilot signal level, and an
NFB PLL MPX decoder. Together, they help yield improve»
ments in the overall characteristics such as a signal-to-noise
ratio of 72dB, distortion of 0.06% and a separation of
55dB as well as a wide-range frequency response of 20HZ to
iskHztgg dB.

Off-air Recording Function

A built-in oscillator generates 330Hz reference signals

(50% modulation) which are extremely handy for recording
programs off the air (FM).
