Pioneer tswx 75 a service manual

This is the 7 pages manual for pioneer tswx 75 a service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 7

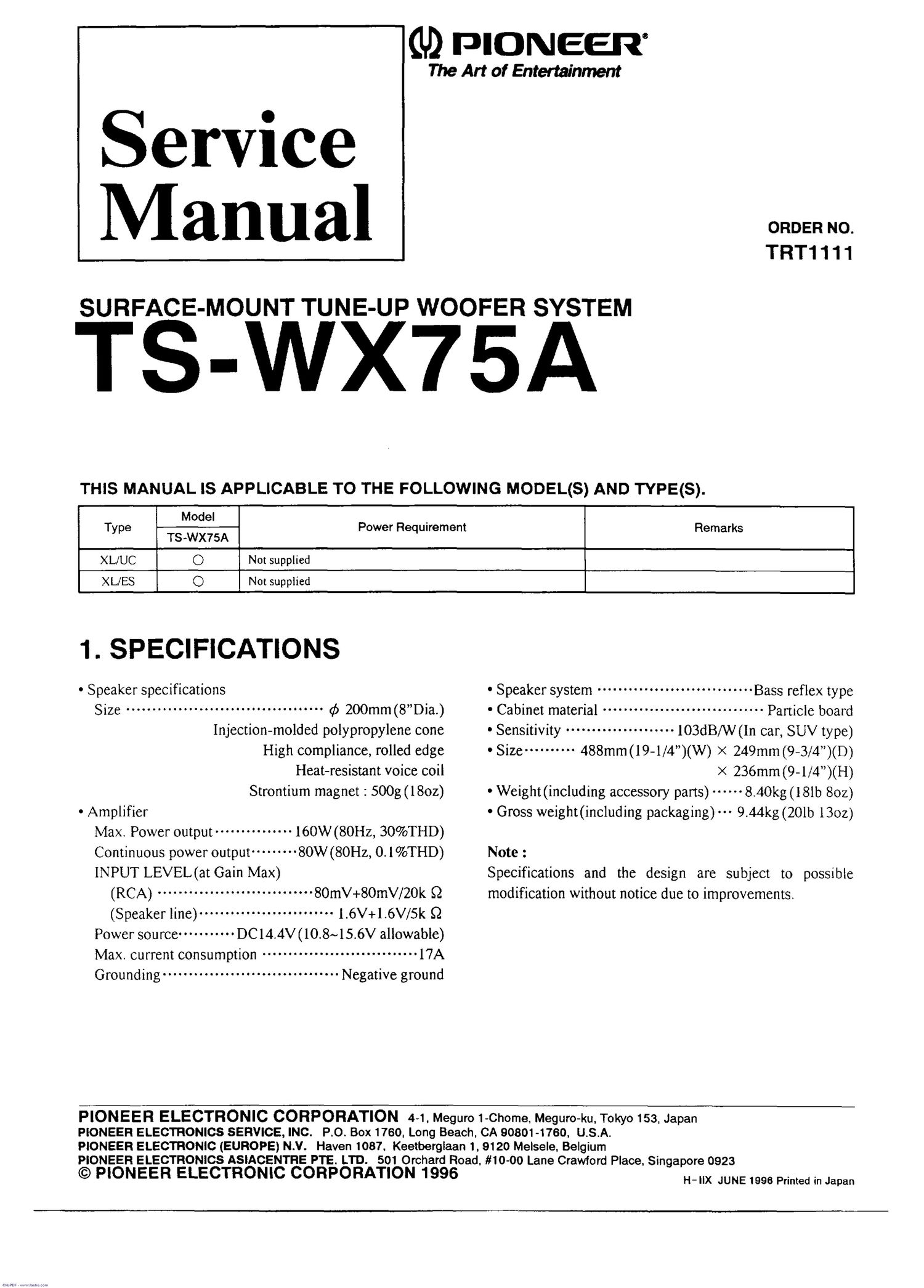

Extracted text from pioneer tswx 75 a service manual (Ocr-read)

Page 1

(U) PIONEER

The Art of Entertainment

ORDER No.
TRT1 1 1 1

SU-RFACE MOUNT TUNE- UP WOOFER SYSTEM

TS- WX75A

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

Model
TS -WX75A

0 Not supplied

Power Requirement

Not supplied

1. SPECIFICATIONS

° Speaker specifications ° Speaker system ------------------------------ Bass reflex type
SIZE ...................................... Q3 200mm (8Dja.) a Cabinet material ............................... Particle board
Injection-molded polypropylene cone - Sensitivity --------------------- lO3dB/W (In car, SUV type)

High compliance, rolled edge ' Size ---------- 488mm(19-1/ )(W) X 249mm (9-3/4)(D)

Heat-resistant voice coil X 236mm(9-l/4)(H)

Strontium magnet : 500g (1802) o Weight(including accessory parts) ------ 8.40kg (181b 802)

° Amplifier ° Gross weight(including packaging) 9.44kg (201b 1302)

Max. Power output --------------- 160W (80Hz, 30%THD)

Continuous power output --------- 80W(80Hz, 0.1%THD) Note :

INPUT LEVEL(at Gain Max) Specifications and the design are subject to possible
(RCA) ------------------------------ 80mV+80mV/20k Q modification without notice due to improvements.
(Speaker line) .......................... l.6V+l.6V/5k Q

Power source ----------- DC 14.4V(10.8~15.6V allowable)

Max. current consumption .............................. 17A

Grounding .................................. Negative ground

PIONEER ELECTRONIC CORPORATION 4-1. Meguro1-Chome, Meguro-ku. Tokyo 153, Japan
PIONEER ELECTRONICS SERVICE, INC. PO. Box 1760. Long Beach. CA 90801-1760, U.S.A.

PIONEER ELECTRONIC (EUROPE) N. V. Haven 1087, Keetberglaan 1 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 501 Orchard Road #10- 00 Lane Crawford Place Singapore 0923
