Pioneer tswx 100 bpa service manual
This is the 8 pages manual for pioneer tswx 100 bpa service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer tswx 100 bpa service manual (Ocr-read)

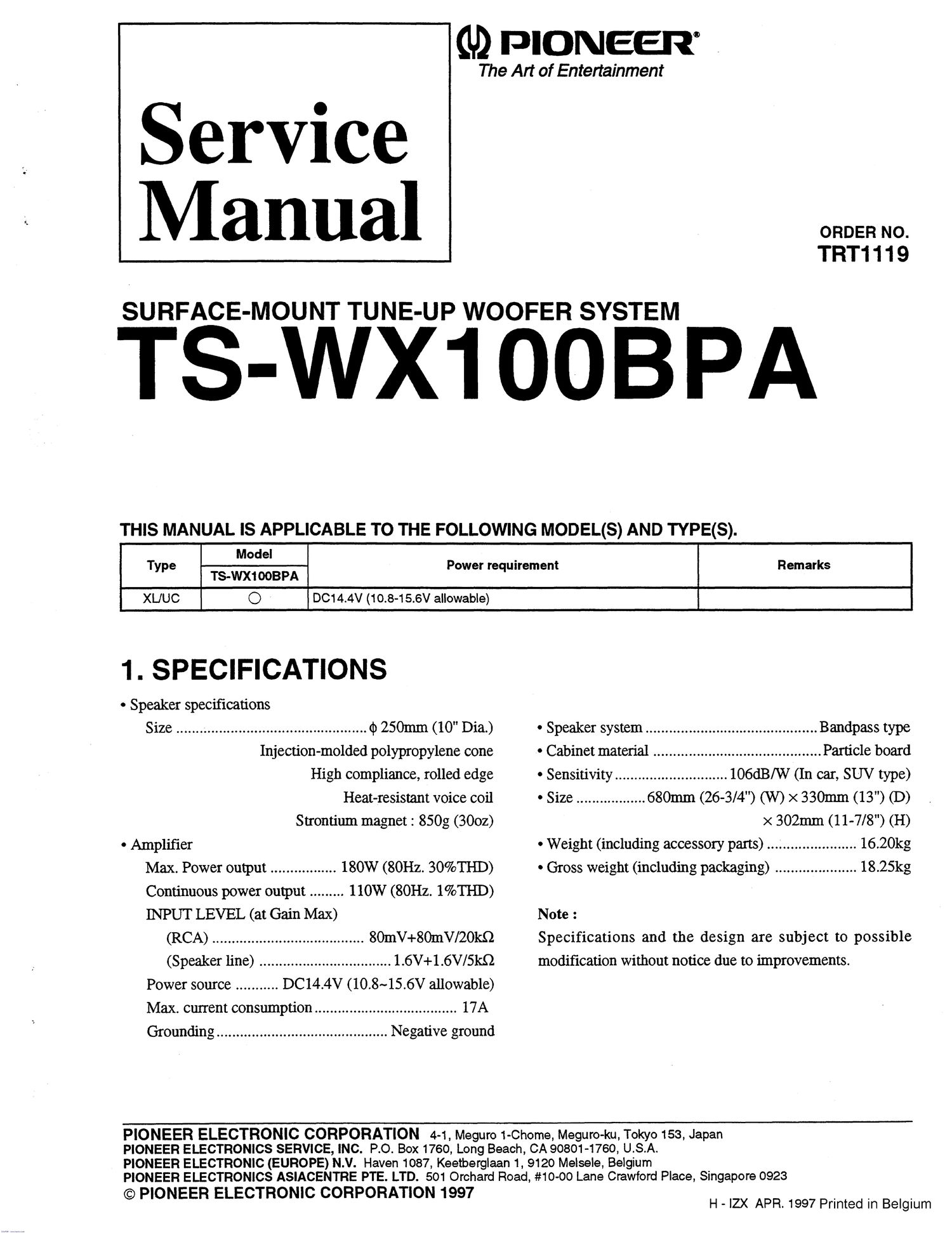

Page 1
CIibPDF - www.fasl iiiiiii
Size ......................................... (1) 250mm (10" Dia.) - Speaker system ............................................ Bandpass type
Injection-molded polypropylene cone .0 Cabinet material .................................... 4 ....... P article board
High compliance, rolled edge 0 Sensitivity ............................. lO6dB/W (In car, SUV type)
Heat-resistant voice coil 0 Size .................. 680mm (26-3/ ") (W) x 330mm (13") (D)
Strontium magnet : 850g (3002) x 302mm (11-7/8") (H)
. Amplifier - Weight (including accessory parts) 16.20kg
Max. Power output ................. 180W (80Hz. 30%THD) - Gross weight (including packaging) ........... 18.25kg
Continuous power output ......... 110W (80Hz. 1%THD)
INPUT LEVEL (at Gain Max) Note :
(RCA) ....................................... 80mV+80mV/20k§2 Specifications and the design are subject to possible
(Speaker line) 1.6V+1.6V/5kQ modification without notice due to improvements.
Power source ........... DC14.4V (10.8~15.6V allowable)
Max. current consumption ..................................... 17A
