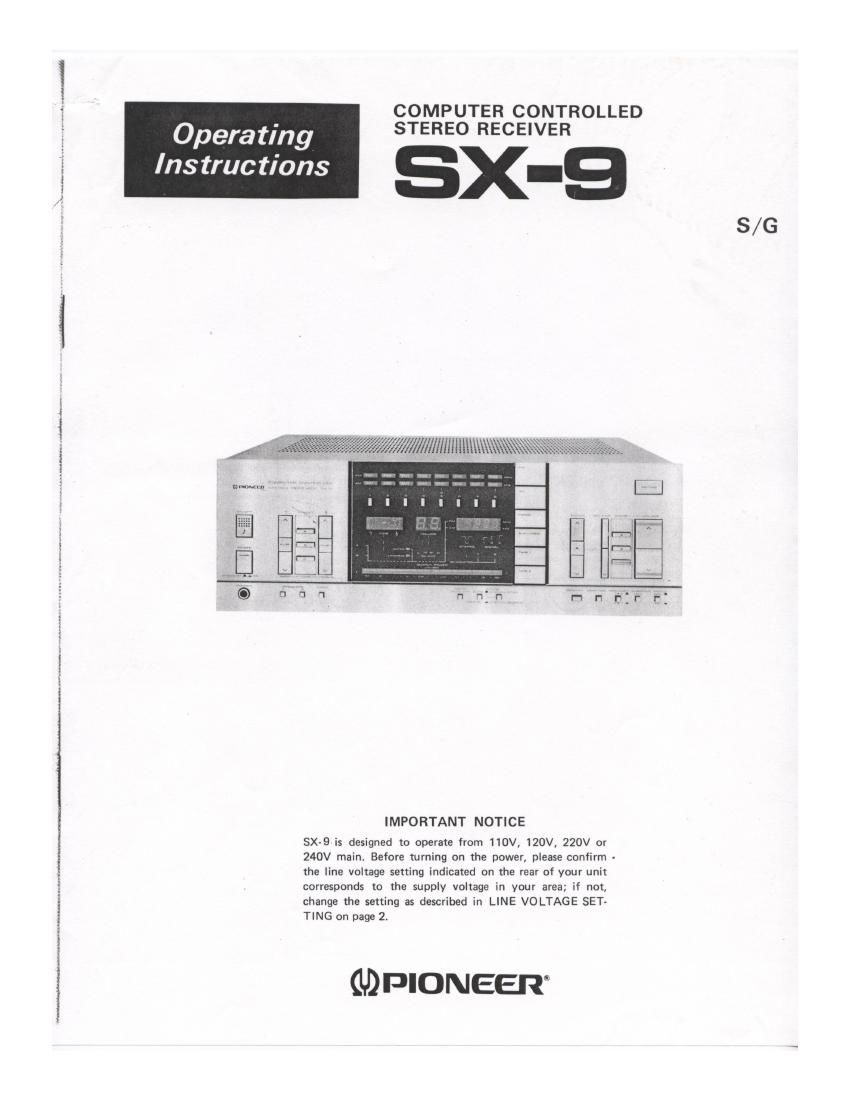

COMPUTER CONTROLLED
Operating STEREO RECEIVER

Ins truc tions Sx-s

IMPORTANT NOTICE

SX-9 is designed tO operate from 110V, 120V, 220V or
240V main. Before turning on the power, please confirm -
the line voltage setting indicated on the rear of your unit
corresponds to the supply voltage in your area; if not,
change the setting as described in LINE VOLTAGE SET-
TING on page 2.

QDPIONEER

S/G

Page 2

r-* LINE VOLTAGE SETTING \fi

You will find the two VOLTAGE SELECTOR switches on the rear panel. These switches have positions
for 110V, 120V. 220V and 240V power sources. Before your receiver is shipped from the factory, these
switches are set to the power requirements of the destination; nevertheless, you should check that they
are set properly before plugging the power cord into the outlet. If the voltage is not properly set or if
you move to an area where the voltage requirements differ, adjust these selector switches. Before adjust-
ing, disconnect the power cord.

Selector 1

1. Unscrew the fuse cap with a Phillips screwdriver, then take out the fuse cap and plug.

2. Reinstall the plug with its cutaway section exposing the correct voltage indication as shown in the
illustration below.

3. Refer to the table and install a replacement fuse (provided as an accessory).

4. Insert the fuse in the fuse cap, then fit the cap to the plug and tighten.

Selector 2

1. Prepare a medium size screwdriver.

2. Insert the screwdriver into the arrow on the voltage selector and adjust so that the tip of the arrow

points to the voltage value of your area.
:C-é} :1 Selector 1
Selector 2 .

vomc: SELECTOR
:AO Q0»

3
«3"

\
50

Table '
\ Medium size screwdriver Voltage Fuse Fuse cap

110V. 120V 10A Phillips screwdriver

220V, 240V 5A \\

SETTING OF THE FM DE-EMPHASIS
SWITCH (on the rear panel) m
This switch is used to select the de-emphasis value. DEEMFWS'S
Before the unit leaves the manufacturing plant, it is set to
the de-emphasis of the destination.

For the United States and Canada, it is set to 75pS, and for

Other countries

other countries to SOuS. _5°5 I
Check that the switch is set properly before use. a I
If the switch is set to the wrong position, the high-frequen- / -75"S

The United States
and Canada

cy range sound will appear distorted during the reception of
an FM broadcast, Contact your dealer and inquire if you
are not sure about the de-emphasis value.
