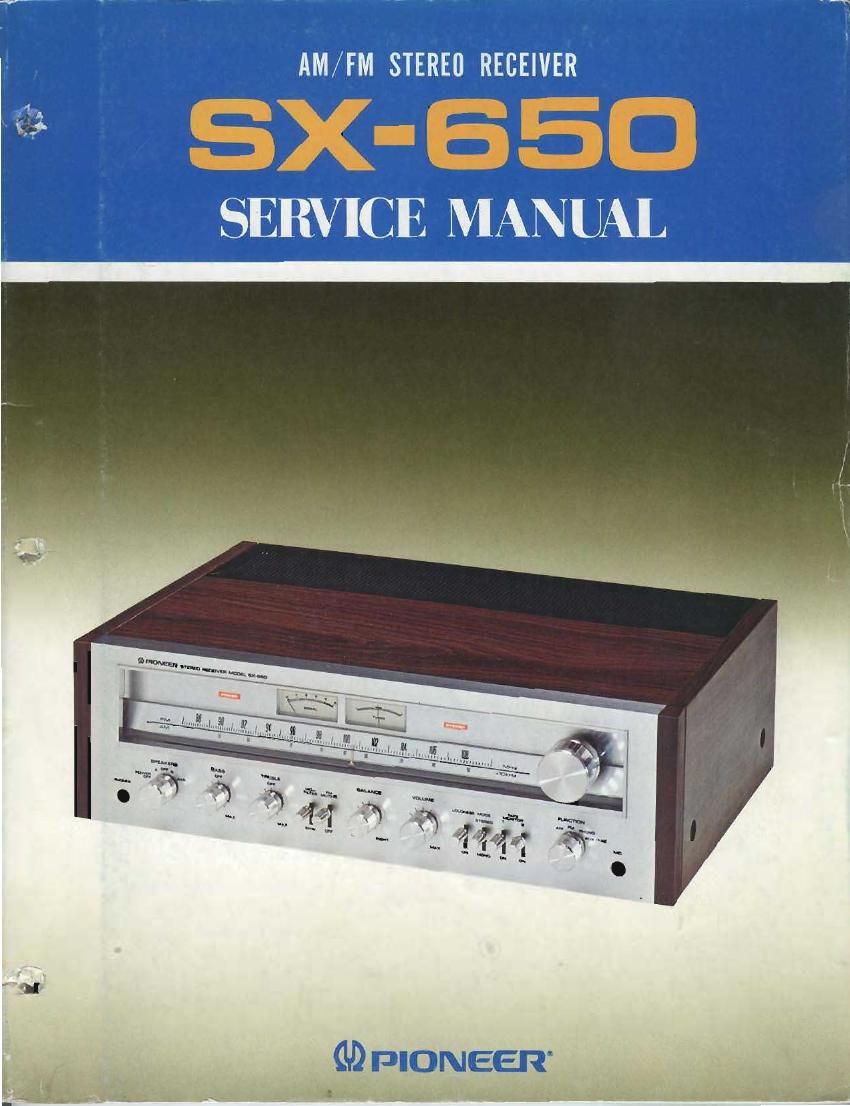

Pioneer sx 650 service manual
This is the 102 pages manual for pioneer sx 650 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer sx 650 service manual (Ocr-read)
Page 2
D
SX-BSO
MODEL SX-650 COMES IN FOUR VERSIONS DISTINGUlSHED AS FOLLOWS:
l
Type Voltagn Remarks
KC 120V CSA (Canadal approved.
KU i20V UL lU s A.) approved,
HG 220V and 240V (Swilchablel SEMKO (Sweden), NEMKO lNorwavl.
DEMKO (Denmark) and El (leandl approved.
5 HOV, 120V, 220V and 240V (Switchable) General export modal
This Service Manual is applicable the model SX-650/KCU.
PWNT
509°>I¢91
CONTENTS
SPECIFICATIONS .................................................... 5
FRONT PANEL FACILITIES ...........................................
CONNECTION DIAGRAM ............................................. 9
CIRCUIT DESCRIPTIONS
4.1 Tuner Section ................................................... 11
4.2 Phono Equalizer Amplifier .......................................... 13
4.3 Microphone Circuit ............................................... 14
4.4 Tone Control ................................................... 14
4.5 Power Amplifier ................................................. 14
4.6 Protection Circuit ............................................... 15
4.7 Power Supply ................................................... 16
BLOCK DIAGRAM .................................................. 17
LEVEL DIAGRAM .................................................. 19
DISASSEMBLY ..................................................... 20
DIAL CORD STRINGING ............................................. 22
PARTS LOCATIONS
9.1 Front Panel View ................................................. 23
9.2 Rear Panel View ................................................. 25
9.3 Top View ....................................................... 27
9.4 Bottom View ................................................... 29
9.5 Front View
