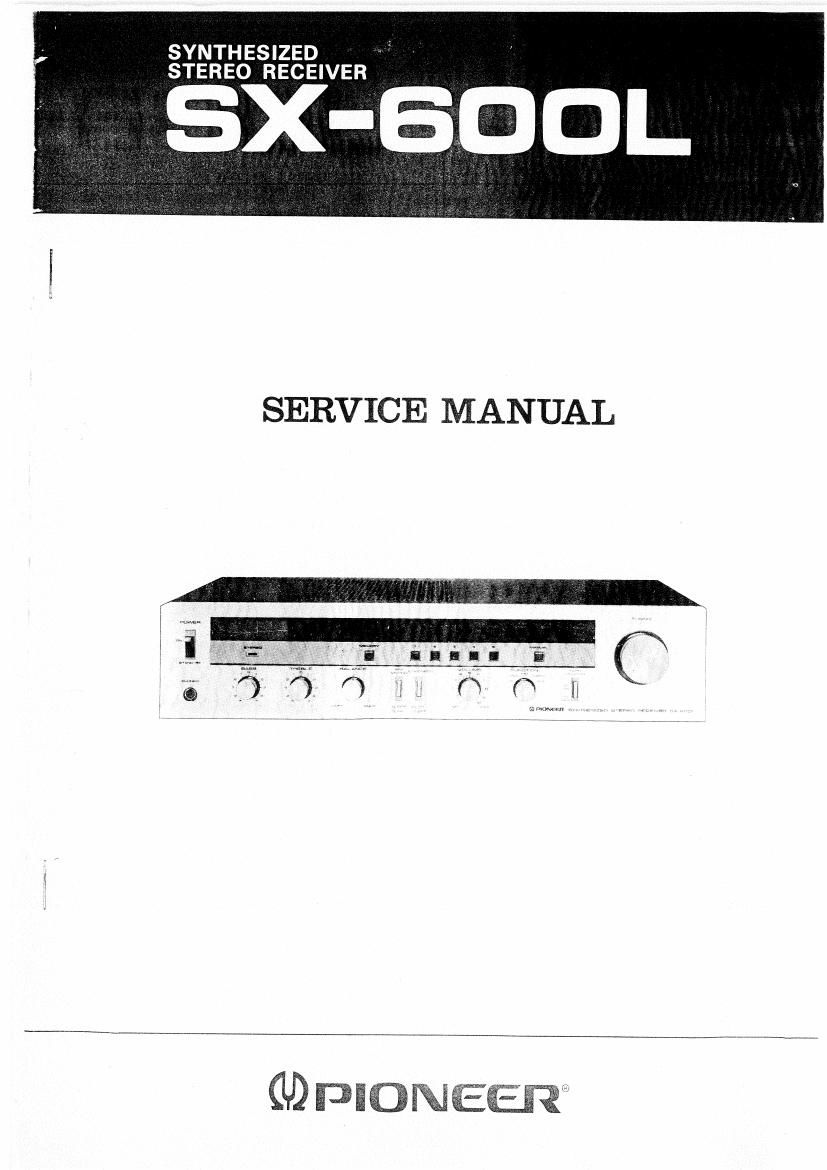

Page 1
SYNTHESIZED ,=
STERE0 RECEIVER
I Sx's-DL
SERVICE MANUAL
Page 2
MODEL SX-GOOL COMES IN TWO VERSIONS DISTINGUISHED AS FOLLOWS:
Type Voltage Remarks
HE 220V and 240V (Selectable) Europe model
HB 220V and 240V (Selectablfl United Kingdom model
o This service manual is applicable to the HE type. When repairing me HB type, please see page 26.
1. SPECIFICATIONS ..................... 3 8. P.C. BOARDS CONNECTION DIAGRAM ...... 16
2. FRONT PANEL FACILITIES .............. 4 9. SCHEMATIC DIAGRAM ................. 19
3. PARTS LOCATION .................... 6 10. ELECTRICAL PARTS LIST ............... 21.
4, BLOCK DIAGRAM .................... 7 11. EXPLODED VIEW ..................... 24
5. CIRCUIT DESCRIPTIONS ............... 8 12. PACKING ........................... 26
6. DIAL CORD STRINGING ................ 12 13. SUPPLEMENTS FOR HB TYPE ............ 26
7. ADJUSTMENTS ....................... 13
Line Voltage Selection Rear panel
Line voltage can be changed with following
steps.
1. Disconnect the AC power cord. F ,/Fuse 2.5A
2. Remove the bonnet cover. EZQ/ (HE type only)
3. Take out the fuse (T 630mA) from the fuse O % a O A 240V position
assembly F a % iZZOV 05m n
4. Re-install the fuse in the correct voltage indi- aslfmbly _ - p O
cation (see Fig. 1).
5. Stick the lme voltage label on the rear panel. mm 630mA)
Part No. Description AEK406
Fig_ l
AAx-193 220v label
AAx-192 240v label
