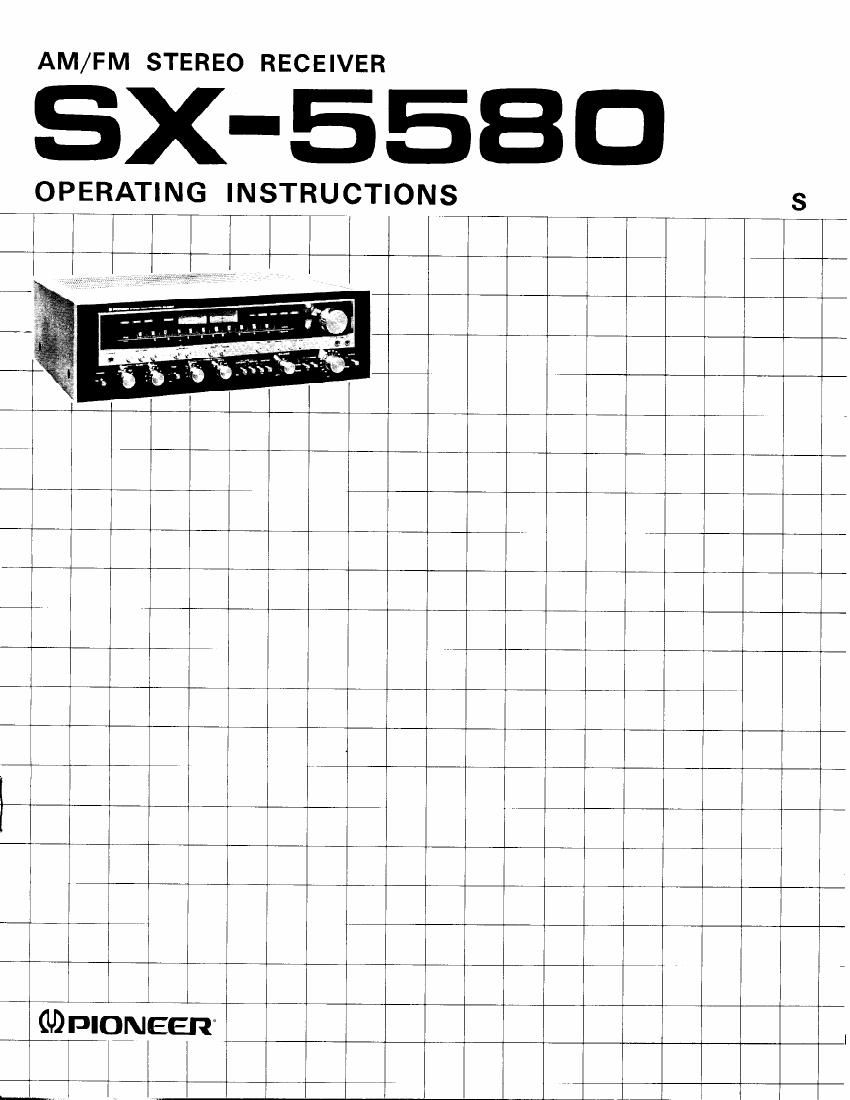

Pioneer sx 5580 owners manual

Page 2

CO N T E NTS

Linc Voltage and fuse ................. 2
Stereo System Composition ............ 2
SX-5580 Features .................... 3
Connection Diagram .................. 4
Connections ........................ 6
Antenna and Ground Connections ....... 8
Front Panel Facilities ................. 10
Prior to Switching Power On ............ 13
FM Reception ...................... 13
AM Reception ..... . ............... 13
Playing Records ..................... 14
Using the AUX Jacks ................. 14
Microphones ........................ 14
Effective Operation .................. 1 5
Tape Deck Operations ................ 16
Adaptor Jacks for Increased Versatility. . . . 17
Employing PRE OUT and POWER IN Jacks .19
Specifications ....................... 20
Conditions Frequently Mistaken For

Malfunction ...................... 22

LINE VOLTAGE AND FUSE

CHANGING LINE VOLTAGE SETTING AND
FUSE

To remove the fuse, turn the fuse cap located on
the line voltage selector in the direction indicated
by the anrow. Then remove the fuse plug from the
unit. Put the fuse plug back so that the proper line
voltage marking can be seen through the cut in the
edge of the plug. Whenever the position of the
selector is changed, check the rating of the fuse. A
5A fuse is to be used for either 220V or 240V
operation and 3 10A fuse rating for 110V or 120V
operation. If the rating of the [use is correct,
replace cap.

FUSE REPLACEMENT

When the fuse blows, remove the fuse cap and
replace the fuse with a new one.

PHILLIPS _\\
SCREWDRIVER @,
a /

\ ,
E FUSE CAP

SOCKET
FUSE PLUG

STEREO SYSTEM COMPOSITION

Tape Deck .
0 Be sure to install reel clamps when using vertically.
c Always keep heads clean.

a Do not neglect recorded tape for long periods.
0 Avoid magnetic fields, \ »\i\1 '

Thick curtain shuts.
out dlrect sunlight.

SX-5580I Keep connecting
cords as short as possible.)

Turntable
0 Protect from vihrations and close dust cover whenever possible
0 Store records vertically and protect from dust and dirt.

Speaker Systems

Rear and side panels of left
and right speakers should have
the same surroundlngs.
(Placing with rear panel against
a wall improve: bass)
Install speakers so that vibra
r tiuns are not transferred di-
rectly to the floor.
l IEmplnv stands or nnnrrate
i blocks with bookshelf type
speakersli

_ (Placing in front of speakers is also effective)

Listening position slightly to the rear of the apex of an equilateral triangle formed with left and right Speakers.

0 Do not place equipment in locations that are unlevel or subject to vibration.
I Allow for good rear panel ventilation of components; avoid humidity and dust.

I Keep equipment away from radiators or other heat sources.
