Pioneer sx 525 brochure

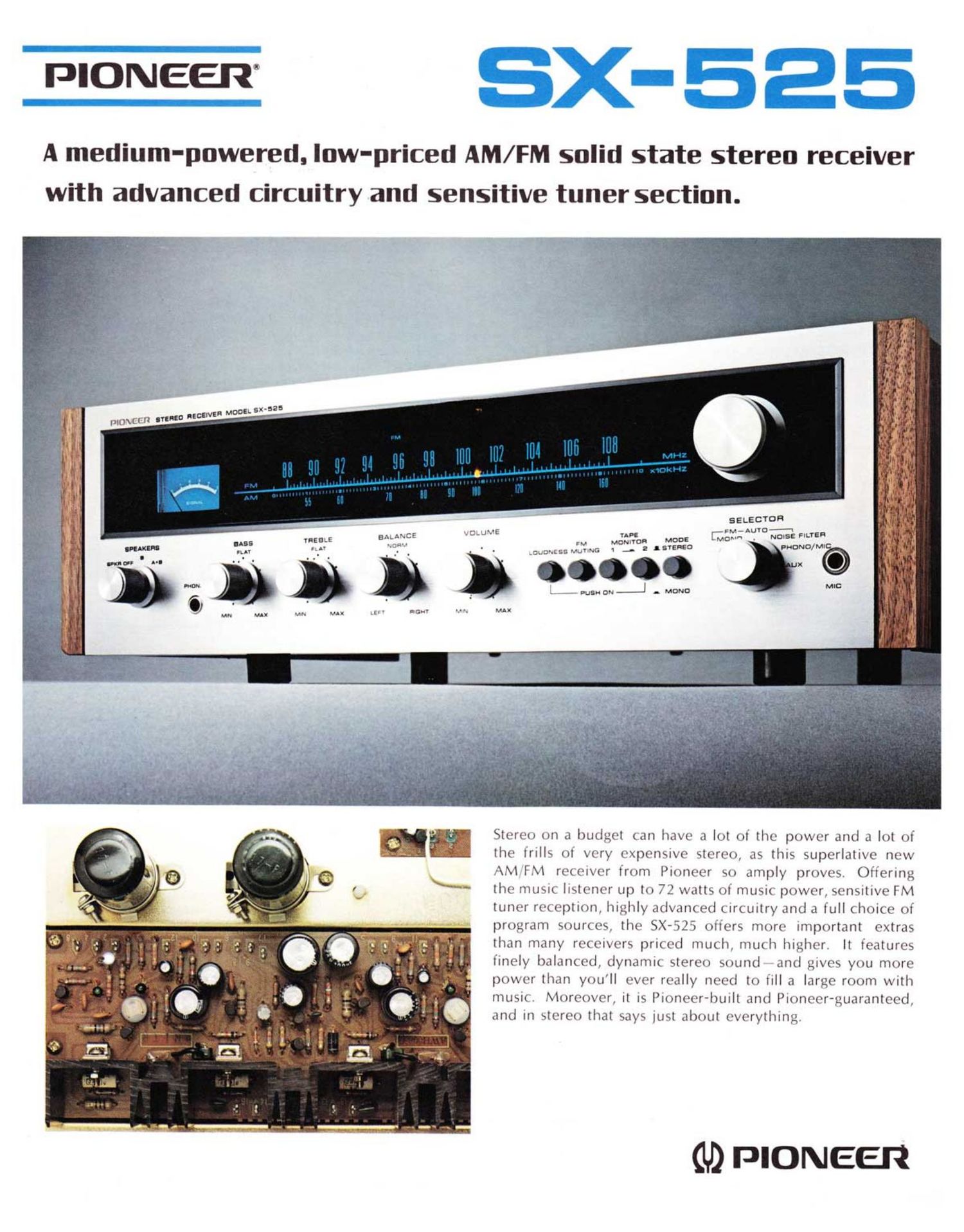

Page 1

PIONEEIT

A medium-powered, low-priced AM/FM solid state stereo receiver

with advanced circuitry and sensitive tuner section.

SELECTDF

. '« r-"V_ AUYD-q YER
":53; am ANCE :M 3:753. MODE we... No.35 FIL M
'v" .L ' . Jummg ,,._,- M; a _. a I 519220 pHoNO/
MIC
. V7 nus» o~ -J - MONO

. .. MAX

Stereo on a budget can have a lot ot the power and a lot ot'
the trrl|\ ot very («pensive Rtor'eo, as this superlative new
AM FM receiver from Pioneer «o amply proves. Offering
the mum; listener up to 72 WdllS ot' musu power, sensrtive FM
tuner rereptron. highly advanred (,Ircurtry and a full choice of
program sources, the SX-il'") MUCH more Important extras.
than many re finely halaneed, dynanm stereo sound and gives you more
power than you'll ever really need to till a large room with
musie Moreover, it Is lu'yneer-hurlt and lumew-guaranteed,
and In >tereo that says rust about everything.

(U) PIONEER

Page 2

SX-EEE

SENSITIVE FM TUNER SECTION

The SX-525 uses modern solid state circuitry throughout its
sensitive FM front end to give you superb FM reception and
tonal quality. An FET (field effect transistor) is used in the front
end to raise sensitivity and image ration while helping to prevent
against irritating cross-modulation. The IF stretch of the front
end is equipped with IC (integrated circuit) and ceramic filters
to improve selectivity and capture ratio. Additionally, a switch-
ing type stereo demodulator is used to ensure fine separation
over the very wide frequency range, while a discriminator am-
plifier assures sharp channel separation.

EFFECTIVE FM MUTING SWITCH

To eliminate undesirable, irritating inter-station noise on FM,
the SX-525 is equipped with an FM muting switch. This circuit
is also equipped with an FET and cuts out useless, too-weak
FM station signals, leaving you with only the sound of high-

LARGE TUNING METER AND LINEAR DIAL SCALE

Station tuning is easier than ever with Pioneer's large tuning
meter and wide linear FM dial scale. The tuning meter is
especially significant in helping to achieve maximum channel
separation and tone quality. The linear dial scale is ideal for
achieving perfect reception and minimum noise and distortion.

SUPREME VERSATILITY

You have a full choice of program sources with the SX-525. All
standard program sources can be connected, iecluding two
turntables, two tape decks --reel to reel or cassette-, an auxiliary
sound source as well as a microphone. Up to two pairs of
speakers can be connected and operated individually or simul-
taneously with the SX-525 to permit easy comparison of speaker
systems or remote speaker installations.

quality stations.

-

SPECIFICATIONS
SEMICONDUCTORS
FETls):

lCls):

Transistors:

Diodes:

FM TUNER SECTION
Frequency Range:
Usable Sensitivity (IHF):
Capture Ratio (IHF):
Selectivity (IHF):
Image Rejection:

IF Rejection:
Spurious Rejection:
AM Suppression:
Signal-to-Noise Ratio:
Harmonic Distortion:

Tuning Indicator:
Muting:

Stereo Separation:

Sub Carrier Suppression:
Noise Filter:

Antenna Input:

AM TUNER SECTION
Frequency Range:

Usable Sensitivity (IHF):
Selectivity (IHF):

Image Rejection:

IF Rejection:
Signal-to-Noise Ratio:
Antenna:

AMPLIFIER SECTION
Music Power Output (IHF):
Continuous Power Ouput:
(each channel driven)

1
2

33
29

87.5 to 108 MHz

2.2_uV

3 dB

More than 45 dB

More than 50 dB (98 MHz)

More than 80 dB (90 MHz)

More than 80 dB (98 MHz)

50 dB

65 dB

Mono: less than 0.6% (100% mod.)
Stereo: less than 0.8% (100% mod.)
Signal strength meter

Switchable to ON-OFF

More than 40 dB (1 KHz)

More than 40 dB

Switchable to ON~OFF

Impedance 300 ohms balanced
and 75 ohms unbalanced

525 to 1,605 KHz

15,!iV

More than 22 dB

More than 45 dB

More than 35 dB

More than 50 d8

Built-in ferrite loopstick antenna

72 watts (4 ohms), 52 watts (8 ohms)
26 watts/'26 watts (4 ohms),
20 watts/20 watts (8 ohms)

Continuous Power Output:
(both channels driven)
Power Output in the range
of 20 to 20,000 Hz:

(both channels driven)
Harmonic Distortion:

Intermodulation Distortion:

Power Bandwidth (IHF):

Frequency Response:
Speakers:
Damping Factor:

Input Sensitivity/Impedance:

Recording Output:

BASS Control:
TREBLE Control:
Equalization Curve:
Loudness Contour:

Hum and Noise (IHF):

MISCELLANEOUS
Power Requirement:

Power Consumption:
Dimensions (overall):

Weight:

NOTE: Specifications and design subject to possible modification without notice.

21-watts+21 watts (4 ohms).
17 watts+17 watts (8 ohms)

13 watts+13 watts (8 ohms, harmonic
distortion less than 1%)

Less than 1% (continuous power output)
Le55 than 0.05% (10 watts/10 watts
output, 8 ohms)

Less than 1% (continuous power output)
Less than 0.2% (10 watts/10 watts
output, 8 ohms)

10 to 45,000 Hz (8 ohms, harmonic
distortion less than 1%)

15 to 30,000 Hz :1 dB

4 to 16 ohms

4O (8 ohms, 1 KHz)

PHONO MAG: 2.7mV/SO Kohms

MIC: 6mV/100 Kohms

AUX: 200mV/7O Kohms

TAPE MONITOR 1, 2: 200mV/7O Kohms
TAPE REC 1.2 (pin jack): 200mV

TAPE REC (DIN connectorz) 30mV

-12 dB, +125 dB/IOO Hz

--8.5 dB, +8 dB/10 KHz

PHONO: RIAA S.T.D.

+115 dB/100 Hz, +6 dB/10 KHz with
volume control set at -40 dB position
PHONO: more than 75 dB

AUX: more than 85 dB

110, 120, 130, 220, 240V (switchable)
(FVZW), 120V 60 Hz (KUW)

120 watts (max)

17%(W) x 5%(H) X 14%(0) inches
450(W) X145(H) x 360(0) mm
Without package: 17 lb 10 02/8 kg
With package: 22 lb 4 02/101 kg

(ID PIONEER

PIONEER ILIOTRONIO CORPORATION / 15-5. 4-chome. OhmoH-Niehi. Ohca-ku. Tokyo 143. Japan
U.S. PIONEER ELECTRONICS CORPORATION / 178 Commerce Road. Carlscedc. New Jersey 07072. U.S.A.
PIONEER ELECTRONIC (EUROPE) N.V. / Noorderlaan BS. 2030 Antwerp. Belgium

20.00008-F-2-72 Prmted in Japan
