Pioneer sx 434 brochure

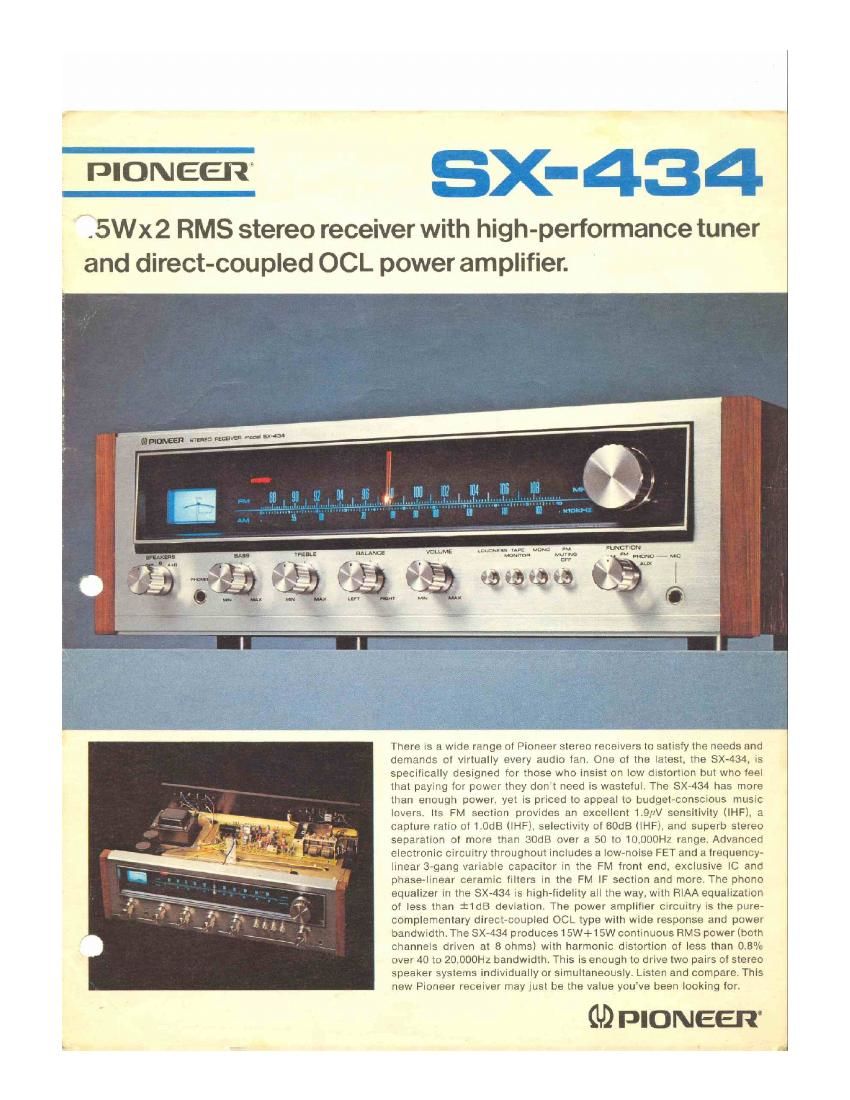

Page 1

PlQNEElT - _ j:

".5sz RMS stereo receiver with high-performance tuner
and direct-coupled OCL power amplifier.

There is a wide range of Pioneer stereo receivers to satisfy the needs and
demands of virtually every audio fan. One of the latest, the SX-434, is
specifically designed for those who insist on low distortion but who feel
that paying for power they don't need is wasteful. The SX-434 has more
than enough power, yet Is priced to appeal to budget-conscious music
lovers. Its FM section provides an excellent 1t9yV sensitivity (lHF), a
capture ratio oi1.DdB UHF), selectiwty ol SUdEl (IHF). and superb stereo
separation of more than 30:18 over a 50 lo 10.000Hz range. Advanced
electronic Circuitry throughout includes a low-noise FET and a frequency-
linear 5-gang variable capacitor in the FM front end, exclusive IC and
phase-linear ceramic filters in the FM IF section and more The phone
equalizer in the SX-434 is high-lidelity all the way, with RIAA equalization
of less than iidB devration The power amplifier circuitry is the pure-
complementary direct-coupled OCL type with wide response and power
bandwidth. The SX-434 produces 1 5W+1 5W continuous RMS power (both
channels driven at 8 ohms) with harmonic distortion at less than 0.8%
over 40 to 20.000Hz bandwidth. This is enough to drive two pairs of stereo
speaker systems individually or simultaneously. Listen and compare. This
new Pioneer receiver may just be the value youve been looking fort

GDPIONEER'

' 1"
