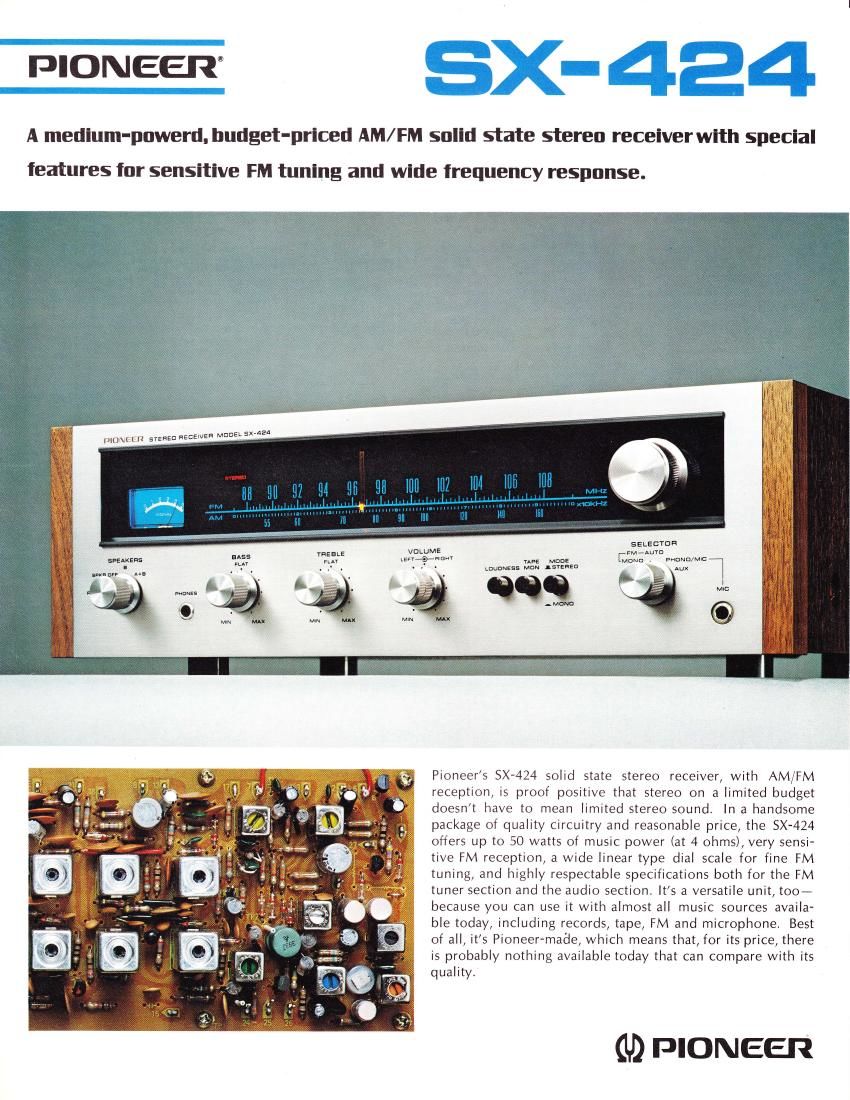

il-424 SENSITIVE FM TUNER SECTION The SX-424 is equipped with very modern solid state circuitry throughout its sensitive FM front end to give you excellent FM reception and tonal quality. An FET (field effect transistor) is used in the front end to improve sensitivity and image ratio while helping to prevent against annoying cross-modulation. An.d there is a three-gang variable capacitor employed to im- prove sensitivity (measured u1 2.31tY IHF) image rejection and spurious rejection. The unit is equipped with a three-stage lF section and time switching-type multiplex section, which ensures a wide frequency response as well as continuous sta- ble operation. Pioneer has also equipped the SX-424 with a large tuning signal meter, to achieve maximum channel separa- tion and tone quality, as well as an extra-wide linear dial scale, the latter ideal for achieving perfect reception and minimum noise and distortion. ADVANCED AUDIO SECTION For total performance throughout the audio section of the SX- 424, Pioneer has used quasi-complementary single-ended push- pull circuitry, a long name for a lot of quality. The result of this kind of circuitry is wide frequency response QO-7O,ffiOHz +3dB), a wide power bandwidth (20-45,000H2), and a high signal to noise ratio. Maximum power output at 4 ohms is up to 50 watts (lHF), while continuous power output at 1KHz, both channels driven is 12 watts *12 watts at B ohms. Both of these performance figures indicate that the SX-424 has more than enough power output to fill a very large music listening room with undistorted sound. SUPREME VERSATILITY The SX-424 is equipped with a loudness switch for natural sound contour at low volume levels, speaker switches for operating up to two sets of speaker systems at three different positions (A, B, A+B), a headphone jack, plus individual bass and treble controls. There are also connection terminals for a turntable, tape deck, one auxiliary input (perhaps for a second, cassette tape deck) and one microphone. The design of the unit is strikingly handsome, and you'll be proud to display it in any room in your home. SPECIFICATIONSSEMICONDUCTORSFET(s):Tran s istors: Diodes: FM TUNER SECTION Frequency Range: Usable Sensitivity (lHF): Capture Ratio (lHF): lmage Rejection: lF Rejection:Spurious Rejection: AM Suppression: Signal-to-Noise Ratio: Harmonic Distortion: Tuning lndicator: Stereo Separation: Sub Carrier Suppression: Antenna lnput: AM TUNER SECTION Frequency Range: Usable Sensitivity (lHF): lmage Rejection: lF Rejection:Si gnal-to-Noise Rati o: Antenna lnput: AUDIO SECTION Music Power Output (lHF): Continuous Power Output: (1 KHz, each channel driven) Continuous Power Output: (1 KHz, both channels driven) NOTE: Specifications and desigh 13021 BB to -l0B MHz 87.5 to 108 MHz (FTZ approved) 2.3 pY 3.s dB More than 50 dB (98 MHz) More than B0 dB (90 MHz) More than 70 dB (98 MHz) 4s dB6s dB Mono: less than 0.6% 0OO% mod.) Stereo: less than O.B% (1OO% mod.) Signal strength type More than 40 dB (1KHz) More than 35 dB f mpedance 300 ohms balanced and 75 ohms unbalanced 525 to 1,605 KHz 15 pYMore than 45 dB (1,000 KHz) More than 35 dB More than 50 dB Built-in f errite loopstick antenna 50 watts (4 ohms), 37 watts (B ohms) 18 watts/18 watts (4 ohms) 14 wattsll4 watts (B ohms) 13 watts*13 watts (4 ohms) 12 watts*12 watts (B ohms) subject to possible modification without Harmonic Distortion: I ntermodul ation Distortion: Power Bandwidth (lHF): Frequency Response: Speakcrs:Damping Factor: I nput Sensitivity/l mpedance: (1 KHz, f or rated output) Recording Output: BASS Control: TREBLE Control: Equalization Curve: Loudness Contour: Hum and Noise (lHF): MISCETTANEOUS Power Requirements: Power Consumption: AC Outlets: Dimensions (overall): Weight: Less than 1% (continuous power output) Less than 1% (conttnuous power output) 20 to 45,000 Hz (B ohms, harmonic distortion less than 17o) 20 to 70,000 Hz +3 dB 4 to -16 ohms 40 (B ohms,lKHz) PHONO MAC: 3 mV/50 Kohms MIC: 6.5 mVi50 Kohms AUX: 1B0mV/100 Kohms TAPE MONITOR: 180 mV/100 Kohms TAPE MONITOR (DlN): lB0mV/100 Kohms TAPE REC (pin jack): 1BOmV TAPE REC (DlN connector): 36mV -9d8, *9dB/100H2 -9d8, *6dB/1oKHz PHONO: RIAA S.T.D. +9.5d8/1 00H2, *5.5d811 OKHz with vol ume control set at -40d8 position PHONO: more than 75dB AUX: more than B5dB 12OV l6OHz,.220V l5O-60H2 or 110V, 12OV , 130V, 220V, 240V (switchable) 50-60H2 90 watts (max.) Switched: 1, unswitched: -1 1 6''Xr(wl x 5% (H) x 1 3''z%.D) i n ch es 431 (W) x 1a6(H) x 347(D)mm Without package: 16lb Bozl7.5kg (120V model), 17lb 6oz17.9kg (FTZ approved) With package: 20lb 14ozl9.5kg (120V model), 21lb 13ozl9.9kg (FTZ approved) CDrrToNeER tlGrNEEF| ELECTFICINIC CC!FIPCIFIATICIN / 15-5,4-clrorne, Ohrnoni-Nishi, Ohta-ku, Tokyo 143, Japan U.S. PIONEEF| ELECTF|ONICS COFIPOF|ATION / 178 Cornrnence Fload, Canlstadr, New Jensey O7O72, U.S.A. PIONEEFI ELECTFIONIC (EUFIOPE) N.V. / Noondenlaan El3, 2O3O Antwenp, Belgiurn notice. SO,OOOA-F-2-72 Printed in Japan
