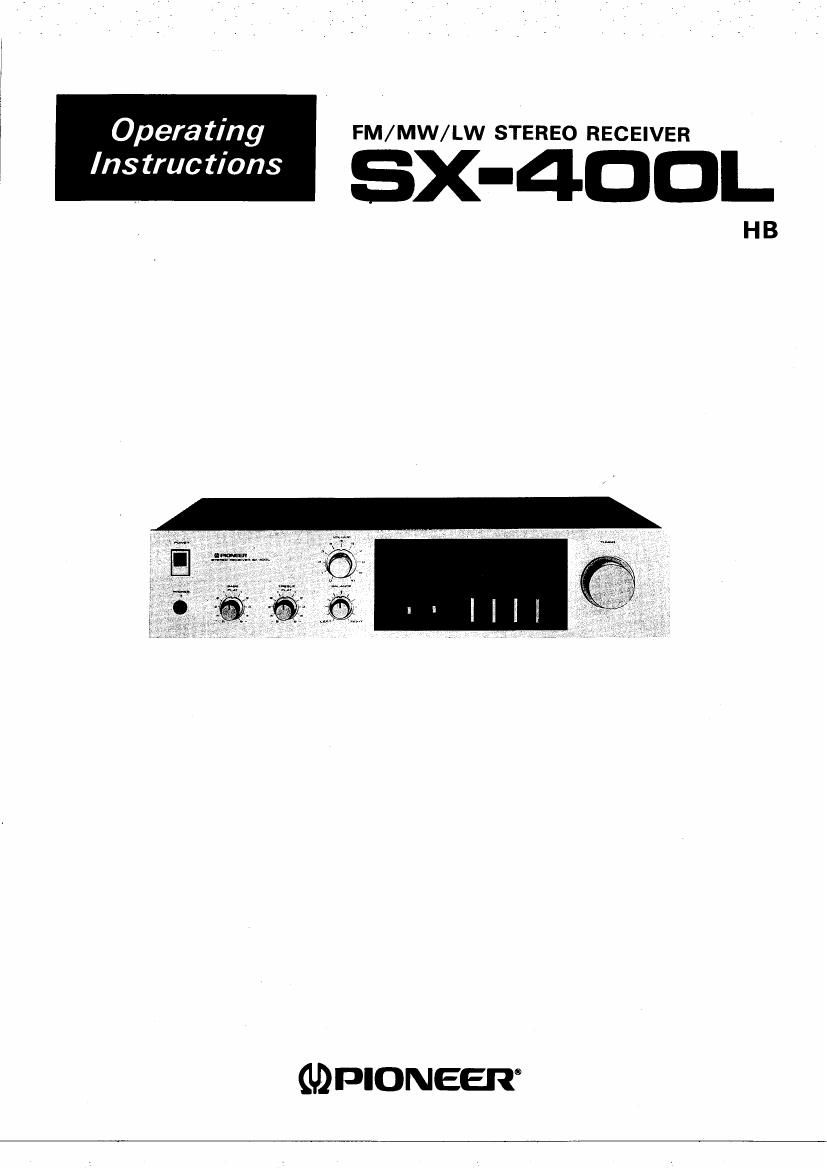

Pioneer sx 400 l owners manual

Page 2

To prevent electric shock, do not remove cover No user service-
able parts inside, refer servicing to qualified service personnel.
Always disconnect all the equipment from the mains supply
when disconnecting the signal leads. The power card should
be connected last, make sure that the power switch is off.
Unplug the set from the wall socket when it is not to be used for
an extended period of time.

FOR USE IN UNITED KINGDOM AND
AUSTRALIA

CAUTION 240V: Mains supply voltage is factory
adjusted at 240V.

IMPORTANT

FOR USE IN UNITED KINGDOM

The wires in this mains lead are coloured in accordance with the
following cord:

Blue: Neutral

Brown: Live
As the colours of the wires in the mains lead of this apparatus
may not correspond with the coloured marking identifying the
terminals in your plug proceed as follows.
The wire which is coloured blue must be connected to the
terminal which is marked with the letter N or coloured black.
The wire which is coloured brown must be connected to the
terminal which is marked with the letter L or coloured red.

Connection Diagram ...................... 3
Front Panel Facilities . . . .................. 4
Operations ............................ 5

Using the TAPE/ADAPTOR Jacks ............. 5

CONTENTS

Antenna and Ground Connections .......... 6
Troubleshooting ......................... 7
Specifications .......................... 8
