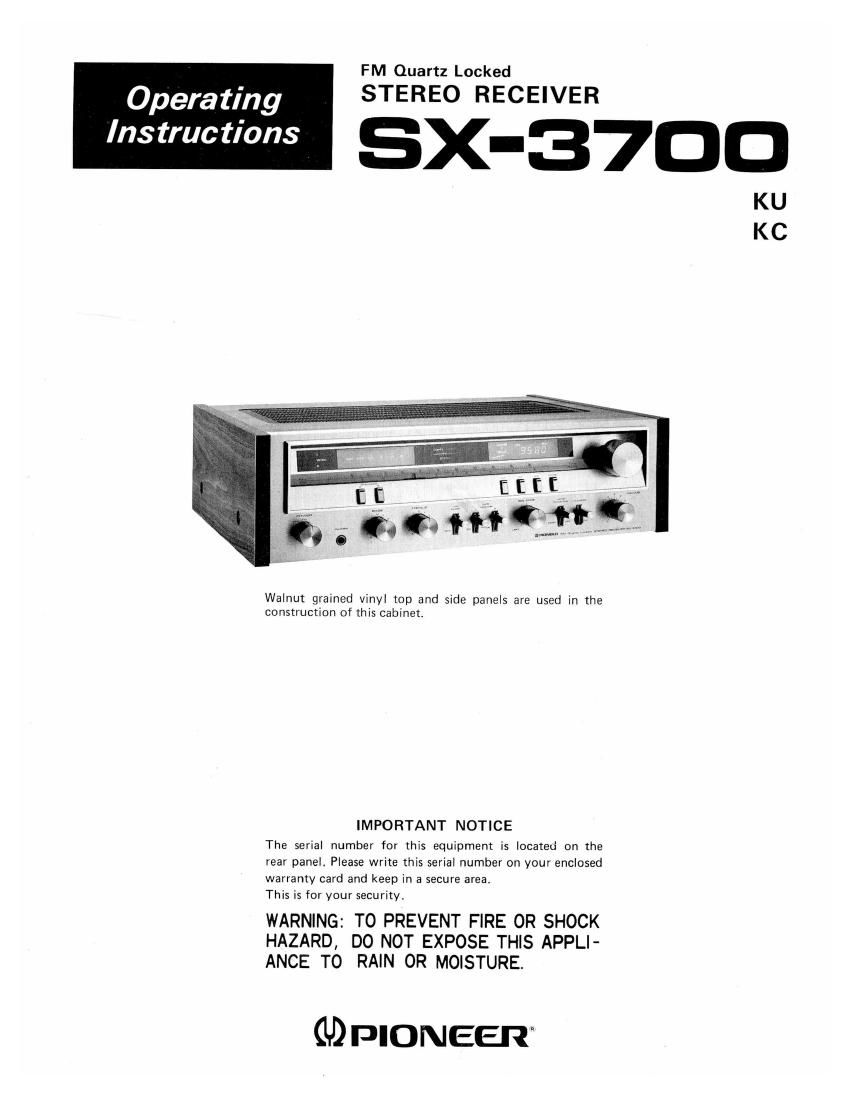

Page 1

FM Quartz Locked

Operating STEREO RECEIVER

Instructions SX-37Do

KC

Walnut grained vinyl top and side panels are used in the
construction of this cabinet.

IMPORTANT NOTICE

The serial number for this equipment is located on the
rear panel. Please write this serial number on your enclosed
warranty card and keep in a secure area.

This is for your security.

WARNING: TO PREVENT FIRE 0R SHOCK
HAZARD, DO NOT EXPOSE THIS APPLI-
ANCE TO RAIN 0R MOISTURE.

GDPIONEER

Page 2

/-SAFETY INSTRUCTIONS-fi

READ INSTRUCTIONS 7 All the safety and operating instruc-
tions should be read before the appliance is operated,

RETAIN INSTRUCTIONS 7 The operating instructions should be
retained for future reference.

HEED WARNING 7 All warnings on the appliance and in the
operating instructions should be adhered to.

FOLLOW INSTRUCTIONS 7 All operating and use instructions
should be followed.

WATER AND MOISTURE 7 The appliance should not be used
near water 7 for example, near a bathtub, washbowl, kitchen
sink, laundry tub, in a wet basement, or near a swimming pool,
etc,

LOCATION 7 The appliance should be installed in a stable loca-
tion.

WALL OR CEILING MOUNTING - The appliance should not
be mounted to a wall or ceiling.

VENTILATION 7 The appliance should be situated so that its
location or position does not interiere with its proper ventila-
tion. For example, the appliance should not be situated on a
bed, sofa, rug, or similar surface that may block the ventilation
openings; or, placed in a built»in installation, such as a book-
case or cabinet that may impede the flow of air through the
ventilation openings.

HEAT 7 The appliance should be situated away from heat sources
such as radiators, heat registers, stoves, or other appliances (in-
cluding amplifiers) that produce heat.

POWER SOURCES 7 The appliance should be connected to a
power supply only of the type described in the operating in-
structions or as marked on the appliance.

GROUNDING - The precautions that should be taken so that
the grounding of an appliance is not defeated.

POWER-CORD PROTECTION 7 Power-supply cords should be
routed so that they are not likely to be walked on or pinched
by items placed upon or against them, paying particular atten-
tion to cords at plugs, convenience receptacles, and the point
where they exit from the appliance.

CLEANING - The appliance should be cleaned only With a polish
ing cloth or a soft dry cloth. Never clean with furniture wax,
benzine, insecticides or other volatile liquids since they may
corrode the cabinet.

POWER LINES 7 An outdoor antenna should be located away
from power lines,

NONUSE PERIODS - The power cord of the appliance should
be unplugged from the outlet when left unused for a long period
of time.

OBJECT AND LIQUID ENTRY 7 Care should be taken so that
objects do not fall and liquids are not spilled into the enclosure
through openings.

DAMAGE REQUIRING SERVICE 7 The appliance should be
serviced by Pioneer authorized service center or qualified service
personnel when:

I The powerAsupply cord or the plug has been damaged;ot

o Objects have fallen, or liquid has been spilled into the appli7

EI'ICE,OI'

a The appliance has been exposed to rain;or

- The appliance does not appear to operate normally or ex-

hibits a marked change in performancemr

a The appliance has been dropped, or the enclosure damaged,

SERVICING 7 The user should not attempt to serwce the appli-
ance beyond that described in the operating instructions. All
other serVIcing should be contacted nearest Pioneer authorized
sen/ice center.

OUTDOOR ANTENNA GROUNDING 7 If an outside antenna
is connected to the antenna terminal, be sure the antenna sys-
tem is grounded so as to provide some protection against volt-
age surges and built up static charges. Section 810 of the Natio-
nal Electrical Code, ANSI/N EPA No, 704978, provides informa
tion with respect to proper grounding of the mast and support-
ing structure, grounding of the lead-in wire to an antenna dis-
charge unit, size of grounding conductors, location of antenna-
discharge unit, connection to grounding electrodes, and require-
ments for the grounding electrode. See Fig. A.

EXAMPLE OF ANTENNA GROUNDING AS
PER NATIONAL ELECTRICAL CODE INSTRUCTIONS

Ground clamp

\

a), b)
Mast
grp:nd 1:)
WW
Antenna To Antenna terminal
discharge \
unit

> Ground clamps

Grounding electrode
H driven 8' into the earth
1: (2.44 meters)

Fig. A

3) Use No. 10 AWG copper or No. 8 AWG aluminum or No.
17 AWG copper-clad steel or bronze wire, or larger as ground
wires for both mast and lead-in.

b) Secure lead-in wire from antenna to antenna discharge unit and
mast ground wire to house with stand-off insulators, spaced
from 4 feet (1.22 meters) to 6 feet (183 meters) apart.

c) Mount antenna discharge unit as closely as possible to where
leadain enters house.
