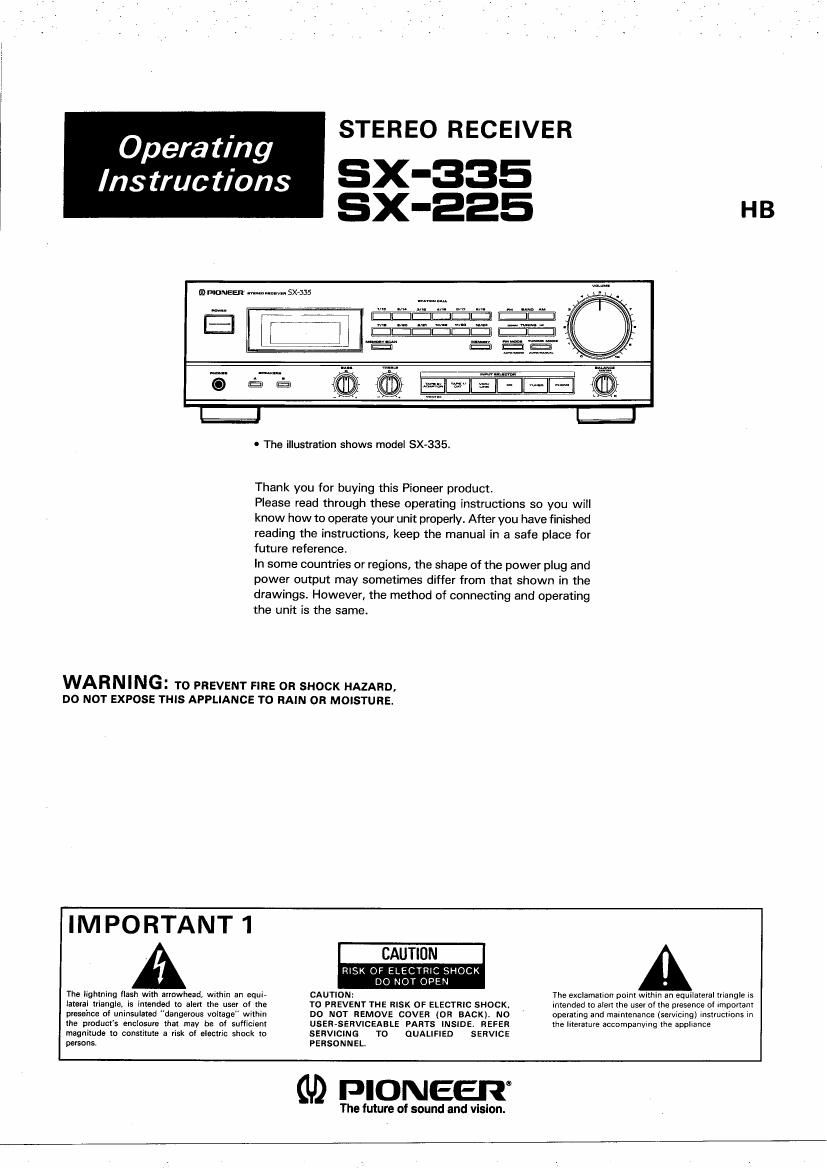

Page 1

Opera ting

Ins truc tions

STEREO RECEIVER

SX-335
sx-aas HB

M FIDNEEI'I' "may. $0335

I The illustration shows model SX-335.

Thank you for buying this Pioneer product.

Please read through these operating instructions so you will
know how to operate your unit properly. After you have finished
reading the instructions, keep the manual in a safe place for
future reference.

In some countries or regions, the shape of the power plug and
power output may sometimes differ from that shown in the
drawings. However, the method of connecting and operating
the unit is the same.

WARNING: TO PREVENT FIRE 0R SHOCK HAZARD,
DO NOT EXPOSE THIS APPLIANCE T0 RAIN 0R MOISTURE.

IM PORTANT 1

The lightning flash with arrowhead, Within an equi-
lateral triangle. is intended to alert the user of the
presence oi uninsulated "dangerous Voltage" within
the product's enclosure that may be of suIiicrent
magnitude to constitute a risk at electric shock to
persons.

CAUTION

RISK OF ELECTRlC SHOCK
DO NOT OFEN

CAUTION: The exclamalicn point within an equilateral triangle is
To PREVENr THE RISK OF ELECTRIC SHOCK. intended to alert the user or the presence ol Important
DO NOT REMOVE COVER (on BACK), No operatmg and maintenancersewicing) Instructionsm
USEH~SERVICEABLE PARTS INSIDE. REFER the literature accompanying the appliance
SERVICING TO QUALIFIED SERVICE
PERSONNEL,

GD PIONEER

The future of sound and Vision.

Page 2

IMPORTANT 2

It the apparatus is lined with AC mains power out.
let(s)4 see REAR PANEL FACILITIES Ior convenient
connection of additional HI-Fl component(s). Make
all connections to the AC ourlet(s) and the signal
terminals first. Connect the plug to the wall socket
last, make sure that the power switch is all. Disconr
user the wall plug when the equipment is not in
(regular) use, e.o when on vacation.

FOR USE IN THE UNITED
KINGDOM

The wires in this mains lead are coloured in accor-
dance with the following code:

Blue' Neutral

Brown: Live

As the colours ol the wires in the mains lead or this
apparatus may not correspond with the coloured
marking ldentifvinq the terminals in your plug proceed
as follows

The wire which is coloured blue must be connected to
the terminal which is marked wrth the letter N or
coloured black

The wire whlch is coloured brown must Us connected
to the terminal which is marked wlrh the letter L or
coloured red.

Equipment sold in the U.K. is not supplied with
a power plug.

WARNING!

Lithium batteries. Danger of explo-
sion. Replacement must be done by
qualified personnel and only by fol-
lowing the instructions given in the
service manual.

ADVARSEL!

Lithiumbatteri. Eksplosionsfare. Uds-
kiftning ma kun foretages of en sag-
kyndig, og som beskrevet i service-
manualen.

VAROITUS!

Litiumparistot. Rajahdysvaara. Valh-
don saa suorittaa ainoastaan asian-
tunteva huoltoteknikko noudattamalla
huolto-ohjeessa annettuja ohjeita.

READ INSTRUCTIONS - All the salety and Operating
instructions should be read before the appllance
is operated.

RETAIN INSTRUCTIONS 7 The operating instructions
should be retained for luture reference.

HEED WARNING - All warnings on the appliance and
in the operating instructions should be adhered to.

FOLLOW INSTRUCTIONS 7 All operating and use Mr
struotlons should be followed.

WATER AND MOISTURE - The appliance should not
be used near water ~ ror example, near a bathtub,
washoawl. kitchen sink laundry tub, in a wet
basement, or near a swimming pool, etc.

LOCATION - The appliance should be installed in a
stable location.

WALL OR CEILING MOUNTING 7 The appliance
should not be mounted to a wall or ceiling
VENTILATION - The appliance should be situated so
that its location or position does not interfere with
its proper ventilation. For examnle, the appliance
should not be sltuated on a bed, sofa, mg, or simi-
lar surlace that may block the ventilation open~
ings; or, placed in a built-in installation, such as
a bookcase or cabinet that may impede the flow

of air through the ventilation openings.

HEAT - The appliance should be situated away lrom
heat sources such as radiators, heat reg ers,
stoves, or other aopllances (including amvllliers)
that produce heat.

POWER SOURCES - The appliance should be con-
nected to a power supply only or the type
described in the operating instructions or as
marked on the appliance.

POWER-CORD PROTECTION - Power-supply cords
should be routed so that they are not likely to be
walked on or pinched by items placed upon or
against them. paying particular attention to cords
at plugs, convenience receptacles, and the point
where they exit from the appliance.

POLARIZATION , If your purchased product is provid.
ed with a polarixed Dower plug, please read the tol-
lowing instructions. This product is equipped With
a polarized alternating current line plug (a plug hav-
ing one blade wider than the other). This plug will
lit into the power outlet only one wevr This is a
saiety leature. ll you are unable to insert the plug
fully into the outlet, try reversing the plug. It the
plug should still fail to iit, contact your electrician
to replace your obsolete outlet, Do not defeat the
saiety purpose of the polarized plug.

CLEANING - The appliance should be cleaned only
with a polishing cloth or a soft dry cloth. Never
clean with furniture wax, benzine, insecticides or
other volatile liquids since they may corrode the
cabinet.

SAFETY INSTRUCTIONS

POWER LINES - An outdoor antenna should be
located away from power lines.

NONUSE PERIODS - The power cord or the appliance
should be unplugged item the outlet when left
unused lot a long period of time.

OBJECT AND LIQUID ENTRV - Care should be taken
so that objects do not tell and liquids are not spilled
into the enclosure through openings.

DAMAGE REQUIRING SERVICE - The appliance

should be serviced by a Pioneer authorized service

center or oualiiied service personnel when:

The powerrsupply cord or the plug has been

damaged: or

Objects have lallen, orliquid has been spilled into

the appliance: or ,

The appliance has been exposed to rain; or

The appliance does riot appear to operate normally

or exhibits a marked change in perlormance; or

o The appliance has been dropped; or the enclosure
damaged.

SERVICING - The user should not attempt to service
the appliance beyond that described in the oper-
ating instructions. Forall other servicing, contact
the nearcst Pioneer authorized service center.

POWER LINES

SERVICE
ENTRANCE
CDNDUCTORSV

OUTDOOR ANTENNA GROUNDING - If an outside

antenna is connected totrie antenna terminal, be
sure the antenna system is grounded so as to pro»
vide some protection against voltage surges and
built up static charges,
In the U.S,A. sectlon 910 of the National Electrir
cal Code, ANSI/NFPA N0. 70-l 934, provides
inloinlatlon with respect to proper grounding of
the mast and supporting structure. grounding of
the lead-in wrre to an antenna discharge unit. size
of grounding conductors. location of antenna dis-
charge urllt. connection to grounding electrodes,
and requirements for the grounding electrode. See
Fig. A,

CART 7 An appliance and cart combination should be
moved with care. Ouick stops, excessive force.
and uneven surlaoes may cause the appliance and
cart combination to overturn.

3] Use No. lo AWG (5,3 mmzl cop-
per, No.8 ch (5,4 mm alumi-
num, No.17 AWG (1.0 mmi
cooperated steel, bronze wire, or
larger as ground wire.
b) Secure antenna read-in and
STAND 0 ground wires to house with stand»
- FF oir insulators spaced from 4 feet
"mum " (1.22 meters) to 6 teet (1.33
meters) apart.
a ANTENNA 0) Mount antenna discharge unit as

we? closely as possible to where lead.
in enters house,
.- ro EXTERNAL d] Use jumper wire not smaller than
TQgfilwfis 0F No.5 ch (13,3 rnml copper, or
reopucr the equivalent, when a separate
GROUND antennagrcunding electrode is
WIRE a,h ANTENNA used.
GROUND - DISCHARGE , .
SERVICE ENHANCE CLAMPS mmc See NEC Section 310.21 lrl.
EQUIPMENT GROUND
WIRE I,b
GROUND
POWER SERVICE CLAMPS
GROUNDING ELECTRODE SYSTEM
(has interior metal water Eltml OPTIONAL ANTENNA

GROUNDING ELEcTRooE

BONDING fie oRlvEN a FEET r244 ml
ri

JUM PER d

rNTo THE EARTH

lF REouiREo air
or " LOCAL conEs sEE
NEc SECTION 8l0~2l «r.

2
