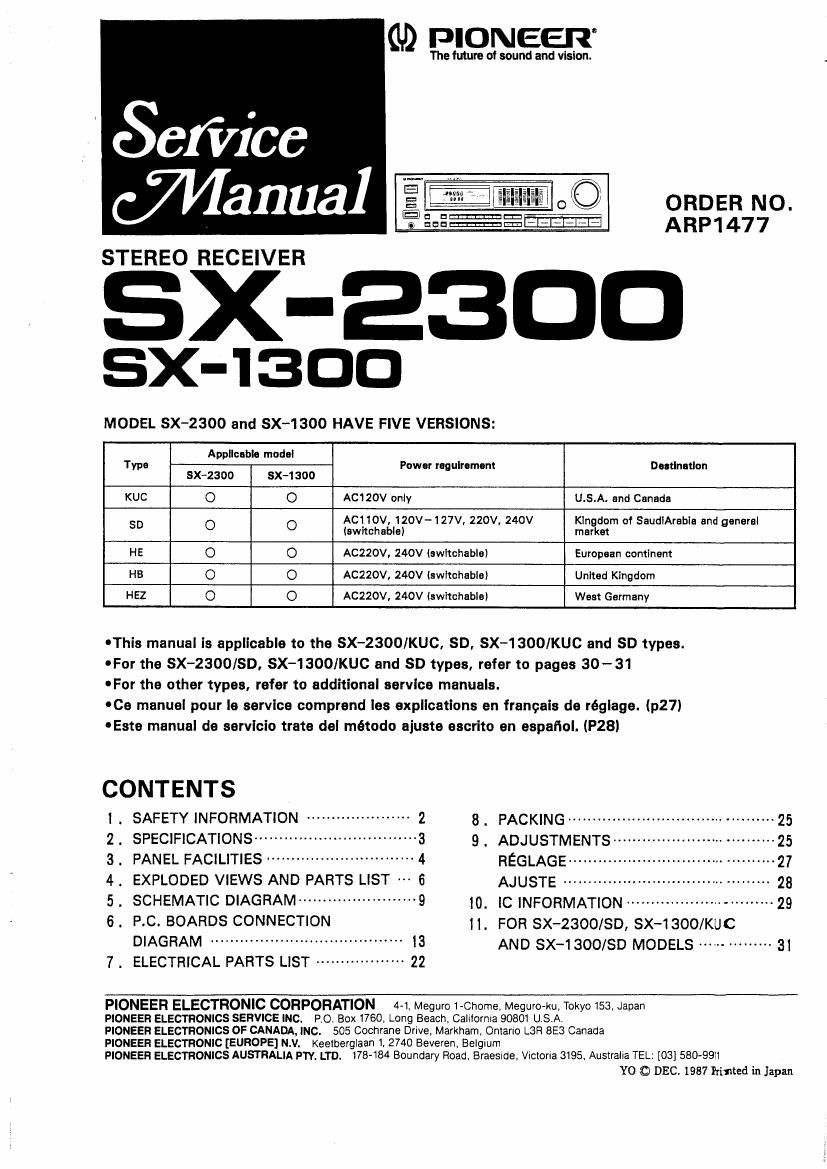

Page 1

0.1) PIONEER

The future of sound and vision.

Sefiice

311113 5 -_- a o\_/' ORDER NO.
_ © Sagmmgfi ARP1477
STEREO RECEIVER
SX- 'l 3 00
MODEL SX-2300 and SX-I 300 HAVE FIVE VERSIONS:
Applicable model
Type Power regulremom Dutinntiun
SX-2300 SX-1300
KUC O O ACIZOV only U.S.A. and Canada
AC1 10V, 120V-127V, 220V. 240V K
SD 0 O (switchable) rnizvgkdaom of SeudiArabIa and general
HE O O AC220V, 240V (switchable) European continem
H8 0 O AC220V, 240V lswlrohabie) Unlied Kingdom
HEZ O O ACZZOV, 240V (swltchable) Wan Germany

0This manual is applicable to the SX-ZSOOIKUC, SD, SX-1300/KUC and SD types.
0For the SX-Z300/SD, SX-1300/KUC and SD types, refer to pages 30-31

OFor the other types, refer to additional service manuals.

'Ce menuel pour Ie service comprend lee explications en frangais da réglage. (p27)
'Este manual de servicio irate del método aiuste escrito an espafiol. (P28)

CONTENTS
I . SAFETY INFORMATION """""""""""""" 2 8 . PACKING .......... 25
2 _ SPECIFICATIONS ................................. 3 9 . ADJUSTMENTS 25
3 . PANEL FACILITIES .............................. 4 REGLAGE---' 27
4. EXPLODED VIEWS AND PARTS LIST 6 AJUSTE ........... 28
5. SCHEMATIC DIAGRAM ------------------------ 9 10_ [c INFORMATION .. . 29
5. P-C- BOARDS CONNECTION ii. FOR sx-2300/so, SX-1300/KUC
DIAGRAM ....................................... '3 AND SX1300/SD MODELS .............. 31
7 . ELECTRICAL PARTS LIST ------------------ 22

PIONEER ELECTRONIC CORPORATION 4-i, Meguro 1-Chome. Meguro»ku, Tokyo 153. Japan

PIONEER ELECTRONICS SERVICE INC. PO. BOX 1760, Long Beach, Calllornla 90801 USA.

PIONEER ELECTRONICS OF CANADA, MC. 505 Cochrane Drive, Markham, Oniario LSR 8E3 Canada

PIONEER ELECTRONIC [EUROPE] N.V. Keetbergiaan 1, 2740 Beveren Belglum

PIONEER ELECTRONICS AUSTRALIA PTY. LTD. 178484 Boundary Road, Braesme. Viciona 3195, Australia TEL: [03] 580-991

Y0 1:) DEC. 1987 Printed in Japan

Page 2

SX-E3DD/ KUC

1. SAFETY INFORMATION

1. SAFETY PRECAUTIONS

The following check should be performed ior the
continued protection of the customer and service tech-
mcnan.

LEAKAGE CURRENT CHECK

Measure leakage current to a known earth ground
(water pipe, conduit, etc.) by connecting a leakage current
tester such as Simpson Model 2292 or equivalent between
the earth ground and all exposed metal parts of the appli-
ance (input/output terminals, screwheads, metal overlays,
control shaft, em. Plug the AC line cord of the appliance
directly into a 120V AC SOHZ ontlet and turn the AC
power switch on. Any current measured must not exceed

0.5mA.
Reading should
Leaiage not be above
Devrce current 0.5mA
under tester

test

Test all
exposed metal
surfaces

2-wire cord

© Also test with -
plug reversed Earth
(Using AC adapter ground
plug as required)

AC Leakage Test

ADVARSEL!
Lithiumbatteri. Eksplosionsfare. Udskifl-

ning rné kun foretages at en sagkyndig,
cg som beskrevet i servicemanualen.

Donne adverse] or angivet pa produktet eller i
brugsvejledningen. Ved udsldftning af lithium
batterieme folges nedenstaende anveisningl
Battericme ma kun udskiftes med batterier af
samme type 0g mrke.

ANY MEASUREMENTS NOT WITHIN THE LIMITS
OUTLINED ABOVE ARE INDICATIVE OF A PO-
TENTIAL SHOCK HAZARD AND MUST BE COR:
RECTED BEFORE RETURNING THE APPLIANCE
TO THE CUSTOMER.

2. PRODUCT SAFETY NOTICE

Many electrical and mechanical parts in the appliance
have special safety related characteristics. These are often
not evident from visual inspection nor the protection
afforded by them necessarily can be obtained by using
replacement components rated for voltage, wattage, etc.
Replacement parts which have these special safety charac-
teristics are identified in this Service Manual.

Electrical components having such features are identified

by marking with a A on the schematics and on the parts
list in this Service Manual.
The use of a substitute replacement component which
dose not have the same safety characteristics as the
PIONEER recommended replacement one, shown in the
parts list in this Service Manual, may create shock, fire,
or other hazards.

Product Safety is continuously under review and new
instructions are issued from time to time. For the latest
information, always consult the current PIONEER Service
Manual. A subscription to, or additional copies of, PIONEER
Service Manual may be obtained at a nominal charge from
PIONEER.

WARNING!

Lithium batteries. Danger of explosion.

Replacement must be done by qualified
personnel and only by following the
instructions given in the service manual.

This warning is stated on the product or in the
operating instructions. When replacing the
lithium batteries, follow the note below.

The batteries must be replaced only by batter-
ies of the same type and manufacture.

VAROITUS!
Litiumparistot. Riiihdysvaara.
Vaihdon saa suorittaa ainoastaan

asiantunteva hualtoteknikko noudat-
tamalla huoltu-ohjeessa annettuja
ohiaita.

Tami varoitus sijaitsee laitteessa tai
kéyttcohjeessa. Noudata litiumparistoja
vaihtaessasi alla olevaa huomautusta.
Paristot on vaihdettava Samantyyppisiin ja
saman tehtaan valmistamiin paristoihin.
