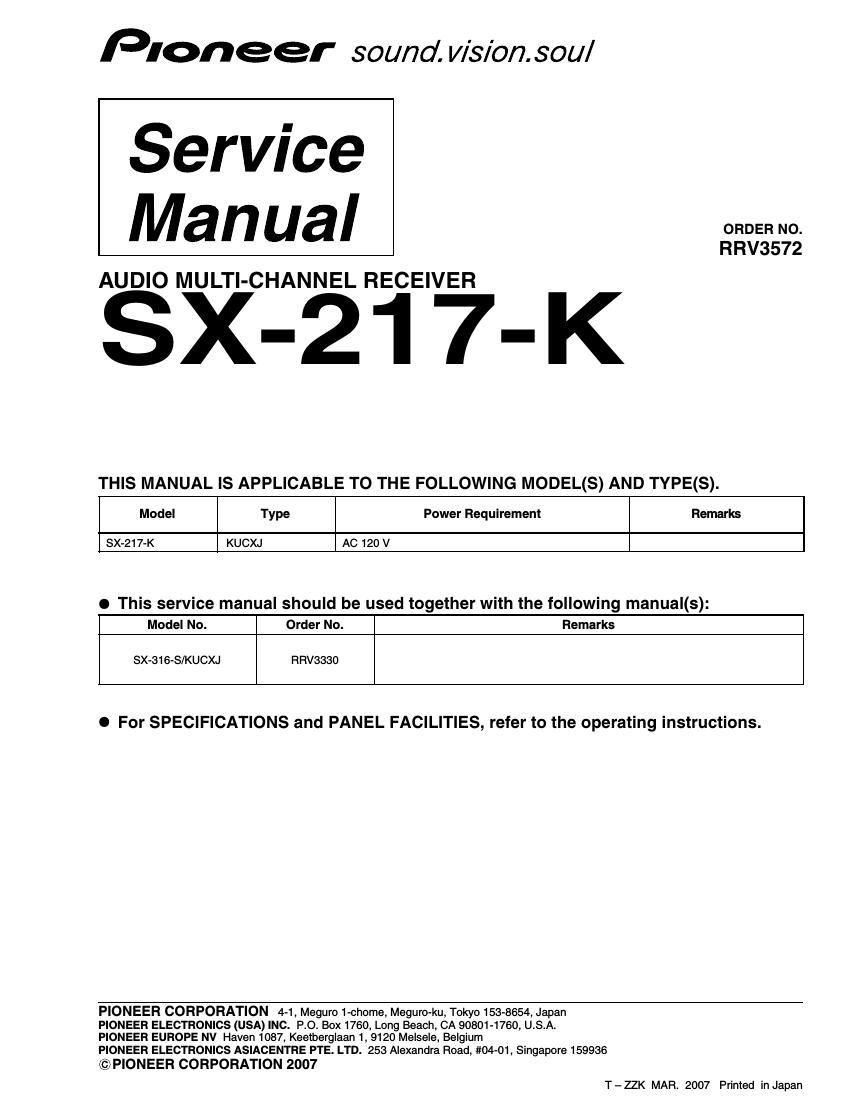

Pioneer sx 217 service manual

Page 1

2 1 23 4 1234 C D F A B E SX-217-K 1. CONTRAST OF MISCELLANEOUS PARTS jpfy For the applying amount of lubricants or glue, follow the instructions in this manual. (In the case of no amount instructions, apply as you think it appropriate.) Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. Reference Nos. indicate the pages and Nos. in the service manual for the base model. NOTES: CONTRAST TABLE SX-217-K/KUCXJ and SX-316-S/KUCXJ are constructed the same except for the following : Ref.Part No. No.Mark Symbol and Description SX-316-S SX-217-KRemarks /KUCXJ /KUCXJ PACKING SECTION P7- 6 Operating Instructions (English/French) XRE3113 XRE3165 P7-15 Packing Case XHD3586 XHD3735 EXTERIOR SECTION P9-24 R Panel XNC3420 XNC3529 P9-32 Bonnet XZN3184 XZN3183 FRONT PANEL SECTION P11- 6 JOG Knob XAB3048 XAB3052 P11- 7 VOL Knob XAB3051 XAB3053 P11- 8 STDBY BTN XAD3203 XAD3202 P11-10 NSP F Panel Assy XXG3257 XXG3316 P11-11 Tuner BTN XAD3248 XAD3230 P11-12 SUB BTN XAD3249 XAD3231 P11-13 FUNC BTN XAD3250 XAD3232 P11-14 Listen BTN XAD3251 XAD3233 P11-15 JOG Button XAD3252 XAD3240 P11-16 PIONEER Badge VAM1129 XAM3006 P11-17 FRT Panel XMB3236 XMB3283
