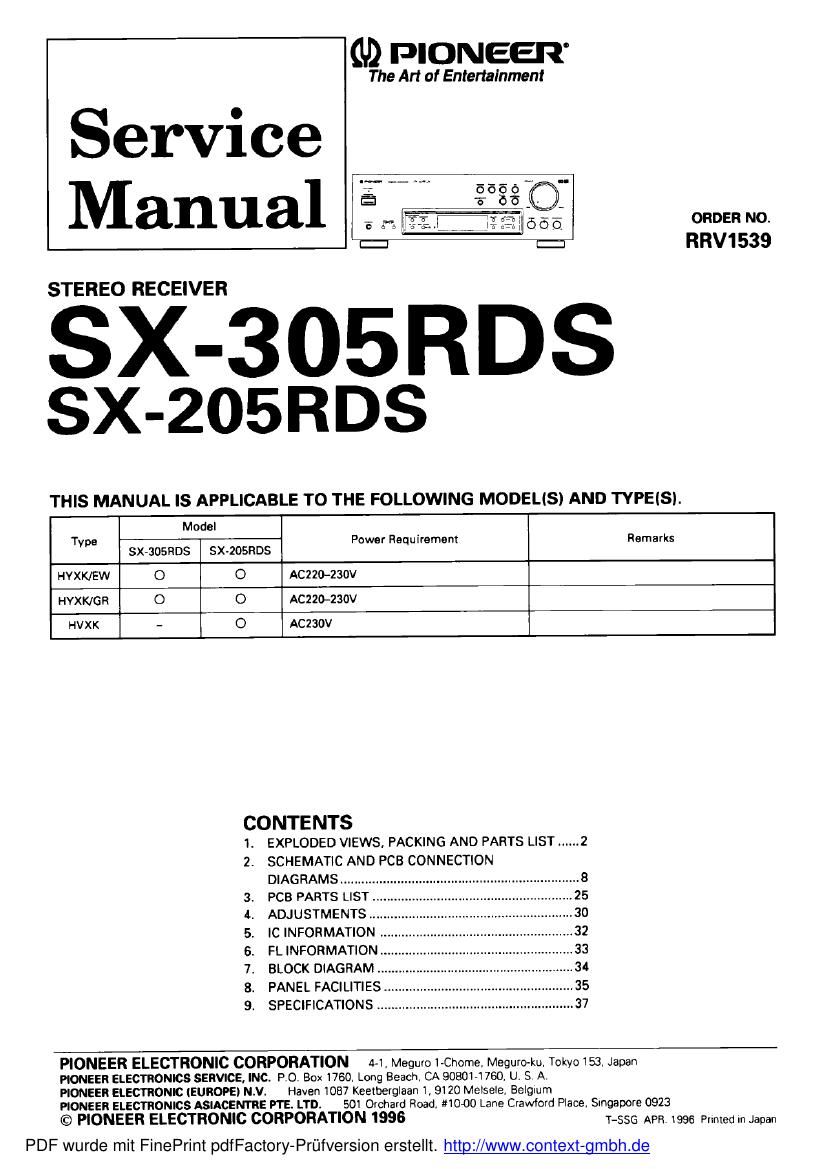

(ID PIONEER

The Art of Entertainment

Service
Manual

ORDER NO.
RRV1 539
STEREO RECEIVER
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODELIS) AND TYPEISI.
Model
Type Power Requirement Remarks
SXA305RDS SXA205RDS
HVXK/EW O O AC220-23OV
HYXK/GR O O AC220-230V
HVXK - O ACZSOV
CONTENTS
I EXPLODED VIEWS, PACKING AND PARTS LIST ...... 2
2. SCHEMATIC AND PCB CONNECTION
DIAGRAMS ...............
3. PCB PARTS LIST.
4. ADJUSTMENTS ..
5. IC INFORMATION
6. FL INFORMATION
7. BLOCK DIAGRAM
8. PANEL FACILITIES ..
9. SPECIFICATIONS
PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome. Meguro-ku, Tokyo 153. Japan
PIONEER ELECTRONICS SERVICE, INC. P O, Box I760, Long Beach. CA 908014760 U. S, A,
PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087 Keelberglaan 1, 9120 Melsele, Belqum
PIONEER ELECTRONICS ASIACENTRE PTE. LTD 501 Ovchard Road, 0-00 Lane Crawford Piace. Singapore 0923
© PIONEER ELECTRONIC CORPORATION 1996 7-555 APR 1996 pnmed m Japan

PDF wurde mit FinePrint pdfFactory-Prflfversion erstellt. http://wwwcontext-gmbh.de

Page 2

SX-305RDS, SX-205RDS

1. EXPLODED VIEWS, PACKING AND PARTS LIST

NOTES:

' Pans marked by "NSF" are generally unavailable because they are not in our Minter Spare Parts List.

' The A markfaund on same component parts indicates the importance of the safety factor of the parts. Therefore. when replacing, be sure
to use parts of identical designation.

' Parts marked by " G " are not always kept in stock Their delivery time may be longer than usual or they may be unavailable.

1.1 PACKING

I CONTRAST OF SX-305RDSIHVXK/EW, HVXK/GR. SX-ZOSRDSIHYXKIEW, HVXK/GR AND HVXK
SX-305RDS/HYXK/EW, HYXK/GR. SX-ZOSRDS/HYXK/EW, HYXK/GR and HVXK have the same construction except for the following:

Part No.
Merit No. Symbol at Description SX-305RDS SX'ZOSRDS Remarks
HYXK/EW HYXKIGR HVXK/EW HVXK/GR HVXK

1 Packing case AHD7270 AHD7270 AHD7266 AHD7266 AHD7266

7 Operating instructions ARE7062 Not used ARE7062 Not Used Not used
(English/French/Getman/
ltalian/Swedish/Spanish/
Portuguese)

7 Operating instructions Not used ARC7106 Not used ARC7106 Not used
(German)

7 Operating instructions Not used Not used Not used Not used ARB7068
(English)

I PARTS LIST FOR SX-305RDSIHYXKIEW

Merit No. Description Ports No.
1 Packing case AHD7Z70
2 Front pad AHA7I15
3 Rear pad AHA7116
NSP 4 Dry cell batteries (ROP. AA) VEM-Ol 3
5 Remote control unit AXD7086
(CU 6 Battery lid AZA7123
7 Operating instntctions ARE7062
(English/French/Gennanl
ltalian/Dutch/Swedish/
Spanish/Portuguese)
8 Loop antenna assy ATB7006
9 FNI antenna ADH7002
10 Packing sheet AHGI 2l 5
ll Serial sheet AAXISZS
(Warranty card and rear panel)
NSP l2 Warranty card ARY70|0
2
