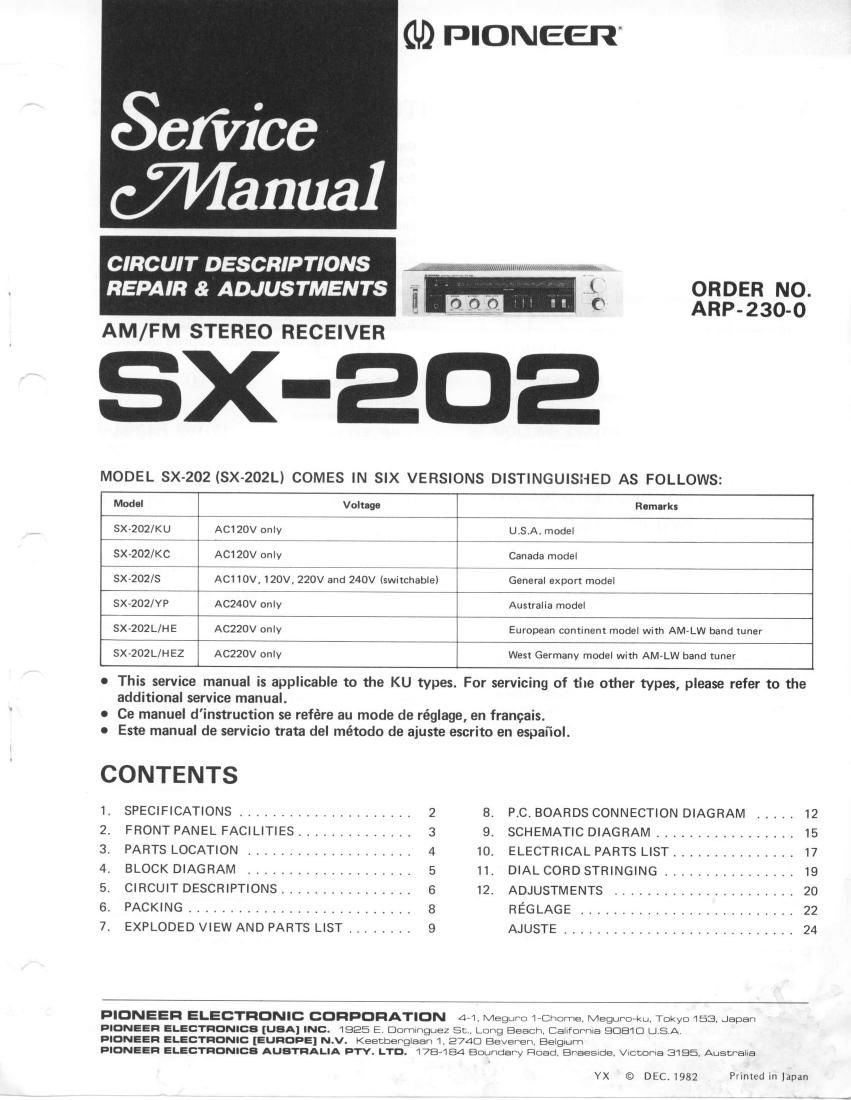

Pioneer sx 202 service manual
This is the 21 pages manual for pioneer sx 202 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer sx 202 service manual (Ocr-read)
Page 1
1. SPECIFICATIONS Amplifier Section Continuous Average Power 0utput is 25 watts* per channel, min., at 8 ohms from 40Hertz to 20,000 Hertz with no more than 0.3%o tolal harmonic distortion. Total Harmonic Distortion (40 Hertz to 20,000 Hertz, 8 ohms, from TAPE) continuous rated power output No more than 0.3% 12.5 watts per channel power output No more than 0.15% No more than O.2o/" Intermodulation Distortion (50 Hertz:7,000 Hertz = 4: 1, 8 ohms, fror;'r AUX) continuous rated power output No more than 0.3% Damping Factor (1 kHz,8 ohms) 22 I nput (Sensitivity/l mpedance) PHONO .....2.5mV/5Okilohms TAPE PLAY ' 150 mV/50 kilohms Phono Overload Level (T.H.D.0.1%, 1,000H2) PHONO . . 150mV Output Level TAPE REC . 150 mV SPEAKER .... A, B,AseriesB.off Frequency Response PHONO (RIAA Equalization) . 30Hz to 20,000H2t0'5dB TAPE PLAY .... l5Hzto50,000Hz+ldB Tone Control BASS . r9dB (100H2) TREBLE ... rgdB(10kHz) Loudness frntour (Volum control set at-40d8 position) . . +8dB (100H2), +6dB (10,000H2) Hum and Noise (lHF, short circuited, A network) PHONOMM.. .....71d8 TAPE PLAY ...97d8 FM Tuner Section *UsableSensitivity ...10.7dBf (0.9pV) 50dB Ouieting Sensitivity **MONO ....15.3d8f (1.6pV) STEREO .37.6d8f (21pYl Signal-to-Noise Ratio MONO ....75d8(at85dBf) STEREO 70dB (at 85dBf) Distortion (at 65dBf) MONO 1kHz. 'O'3Yo STEREO lkHz. .'0.67o 1 watt per channel power output CaptureRatio . ..2.ft8 Alternate Channel Selectivity (400kHz) . 50dB Stereo Separation (lkHz) . 35dB Frequency Response . . 30Hz to 15kHz,1! [ oa SpuriousResponseRatio. ......70d8 lmageResponseRatio ...45d8 lF ResponseRatio. ....100d8 AM SuppressionRatio ...45d8 SubcarrierProductRatio. ......31d8 Muting Threshold .27dBt (6.3PV) Antenna lnput 300 ohms balanced, 75 ohms unbalanced AM Tuner Section Sensitivity lHF, Loop antenna 32OtN lm lHF, Ext, antenna 30pV Selectivity .....25dB Signal-to-NoiseRatio ....43d8 lmageResponseRatio ....40d8 lF ResponseRatio. ...'45dB Antenna AM LooP Antenna Miscellaneous Power Requirements . , AC 120V, 60Hz Power Consumption . . . 125 Watts(UL), 150 VA(CSA) Dimensions . . . . 420(W)x98(Hl x214(D) mm 16-9/16(W) X 3-718(H) X 8-7116(D) in Weight (without package) . . . 4.3 kg (9lb 8 oz) Furnished Parts FMT-typeAntenna .....1 AM Loop Antenna 1 Operating Instructions 1 *Measured pursuant to the Federal Trade Commission's Trade Regulation rule on Povnr Output Claims for Amplifier. *'FM muting functions with this unit when the signals are weak. The unit's internal wires are therefore treated so that the signals ara not muted when the sensitiviry is measured. NOTE: Specifications and design subiect to possible modification without notice,
Page 2
2. FRONT PANEL FACILITIES O PowER swtrcH Push this to s1^ritch on and off the unit's power. Power is supplied at the depresed ( - ) switch position (ON) and turned off at the released (I) position (OFF). @ HEADPHoNE JAcK Connect the plug on the stereo headphones to this jack when listening to sound through headphones. @ ToNE coNTRoLs BASS : The bass is increased when this control is rotated clockwise from the center position and reduced when rotated counterclockwise. TREBLE : The treble is increased when this control is rotatd clockwise from the center position and reduced when rotated counterclockwise. @ BALANcE coNTRoL This is normally kept at its center position. lt is rotated when the volume of sound delivered through the left and right channels of the speakers or headphones differs. The right channel volume is reduced when the control is rotatd toward the LEFT from the center position while the left channel volume is reduced when it is rotated toward the RIGHT. O FuNcrtoN swtrcHEs PHONO : Press when listening to records. FM : Press when listening to FM broadcasts. AM : Press when listening to AM broadcasts. @ TAPE (ADPT) SWITcH This is depresed when using a tape deck or adaptor unit connected to the rear panel TAPE/ADAPTOR jacks. @ LOUDNESS SWITcH Depress this switch to the ON position when listening to sound at a low level of volume. This will enhance the bass and treble and give more life to the sound even at a low volume. @ voLUME coNTRoL Use this to adjust the volume of the sound delivered through the speakers or headphones. The volume is increased when this control is rotated clockwise from the minimum "0" position. @ TUNING INDIcAToR (TUNING) This lights up to indicate that an FM, AM station has been tuned in. @ srEREo tNDtcAToR (srEREo) This lights up automatically when an FM station broad- casting in stereo has been tuned in. @ SPEAKERS swrrcHEs These are used to select the speakers through which you will listen to the sound. The selected speakers are now working. A: The sound is heard from the speakers connected to the speaker A terminals on the rear panel. B: The sound is heard from the speakers connected to the speaker B terminals on the rear panel. No sound will be heard when SPEAKERS A and B switches are both released. This is the position at which the sound can be heard through the headphones. NOTE:No sund will be heard through the geakers when both the A and B switches are depressed if only one et of speakerc has been connected to either the A or B SPEAKERS terminals. @ FREoUENcY scALE This indicates the frequency of the broadcasting station (FM, AM). The top level figures (88 - 108) indicate the FM band. The bottom level figures (55 - 1601 indicate the AM band. @ TUNTNG KNoB Rotate this knob to pick up stations (FM, AM). @ PowER tNDtcAToR/DtAL potNTER r6" L;N t';K t;K -IFUNCTIONl-*'-' L FI-EI-E
