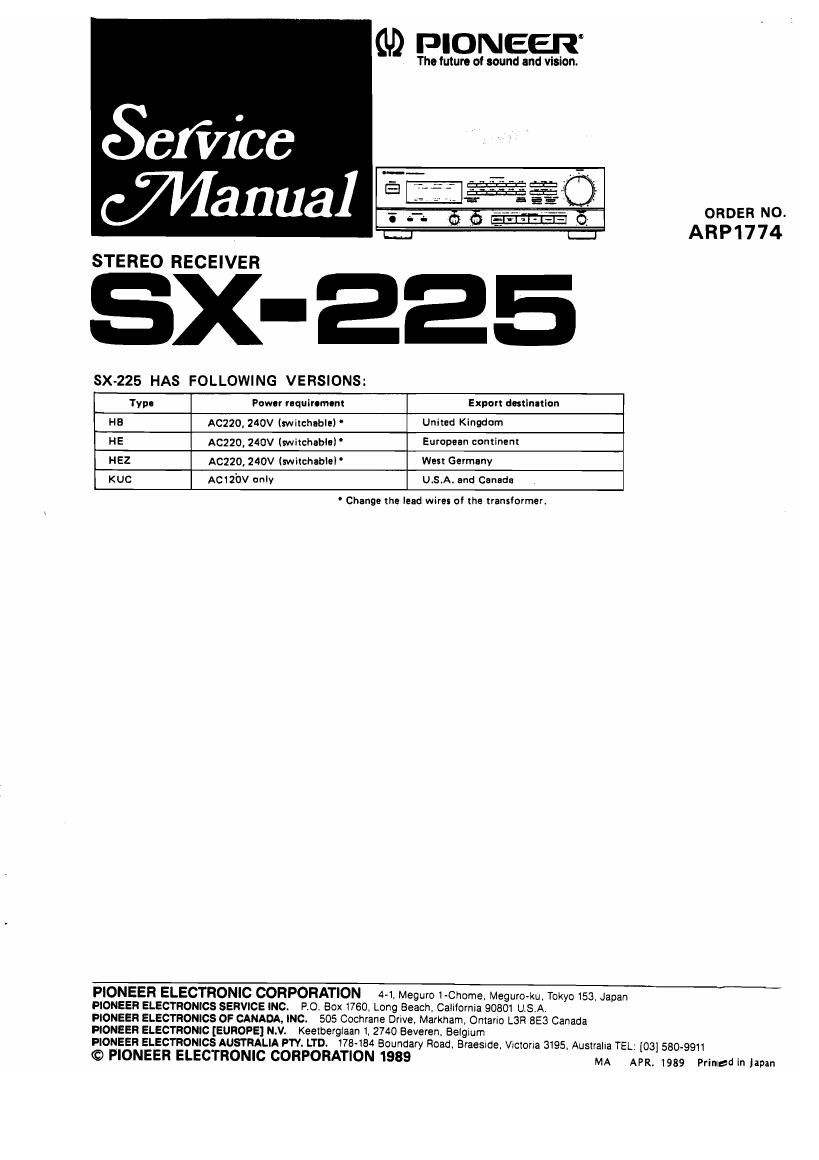

Pioneer SX 225 Service Manual

Page 1

GD PIONEFJT

The Iuture of sound and vision.

efiice

Wanna] . '. ",5
ARP1774

STEREO RECEIVER

SX- 225

SX-225 HAS FOLLOWING VERSIONS:

Typ- Power vaquiumim Expon dutinulon
H8 A0220, 240V (switchable) " Unixud Kingdom
HE M2220, 240V (Mitchabm " Europuan continent
HEZ ACZZO, 240V (switchaMeI West Germany
KUC Ac12ov only USA. and Canada

" Change (h: lead wire: OI the transformer.

PIONEER ELECTRONIC CORPORATION 4-1. Meguro 1-Chome. MegurO-kuI Tokyo 153, Japan

PIONEER ELECTRONICS SERVICE INC. FD. BOX 1760 Long Beach, Callfomia 90801 USA.

PIONEER ELECTRONICS OF CANADA, INC. 505 Cochrane Dnve, Markham, Ontario L3H BEG Canada

PIONEER ELECTRONIC [EUROPE] N.V. Keetberglaan 1, 2740 Beveren, BeIgium

PIONEER ELECTRONICS AUSTRALIA PTY. LTD. 178-184 Boundary Road, BraaSIde. Vchona 3195. AustraIIa TEL: [03} 560-9911

© PIONEER ELECTRONIC CORPORATION 1939 MA APR. 1989 mm in ,W

Page 2

fl

1. SAFETY INFORMATION

1.SAFETY PRECAUTIONS

The following check should be performed for the
continued protection of the customer and service tech-
nician.
LEAKAGE CURRENT CHECK

Measure leakage current to a known earth ground
(water pipe, conduit, etc.) by connecting a leakage current
tester such as Simpson Model 229-2 or equivalent between
the earth ground and all exposed metal parts of the appli-
ance (input/output terminals, screwheads. metal overlays,
control shaft, eth. Plug the AC line cord of the appliance
directly into a 120V AC 60H: outlet and turn the AC
power switch on. Any current measured must not exceed
0.5mA.

A- FIeading should

not be above
0.5mA

o
Leakage
cu rrent
tester

Device
under

test

Test III
exposed metal
surfaces

2wire cord

C

@ Also test with .
plug reversed Earth
(Using AC adapter ground
plug as required)

AC Leakage Test

ADVARSEL!
thhiumbatteri. Eksplosicnsfare. Udskitt-

ning ma kun foretages at an sagkyndig,
og som beskrevet i servicemanualen.

Denna advarscl or angivet pa produktet cller i
brugsvejledningcn. Ved udskiftning af lithium
batterieme folgcs nedenstéende anveisning.
Batterieme mé kun udskiftes med batterier at
samme type 0g mzcrkc.

ANY MEASUREMENTS NOT WITHIN THE LIMITS
OUTLINED ABOVE ARE INDICATIVE OF A PO-
TENTIAL SHOCK HAZARD AND MUST BE COR-
RECTED BEFORE RETURNING THE APPLIANCE
TO THE CUSTOMER.

2. PRODUCT SAFETY NOTICE

Many electrical and mechanical pans in the appliance
have special safety related characteristics. These are often
not evident from visual inspection nor the protection
afforded by them necessarily can be obtained by using
replacement components rated for voltage, wattage, etc.
Replacement parts which have these special safety charac-
teristics are identified in this Service Manual.

Electrical components having such features are identified

by marking with a Axon the schematics and on the parts
list in this Service Manual.
The use of a substitute replacement component which
dose not have the same safety characteristit: as the
PIONEER recommended replacement one, shown in the
parts list in this Service Manual, may create shock, fire,
or other hazards.

Product Safety is continuously under review and new
instructions are issued from time to time. For the latest
information, always consult the current PIONEER Service
Manual. A subscription to, or additional copies of, PIONEER
Service Manual may be obtained at a nominal charge from
PIONEERr

WARNING!

Lithium batteries. Danger of explosion.

Replacement must be done by qualified
personnel and only by following the
instructions given in the service manual.

This warning is stated on the product or in the
operating instructions. When replacing the
lithium batteries, follow the note below

The batteries must be replaced only by batter-
ies of the same type and manufacture.

VAROITUS!
Litiumparistot. Rajahdysvaara.
Vaihdon saa suorittaa ainoastaan

asiantunteva huoltoteknikko noudat-
tamalla huolto-ohjeessa annettuja
ohieita.

Tami varoitus sijaitsee laitteessa tai
kayfioohjeessa. Noudata litiumparistoja
vaihtaessasi alla olevaa huomautusta.
Paristot on vaihdettava samantyyppisiin ja
saman tehtaan valmistamiin paristoihin.
