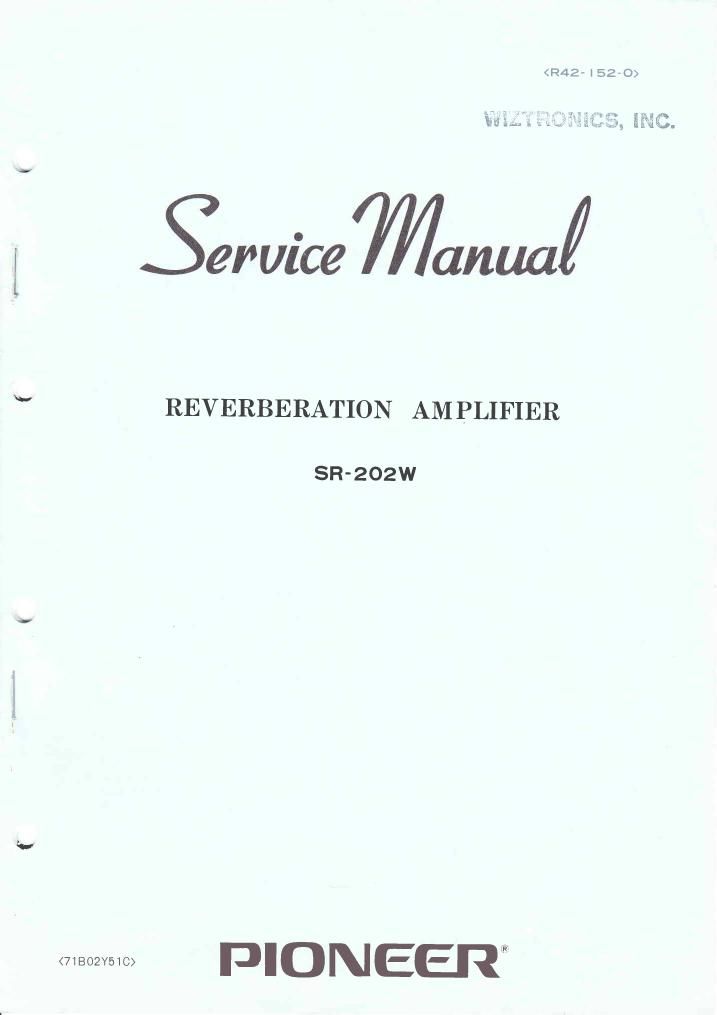

Pioneer sr 202 w service manual

Page 2

/r\

SR-EDEW

SPECIFICATIONS

SEMICONDUCTORS
Transistors ................... 10
Diodes ...................... 2
AUDIO SECTION
R.M.S. Output Voltage 330mV (at 1kHz, Reverberation time: MIN.
Input Level: 200mV)
Maximum Input Level 3V (at IkHz, Reverberation time: MIN.)
Harmonic Distortion Less than 0.2% (at IkHz, Reverberation time:
MIN,Output Level: 330mV)
Frequency Response 1-2dB 20HZ to 35kHz (Reverberation time: MIN.)
tiOdB 20Hz to 50kHz (Reverberation time:
MAX.)
Signal-to»Noise Ratio 65dB (at 330mV output)
Reverberation time 0 ~ 2.5 sec. (at IkHz)
Input Impedance 300k$l (at 1kHz)
Output Jacks OUTPUT jack Impedance IOkSZ (at 1kHz)
TAPE RECORDING jack A and B.
Line Requirements 110, 120, 130, 220 and 240 volts (switchable)
50 N 60Hz. 8 watts (MAX.)
Dimensions Overall 13 1/16/ 322mm (width)

5" 1/2 / 140mm (height)
10" 3/8 / 263mm (depth)
Weight Without Package 10|b 202, 4.6kg
With Package 13), 5.9kg

NOTE: Specifications and the design subject to modification without notice due to improvements.

LINE VOLTAGE AND FUSE

To move the fuse, turn the fuse cap located on the line voltage selector in the direction
indicated by the arrow. Then remove the fuse plug from the unit. Put the fuse plug back so that
the proper line voltage marking can be seen through the cut in the edge of the plug.

Whenever the position of the selector is changed, check the rating of the fuse. A0.2-ampere
fuse is to be used for either 220V or 240V operation and a 0.3-ampere fuse for 110V, 120V or 130V
operation. If the rating of the fuse is correct, replace cap.

Fuse replacement

If the fuse blows, the fuse cap and replace the
fuse with a new one.

Take off the fuse cap by turning it with a coin,
etc. in the direction indicated by the arrow.

COIN FUSE CAP FUSE FUSE PLUG SOCKET

Take off the fuse cap by turning it with a coin, etc.
in the direction indicated by the arrow mark.
