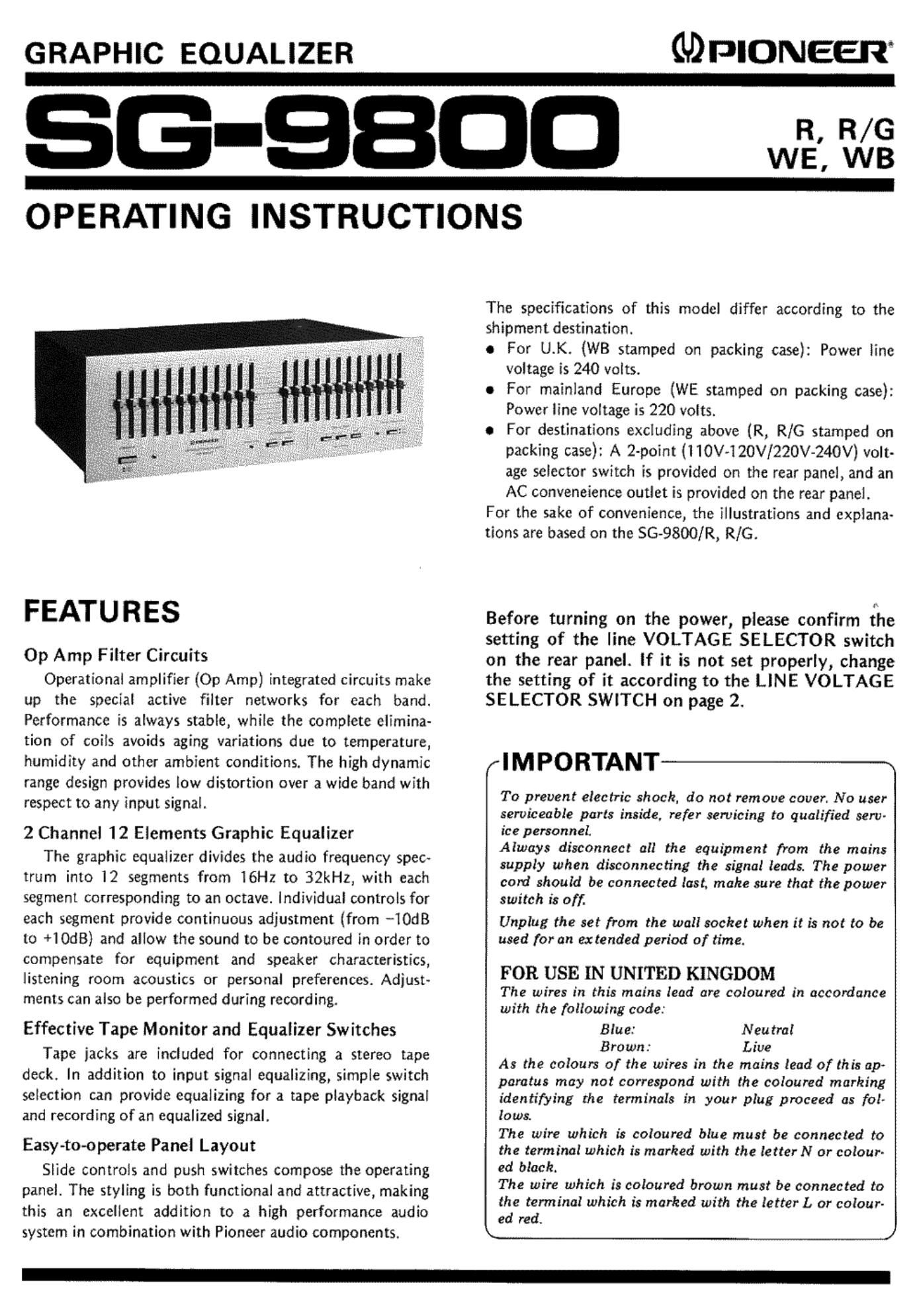

Page 1

GRAPHIC EQUALIZER

GDDIONEER'

6-9800

R. R/G
WE, WB

OPERATING INSTRUCTIONS

FEATU RES

Op Amp Filter Circuits

Operational amplifier (Op Amp) integrated circuits make
up the special active filter networks for each band.
Performance is always stable, while the complete elimina-
tion of coils avoids aging variations due to temperature,
humidity and other ambient conditions. The high dynamic
range design provides low distortion over a wide band with
respect to any input signal.

2 Channel 12 Elements Graphic Equalizer

The graphic equalizer divides the audio frequency spec-
trum into 12 segments from 16Hz to 32kHz, with each
segment corresponding to an octave. Individual controls for
each segment provide continuous adjustment (from -lOdB
to +iOdB) and allow the sound to be contoured in order to
compensate for equipment and speaker characteristics,
listening room acoustics or personal preferences. Adjust-
ments can also be performed during recording.

Effective Tape Monitor and Equalizer Switches

Tape jacks are included for connecting a stereo tape
deck. In addition to input signal equalizing, simple switch
selection can provide equalizing for a tape playback signal
and recording ofan equalized signal.

Easy-to-operate Panel Layout

Slide controls and push switches compose the operating
panel. The styling is both functional and attractive, making
this an excellent addition to a high performance audio
system in combination with Pioneer audio components.

The specifications of this model differ according to the

shipment destination.

0 For UK. (WB stamped on packing case): Power line
voltage is 240 volts.

0 For mainland Europe (WE stamped on packing case):
Power line voltage is 220 volts.

0 For destinations excluding above (R, R/G stamped on
packing case): A 2-point (l10V-iZOV/220V-240V) volt-
age selector switch is provided on the rear panel, and an
AC conveneience outlet is provided on the rear panel.

For the sake of convenience, the illustrations and explana-
tions are based on the SG-9800/R, RIG.

Before turning on the power, please confirm the
setting of the line VOLTAGE SELECTOR switch
on the rear panel. If it is not set properly, change
the setting of it according to the LINE VOLTAGE
SELECTOR SWITCH on page 2.

(IMPORTANT ,

To prevent electric shock, do not remoae cover. No user
serviceable parts inside, refer servicing to qualified serv-
ice personnel.

Always discarmect all the equipment from the mains
supply when disconnecting the signal leads. The power
cord should be connected last, make sure that the power
switch is off.

Unplug the set from the wall socket when it is not to be
used for an extended period of time.

FOR USE IN UNITED KINGDOM

The wires in this mains lead are coloured in accordance
with the following code:

Blu e: Neu trcl

Brown: Live
As the colours of the wires in the mains lead of this ap-
paratus may not correspond with the coloured marking
identifying the terminals in your plug praceed as fol-
lows.
The wire which is coloured blue must be connected to
the terminal which is marked with the letterN or colour-
ed black.
The wire which is coloured brown must be connected to
the terminal which is marked with the letter L or colour-

ed red.
& J

Page 2

Features ...............................
Rear Panel Facilities .......................
Connections ............................
Front Panel Facilities ......................
Octave Control Operation ...................
Before Operation .........................

CONTENTS

Operation .............................. 6
Effective Operation ........................ 8
Schematic Diagram ........................ 10
Specifications ........................... 1 2
Installation Cautions ....................... 1 2

REAR PANEL FACILITIES

This rear panel is the R, RIG models.

Voltage when:-

Bil

G) EQUALIZER INPUT JACKS

Connect these jacks to the TAPE REC jacks on
the stereo amplifier or to the PREAMP OUT
(OUTPUT) jacks on the preamplifier.

® EQUALIZER OUTPUT JACKS

Connect these jacks to the TAPE PLAY jacks on
the stereo amplifier or to the POWER AMP IN
(INPUT) jacks on the power amplifier.

NOTE:

The maximum rated input of the modeISG-9800 is 7.5 V.
When it is being used between the PRE OUT jacks
of the preamplifier and the MAIN IN jacks of the power
amplifier, set this switch beforehand to -3dB or -6dB if
the output level of the preamplifier will exceed 7.5V.

6) TAPE REC JACKS

Connect these to the INPUT (REC) jacks on the
tape deck.

(9 TAPE PLAY JACKS

Connect these to the OUTPUT (PLAY) jacks on
the tape deck.

(5) AC OUTLET (R, R/G models only)

This is an auxiliary power outlet. Connect the
power plug of your tape deck or other stereo hi-fi
component to this outlet. It is not coupled with
the power switch on the model SG-9800 (UN-
SWITCHED). The maximum power capacity is
100W and so do not connect electrical appliances
with a power capacity exceeding this value.

This rear panel is the W8, WE models.

[till kk'tfi \ "Ft

©®®®

_.

® LINE VOLTAGE SELECTOR SWITCH

Check that the indication of the line voltage selec-
tor switch is same as your residence before plug-
ging the power cord into the outlet. If it isnt or if
you move to an area where the voltage require
ments differ, change the switch setting as follows.
Before adjusting, disconnect the power cord.

1. Prepare a medium size screwdriver.

2. Insert the screwdriver into the arrow on the volt-
age selector and adjust so that the tip of the ar-
row points to the voltage value of your area.

Lvoé OLYAGE Sf LICTOR-j
obg

.

7 \41

//r-?L_tl
