Pioneer sem 285 tv service manual
This is the 4 pages manual for pioneer sem 285 tv service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer sem 285 tv service manual (Ocr-read)
Page 1

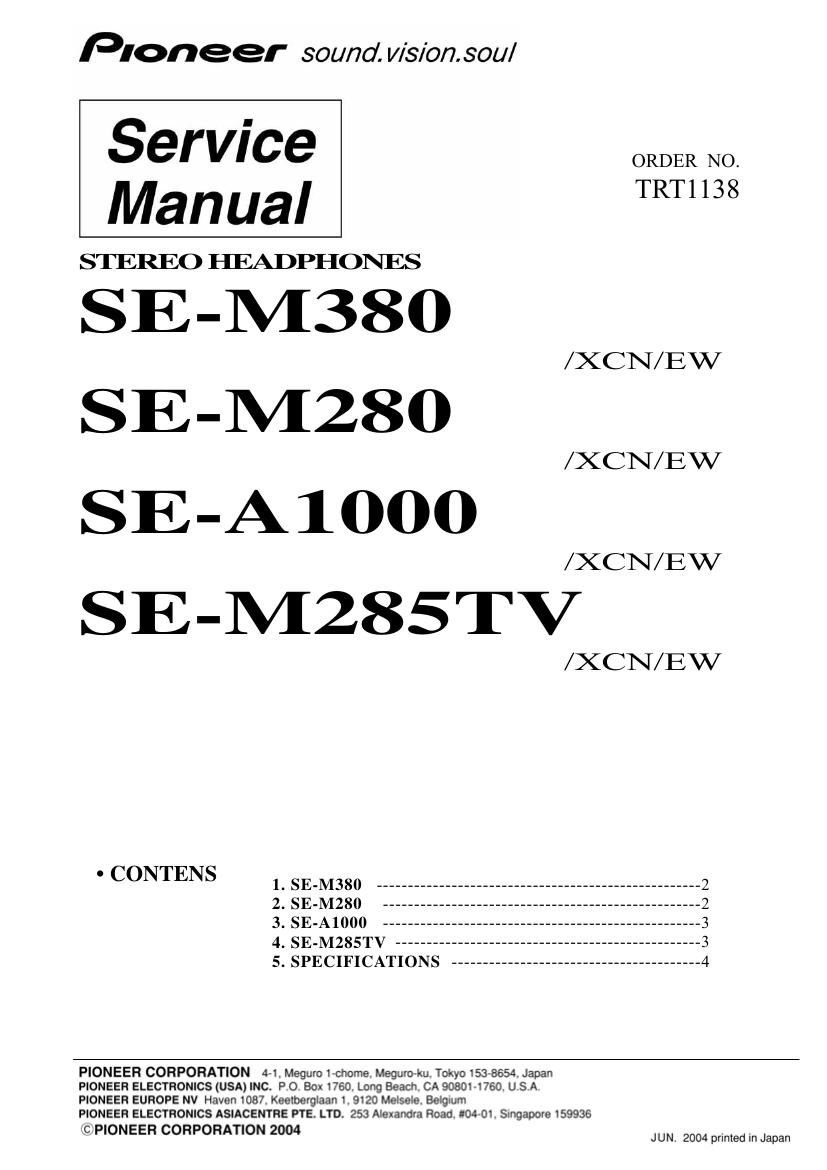

Pioneer sound. V/S/Ofl.30U/
Service
Manual TRT1138
STEREO HEADPHONES
SE-M380
SE-M280
SE-AlOOO
SE-M285TV
/ XCN/ E W
- CONTENS 1 SE_M380 ____________________________________________________ 2
2. SE-M280 - 2
3. SE-A1000 - 3
4. SE-M285TV ------------------------------------------------- 3
s. SPECIFICATIONS ---------------------------------------- 4
PIONEER CORPORATION 4~1. Meguvo 1-chome. Meguro~ku. Tokyo 1538654. Japan
PIONEER ELECTRONICS (USA) INC. P O Box 1760. Long Beach. CA 9080! 1760. U S A
PIONEER EUROPE NV Haven 1087 Keexbengaan 1, 9120 Melsele. Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road. #04 01. Singapore 159936
C PIONEER CORPORATION 2004 JUN 2004 pnnted In Japan
Page 2
SE-M3 80/ SE-M2 80
NOTES: 0 Parts marked by "NSF" are generally unavailable berauxe they are nol in our Master Spare Parts List.
0 The 1 mark found on some mmponen! parts indimtes the important? of the safelyfarlor of the part.
Therefore. when replacing, be sure to use pans of identical designation.
0 Screw: adjuven! to ' mark on product are used for disassemblv.
O For the applying amount of lubricants or glue. follow the instructions in tltix manual.
( In the case of no amount instructions. apply as you think it appropriate. )
1. SE-M380
(1) PARTS LIST
Mark No. Description Parts No.
1 Ear Pad WNV1103
2 Plug Adaptor WKX1036 Packing View
(2) EXPLLOED VIEW
2. SE-M280
(1) PARTS LIST
Mark No. Description Parts No.
1 Ear Pad WNV1103
2 Plug Adaptor WKX1036
(2) EXPLLOED VIEW
Packing View
