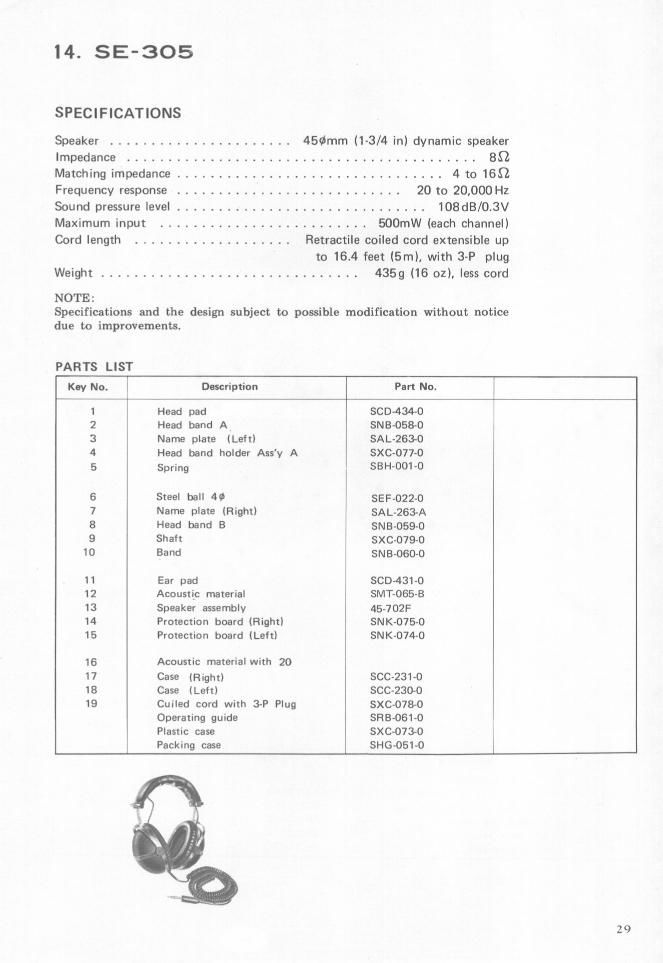

14. SE-305
SPECIFICATIONS
Speaker . . . , . . 45¢mm (1-3/4 in) dynamic speaker
Impedance .......................................... 80
Matching impedance ................................ 4 to 1652
Frequency response . . . . . . . . . 20 to 20,000 Hz
Sound pressure level .............................. 108dB/0.3V
Maximum input ......................... SOOmW (each channel)
Cord length ................... Retractile coiled cord extensible up
to 16.4 feet (5m), with 3-P plug
Weight ............................... 4359 (16 02), less cord
NOTE:
Specifications and the design subject to possible modification without notice
due to improvements.
PARTS LIST
Key No. Description Part No.
1 Head pad SCD-434-0 r
2 Head band A SNB-058-0
3 Name plate (Left) SAL-2630
4 Head band holder Ass'y A SXC»077-0
5 Spring $BH-001-0
6 Steel ball 40 5590224)
7 Name plate (Right) SAL~263A
8 Head band B I SNB-OSQ-O
9 Shaft sxc-o79-o
10 Band sneoso-o
11 Ear pad SCD-431-O
12 Acoustic material SMT»065-B
13 Speaker assembly 45-702F
14 Protection board (Right) SNK-075-0
15 Protection board (Left) SNK«074-O
16 Acoustic material with 20
17 Case (Right) SCC-231-0
18 Case (Left) SCC-230-0
I9 Cuiled cord with SP Plug SXC-O78-0
Operating guide SRB-OGI-O
Plastic case SXC~O73-0
Packing case SHG-051-0
