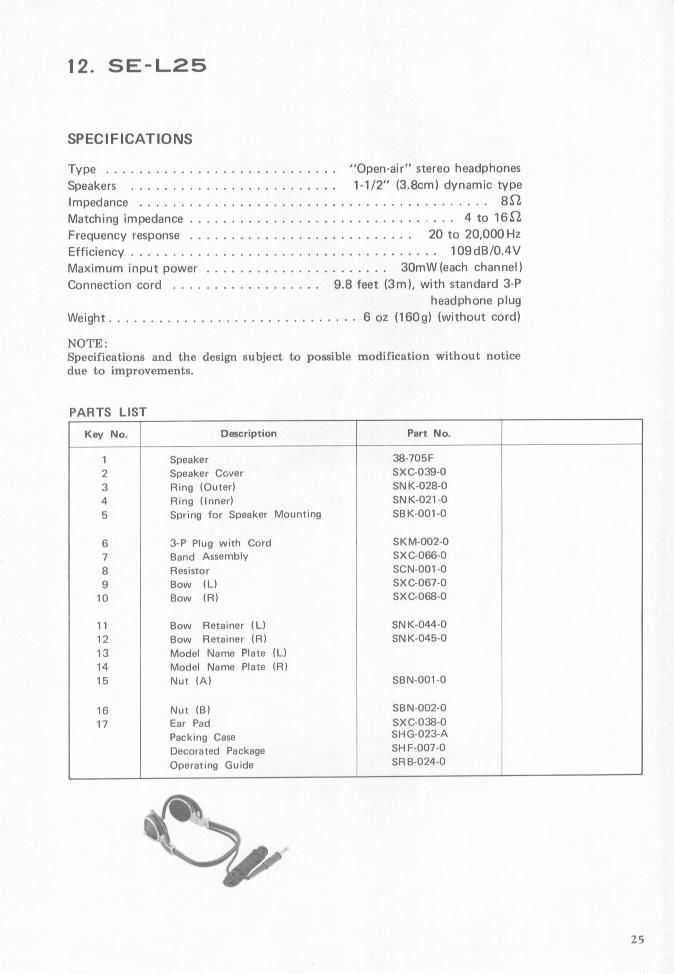

12. SE-L25
SPECIFICATIONS
Type ............................ "Open-air" stereo headphones
Speakers ......................... 1-1/2" (3.8crn) dynamic type
Impedance .......................................... 852
Matching impedance ................................ 4 to 169
Frequency response . . . . . , . . . 20 to 20,000 Hz
Efficiency ..................................... 109dB/0t4V
Maximum input power ...................... 30mW(each channel)
Connection cord .................. 9.8 feet (3m), with standard 3-P
headphone plug
Weight .............................. 6 oz (1609) (without cord)
NOTE:
Specifications and the design subject to possible modification without notice
due to improvements.
PARTS LIST
Key No. Description Part No.
1 Speaker 38-705F
2 Speaker Cover SXC-OSB-O
3 Ring (Outer) SNK-OZE-D
4 Fling (Inner) SNK-021-0
5 Spring for Speaker Mounting SBK-OOl-O
6 3-P Plug with Cord SKM-002-0
7 Band Assembly SXO-OSG-O
8 Resistor SCN-DO1-0
9 Bow (Ll 5X0067-0
10 Bow (R) SXC-OGSAO
11 Bow Retainer (L) SNK-044AO
12 Bow Retainer (R) SNK-UAE-O
13 Model Name Plate (L)
14 Model Name Plate (H)
15 Nut (AI SBN-OOI-O
16 Nut (3) SBN»002-O
17 Ear Fad SXC-038-0
Packing Case SHG'023'A
Decorated Package SHF'007'0
Operating Guide l 5R3'024'0 L
