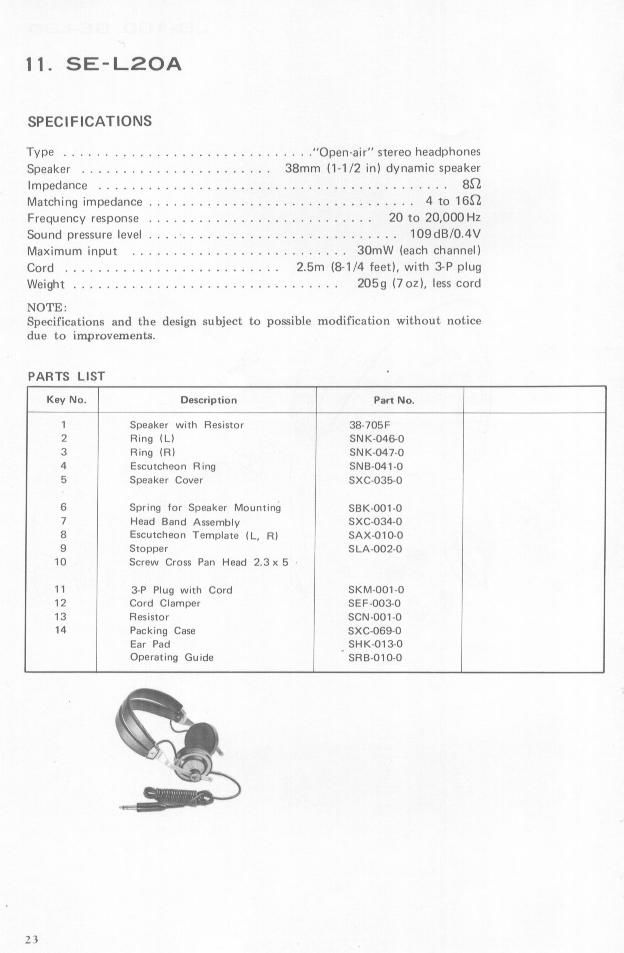

I 1. SE-LZOA

SPEClFICATIONS

Type .............................. "Open-air" stereo headphones
Speaker . . . 38mm (1-1/2 in) dynamic speaker
Impedance .......................................... 852
Matching impedance ................................ 4 to 169
Frequency response ........................... 20 to 20,000 HZ
Sound pressure level . , . .v .......................... 109dB/0,4V
Maximum input .......................... 30mW (each channel)
Cord .......................... 2.5m (8-1/4 feet), with 3-P plug
Weight ................................ 2059 (7 02), less cord

NOTE:
Specifications and the design subject to possible modification without notice
due to improvements.

PARTS LIST
Key No. Description Part No.
1 Speaker with Resistor 38-705F
2 Ring (Ll SNK-O460
3 Ring 1R) SNK-O47-0
4 Escutcheon Ring SNB-041-0
5 Speaker Cover SXC-035-0
6 Spring for Speaker Mounting SBK-OOl-O
7 Head Band Assembly SXC-O34-O
B Escutcheon Template (L, R) SAX-0100
9 Stopper SLA-002-0
10 Screw Cross Pan Head 2.3x 5 -
11 3-P Plug with Cord SKM-OOl-O
12 Cord Clamper SEF-003-0
13 Resistor SCN-OOl-O
14 Packing Case SXC»069-0
Ear Pad SHK»O| 3-0
Operating Guide ' SRB-OlO-O

23
