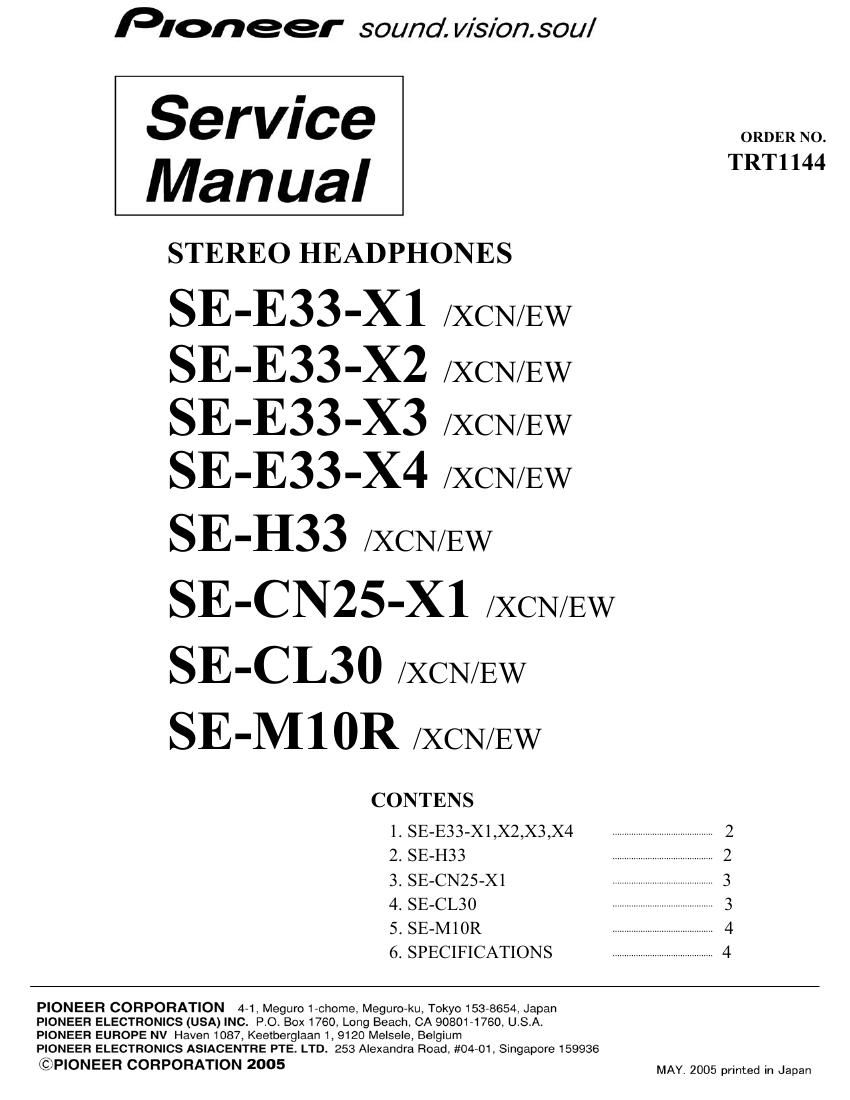

Pioneer see 33 x 4 service manual
This is the 4 pages manual for pioneer see 33 x 4 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer see 33 x 4 service manual (Ocr-read)
Page 1
SE-E33 / SE-H33SE-E33 / SE-H33 2 1. SE-E33-X1,X2,X3,X4 1.1COLOR LIST MODEL COLOR SE-E33-X1 Black/Metal SE-E33-X2 Dark Silver/Red Packing View 1.2 EXPLLOED VIEW 2. SE-H33 2.2 EXPLLODED VIEWPacking View 1 2.1 PARTS LIST Mark No. Description Parts No. 1 Ear Pad WNV1116 2 Extension Cord WDE1174 2 MODEL COLOR SE-E33-X3 Silver/Dark Blue SE-E33-X4 Metal/Camouflage Plug Form How to change plates How to adjust the hanger
Page 2
3 SE-CN25 / SE-CL30SE-CN25 / SE-CL30 3. SE-CN25-X1 Packing View 3.2 EXPLLOED VIEW Plug Form 3.1 PARTS LIST Mark No. Description Parts No. 1 Ring WNK2406 2 Cover WNK2409 Plug Form 4. SE-CL30 4.1 PARTS LIST Mark No. Description Parts No. 1 Earphone Chips /Medium WNK2255 2 Earphone Chips /Small WNK2256 3 Earphone Chips /Large WNK2257 4.2 EXPLLOED VIEW 1 2 2 Packing View 1 3
