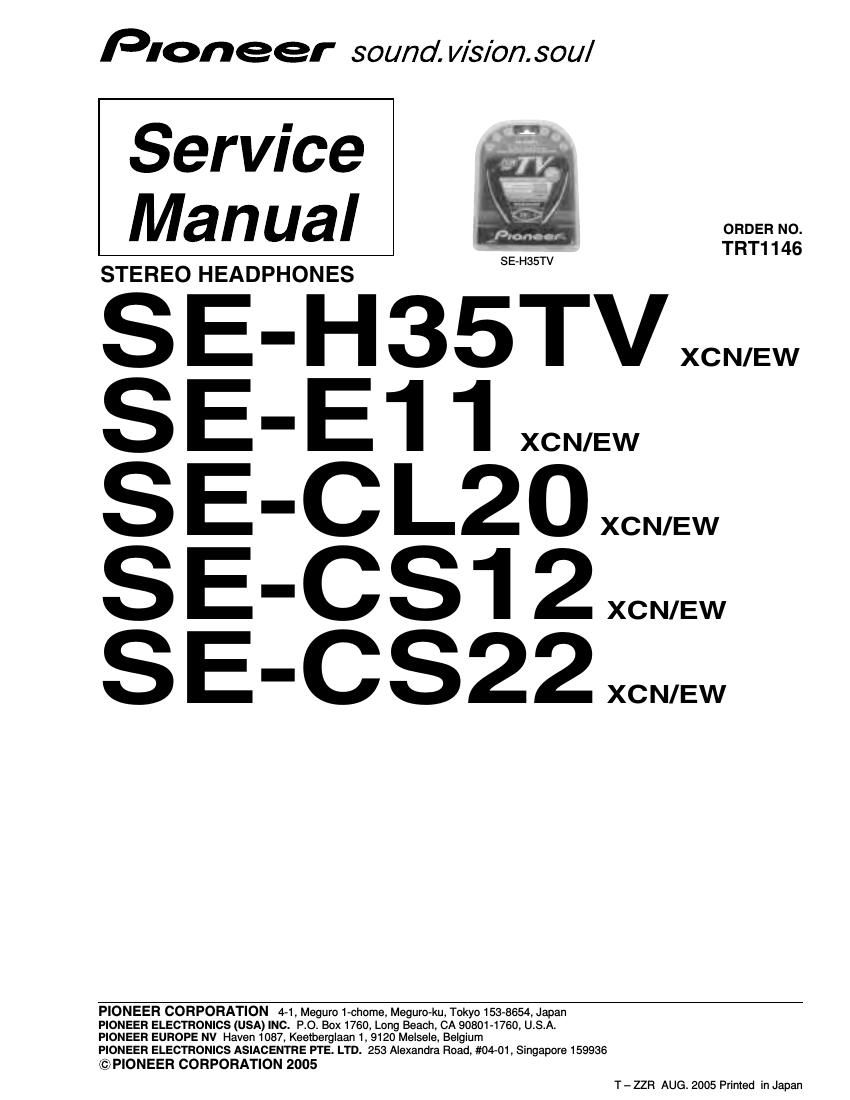

Page 1
2 1 23 4 1234 C D F A B E SE-H35TV EXPLODED VIEW PACKING VIEW 3 1 2 4 - SE-H35TV Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST ModelFrequency responceImpedancMaximum Input powerSensitivity Driver unit Plug CordWeight (Without cord) SE-H35TV 20 ~20,000Hz 32Ω100mW(JEITA) 104dBΦ30 mmW 5.0m 45 g SE-E11 20 ~20,000Hz 16Ω50mW(JEITA) 100dBΦ13.5 mm L1.2m 9 g SE-CL20 8 ~22,000Hz 16Ω100mW(JEITA) 100dBΦ9.2 mm L 1.2m 4 g SE-CS12 20 ~20,000Hz 16Ω50mW(JEITA) 100dBΦ13.5 mm Φ13.5 mmL 1.2m 1.2m5 g 5 g 18 ~22,000Hz 16Ω100mW(JEITA) 105dB L Plug form : S (straight type) / L (L type) / W (2Wy plug) SE-CS22 For Parts List Mark No. Description Part No. NSP 1 Headhpone WPH1029 NSP 2 Code Assy WDE1259 NSP 3 Pulg Adapter WKX1030 4 Ear Pad WNV1116 SPECIFICATIONS
Page 2
3 1 234 1 23 4 C D F A B E SE-H35TV EXPLODED VIEW PACKING VIEW 32 4 1 EXPLODED VIEW PACKING VIEW 3 1 2 1 For Parts List Mark No. Description Part No. - SE-E11 - SE-CL20 For Parts List Mark No. Description Part No. NSP 1 Headhpone WPH1030 NSP 2 Code Assy WDE1264 NSP 3 Cord Strap WXA1053 NSP 1 Code Assy WDE1260 2 Earhpone Chip S WNK2447 3 Earphone Chip L WNK2448 4 Earphone Chip M WNK2446
