Pioneer see 032 service manual

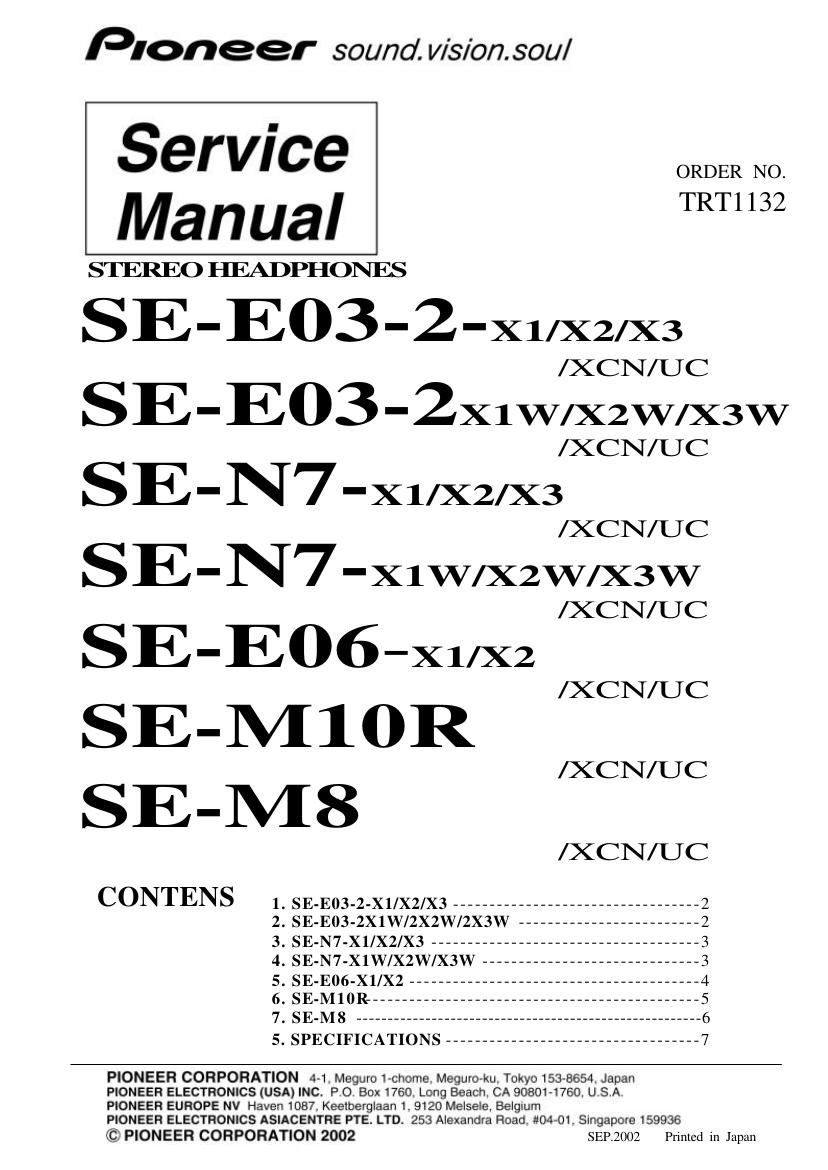

This is the 7 pages manual for pioneer see 032 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer see 032 service manual (Ocr-read)
Page 1
1. SE- E03-2-X1/X2/X3 SE- E03-2X1W/2X2W/2X3W (1) COLOR LIST (2) EXPLLOED VIEW SE-E03-2 2 MODEL COLOR SE-E03-2-X1 / SE-E03-2X1W SILVER SE-E03-2-X2 / SE-E03-2X2W BLUE SE-E03-2-X3 / SE-E03-2X3W BLACK Packing View -SE-E03-2-X1 -SE-E03-2X1W -SE-E03-2-X2 -SE-E03-2X2W -SE-E03-2-X3 -SE-E03-2X3W Plug Form SE-E03-2X1W SE-E03-2X2W SE-E03-2X3W Only Sensormatic Packing Inside View NOTES : - Parts marked by NSP are generally unavailable because they are not in our Master Spare Parts List. - The mark found on some component parts indicates the impotance of the safety factor of the part. Therefor, when replacing, be sure to use parts of identical designation. - Screws adjacent to mark on the produt are used for disassembly. - For the applying amount of lubricants or glue, follow the instructions in the this manual. (In the case of no amount instructions, apply as you think it appropriate.)
Page 2
2. SE-N7-X1/X2/X3 SE-N7-X1W/X2W/X3W (1) PARTS LIST (2) COLOR LIST (3) EXPLLOED VIEW Mark No. Description 1 Ear Pad Parts No. WNV1095 SE-N7 1 MODEL COLOR SE-N7-X1, SE-N7-X1W SILVER SE-N7-X2, SE-N7-X2W BLUE SE-N7-X3, SE-N7-X3W BLACK Packing View Packing Inside View Sensormatic SE-N7-X1W SE-N7-X2W SE-N7-X3W Only 3
