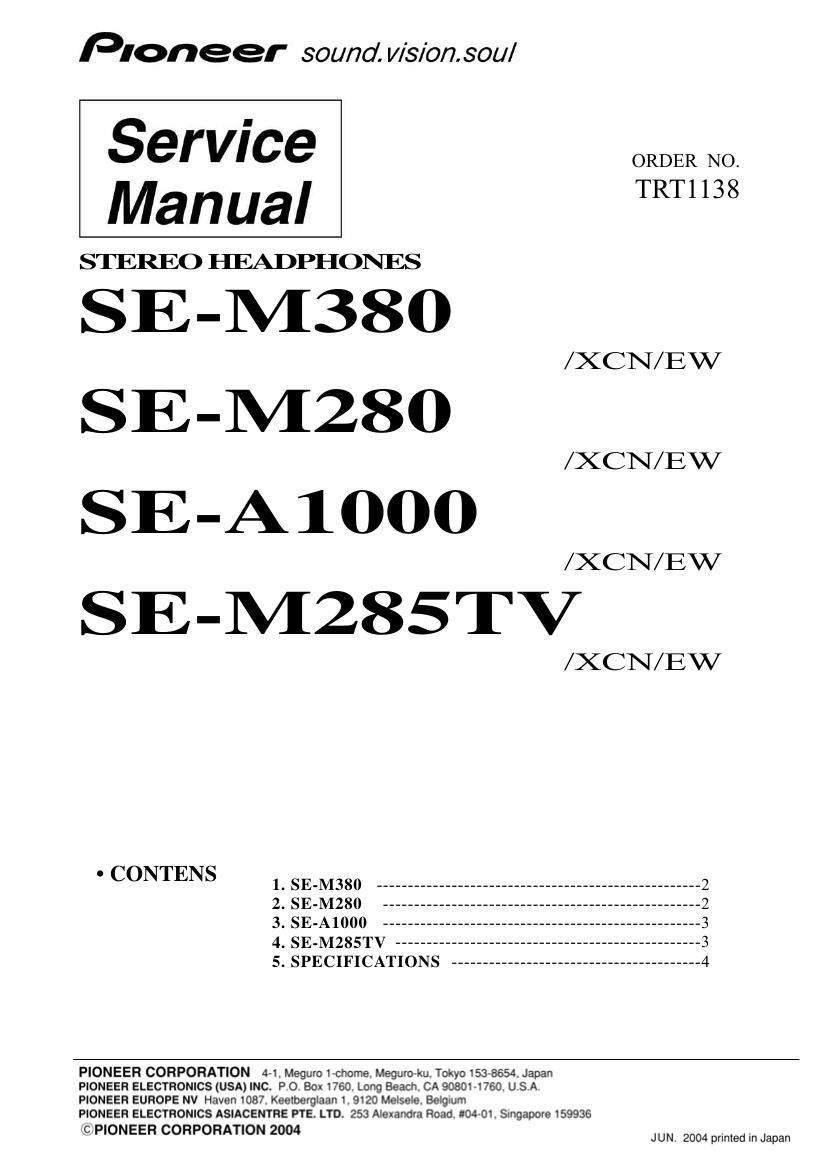

Page 1
Pioneer sound. V/S/Ofl.30U/
Service
Manual TRT1138
STEREO HEADPHONES
SE-M380
SE-M280
SE-AlOOO
SE-M285TV
/ XCN/ E W
- CONTENS 1 SE_M380 ____________________________________________________ 2
2. SE-M280 - 2
3. SE-A1000 - 3
4. SE-M285TV ------------------------------------------------- 3
s. SPECIFICATIONS ---------------------------------------- 4
PIONEER CORPORATION 4~1. Meguvo 1-chome. Meguro~ku. Tokyo 1538654. Japan
PIONEER ELECTRONICS (USA) INC. P O Box 1760. Long Beach. CA 9080! 1760. U S A
PIONEER EUROPE NV Haven 1087 Keexbengaan 1, 9120 Melsele. Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road. #04 01. Singapore 159936
C PIONEER CORPORATION 2004 JUN 2004 pnnted In Japan
Page 2
SE-M3 80/ SE-M2 80
NOTES: 0 Parts marked by "NSF" are generally unavailable berauxe they are nol in our Master Spare Parts List.
0 The 1 mark found on some mmponen! parts indimtes the important? of the safelyfarlor of the part.
Therefore. when replacing, be sure to use pans of identical designation.
0 Screw: adjuven! to ' mark on product are used for disassemblv.
O For the applying amount of lubricants or glue. follow the instructions in tltix manual.
( In the case of no amount instructions. apply as you think it appropriate. )
1. SE-M380
(1) PARTS LIST
Mark No. Description Parts No.
1 Ear Pad WNV1103
2 Plug Adaptor WKX1036 Packing View
(2) EXPLLOED VIEW
2. SE-M280
(1) PARTS LIST
Mark No. Description Parts No.
1 Ear Pad WNV1103
2 Plug Adaptor WKX1036
(2) EXPLLOED VIEW
Packing View
