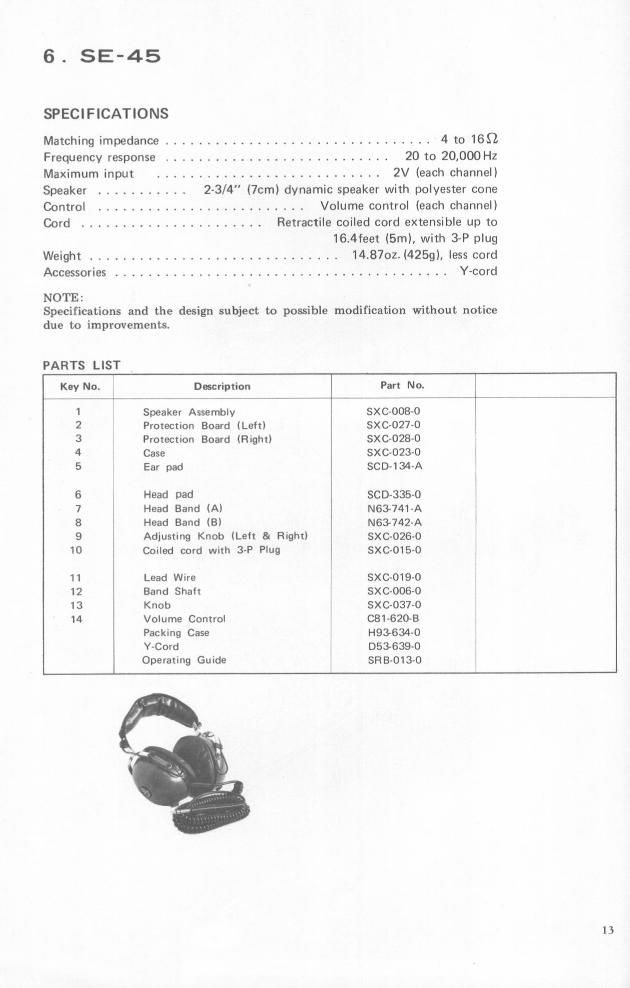

Page 1
6 . SE-45
SPECIFICATIONS
Matching impedance ................................ 4 to 169.
Frequency response ........................... 20 to 20,000 Hz
Maximum input ........................... 2V (each channel)
Speaker ........... 2-3/4" (7cm) dynamic speaker with polyester cone
Control ......................... Volume control leach channel)
Cord ...................... Retractile coiled cord extensible up to
16.4feet (5m), with 3P plug
Weight ...... 14.8702. (4259), less cord
Accessories ........................................ chord
NOTE:
Specifications and the design subject to possible modification without notice
due to improvements.
PARTS LIST
Key No. Dmription Part No.
1 Speaker Assembly SXC-OOB-O
2 Protection Board (Left) SXC«027-0
3 Protection Board (Right) SXC-DZB-D
4 Case SXC-023-0
5 Ear pad SCD-I34-A
6 Head pad SOD-3354]
7 Head Band (A) N63741-A
8 Head Band (B) N63742-A
9 Adiusting Knob (Left 8i Right) SXC-OZG-O
10 Coiled cord with 3-P Plug SXC-015-0
11 Lead Wire SXC-019-O
12 Band Shaft SXC-OOG-O
13 Knob SXC-037-0
14 Volume Control C81-620-B
Packing Case H93634-0
Y-Cord 0536394)
Operating Guide SHE-01341
13
Page 2
SE-30A /45
