Extracted text from pioneer se 4 service manual (Ocr-read)

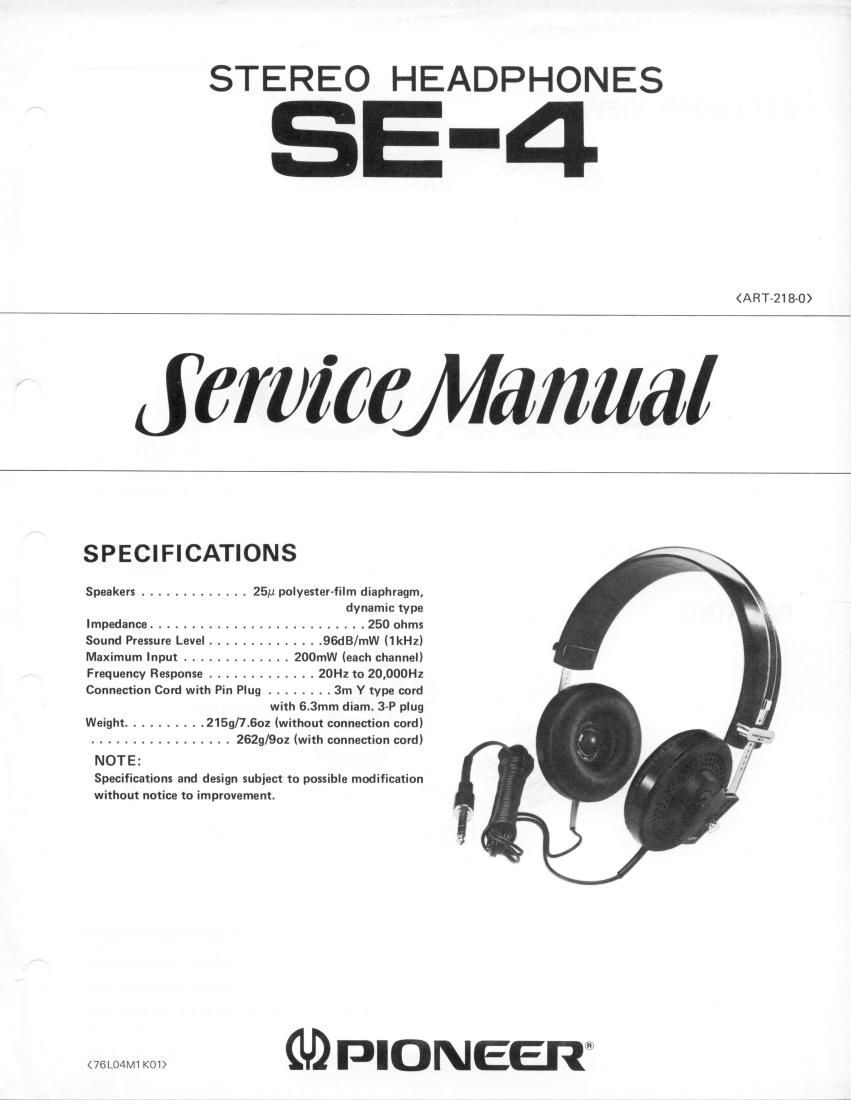

Page 1
STEREO HEADPHONES
E-4
(ART-2180)
Jeri/1'66 Manual
SPECIFICATIONS
Speakers ............. 25# polyester-film diaphragm,
dynamic type
Impedance .......................... 250 ohms
Sound Pressure Level .............. 96dB/mW (1kHzl
Maximum Input ............. ZOOmW (each channel)
Frequency Response ............. 20Hz to 20,000Hz
Connection Cord with Pin Plug ........ 3m Y type cord
with 6.3mm diam. 3-P plug
Weight .......... 2159/7 .602 (without connection cord)
................. 2629/901 (with connection cord)
NOT E:
Specifications and design subject to possible modification
without notice to improvement.
GDPIONEER
