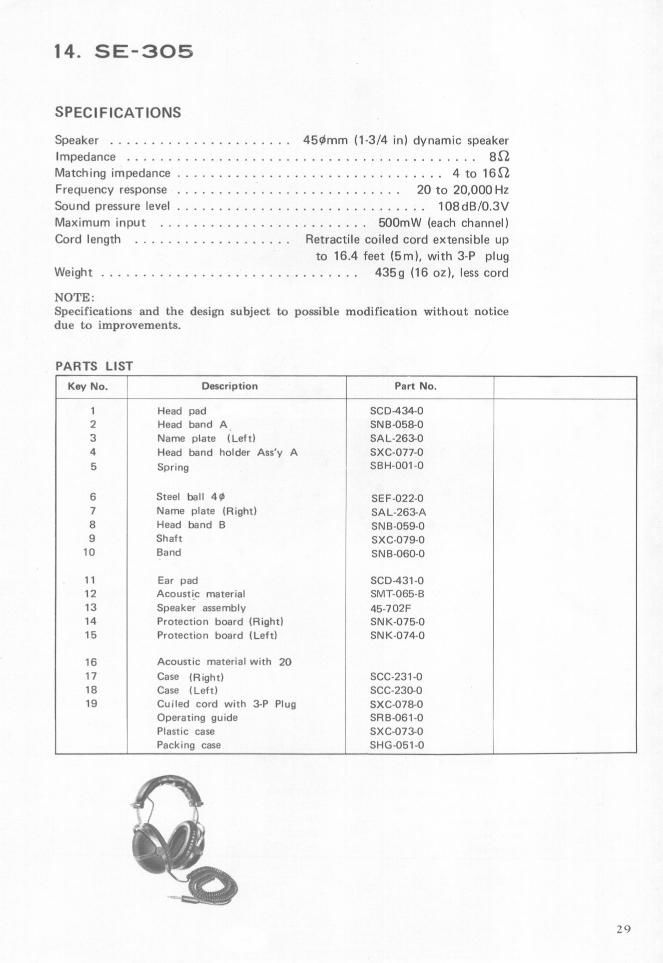

Page 1
14. SE-305
SPECIFICATIONS
Speaker ...................... 45¢mm (1-3/4 in) dynamic speaker
Impedance ........................ 89
Matching impedance . . .. .. .. . . . . 4 to 1652
Frequency response ........................... 20 to 20,000 Hz
Sound pressure level .............................. 108dB/0.3V
Maximum input ......................... 500mW (each channel)
Cord length ................... Retractile coiled cord extensible up
to 16.4 feet (Sm), with 3-? plug
Weight ............................... 4359 (16 02), less cord
NOTE:
Specifications and the design subject. to possible modification without notice
due to improvements.
PARTS LIST
Key No. Description Pm No.
1 Head pad 5004340
2 Head band A_ SNB-DSEO
3 Name plate (Left) SAL-2630
4 Head band holder Ass'y A SXC-O77-0
5 Spring SBH-OOI-O
6 Steel ball 4w SEF-022-0
7 Name plate (Right) SAL-263A
3 Head band a j $NB-0590
9 shalt SXC-O79-0
10 Band SNB-OGO-O
11 Ear pad 1 scour-o
12 Acoustic material SMT-OESAB
13 Speaker assembly 45-702F
14 Protection board (Right) SNK-O75-O
15 Protection board lLett) SNK-074-0
16 Acoustic material with 20
17 Case (Flight) SOC-23H)
18 Case (Left) $002300
19 Cuiled cord with 3
Plastic case SXC~O73«0
Packing case SHG-051-O
29
