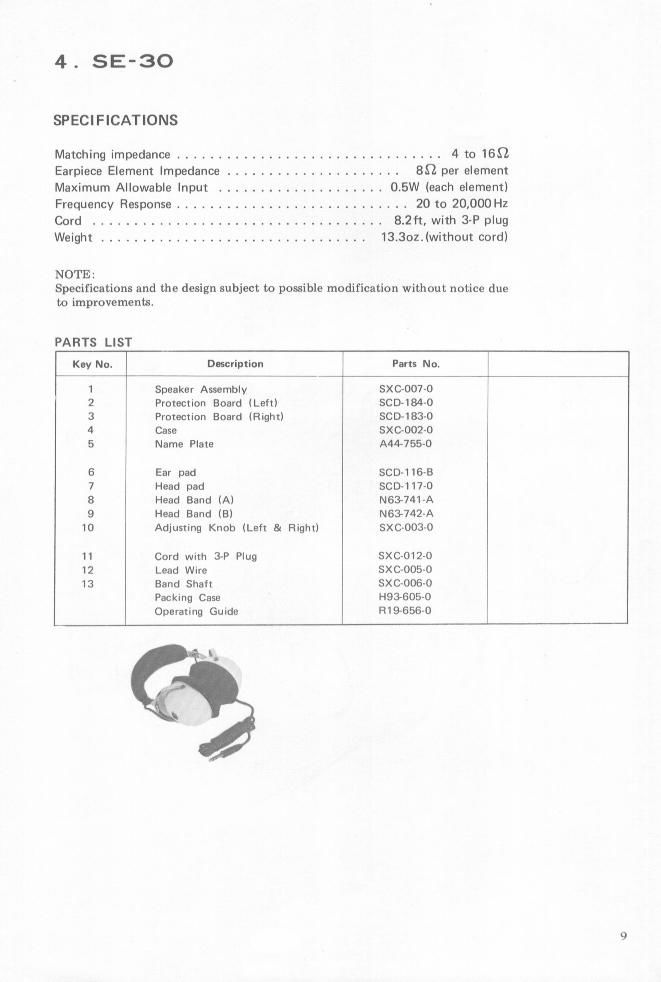

4 . $E-3O
SPECIFICATIONS
Matching impedance ................................ 4 to 169.
Earpiece Element Impedance ..................... 89 per element
Maximum Allowable Input .................... 0.5W (each element)
Frequency Response ............................ 20 to 20,000 Hz
Cord ................................... 8.2fl, with 3-P plug
Weight ................................ 13.3oz.(without cord)
NOTE:
Specifications and the design subject to possible modification without notice due
to improvements
PARTS LIST
Key No. Description Parts Na.
1 Speaker Assembly SXC-007-O
2 Protection Board (Left) SCD184-0
3 Protection Board (Flight) SCD-183-O
4 Case SXGOOZ-O
5 Name Plate A44-755-0
6 Ear pad SCD-116-B
7 Head pad SCD-117-0
8 Head Band (A) N63-74I-A
9 Head Band (B) N63742-A
10 Adjusting Knob (Left 81 Right) SXC»003-0
11 Card with 3-P Plug SXC-012-0
12 Used Wire SXGODS-O
13 Band Shaft SXC-OOS-D
Packing Case H93605-0
Operating Guide R19656-0
