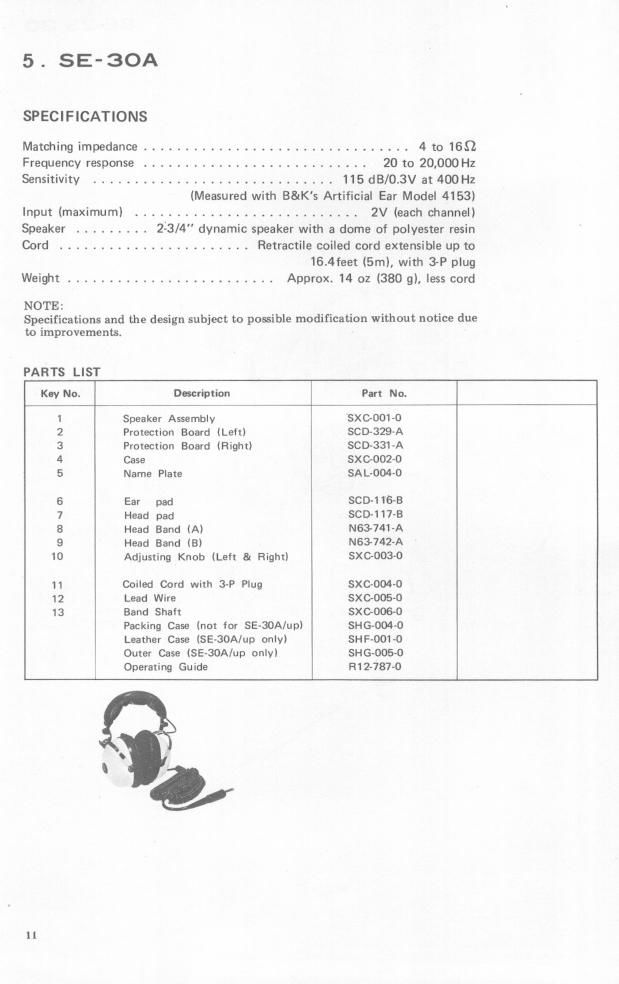

5 . $E-3OA
SPECIFICATIONS
Matching impedance ................................ 4 to 169
Frequency response . . ................ 20 to 20,000 Hz
Sensitivity ............................. 115 dB/0.3V at 400 Hz
(Measured with B&K's Artificial Ear Model 4153)
Input (maximum) ........................... 2V (each channel)
Speaker ......... 2L3/ dynamic speaker with a dome of polyester resin
Cord ............ Retractile coiled cord extensible up to
16.4feet (5m), with 3P plug
Weight ......................... Approx. 14 oz (380 9), less cord
NOTE:
Specifications and the design subject to possible modification without notice due
to improvements.
PARTS LIST
Key No. Description Part No.
1 Speaker Assembly SXC-OO1-O
2 Protection Board (Left) SOD-329A
3 Protection Board (Right) SCD<331vA
4 Case 5X0002~0
5 Name Plate SAL-004-0
6 Ear pad SCD-I 16-8
7 Head pad SCD»117-B
8 Head Band (A) N63741-A
9 Head Band (B) N63742-A
10 Adjusting Knob (Left 81 Right) SXC-OO3»0
11 Coiled Cord with 3«P Plug SXGOOQ-O
12 Lead Wire SXC-DOS-O
13 Band Shaft SXGDOG-O
Packing Case (not for SE-30A/up) SHG-004-0
Leather Case (SE-30A/up only) SHF-001-0
Outer Case (SE»30A/up only) SHG-005-0
Operating Guide FIIZ-787-0
\
|
