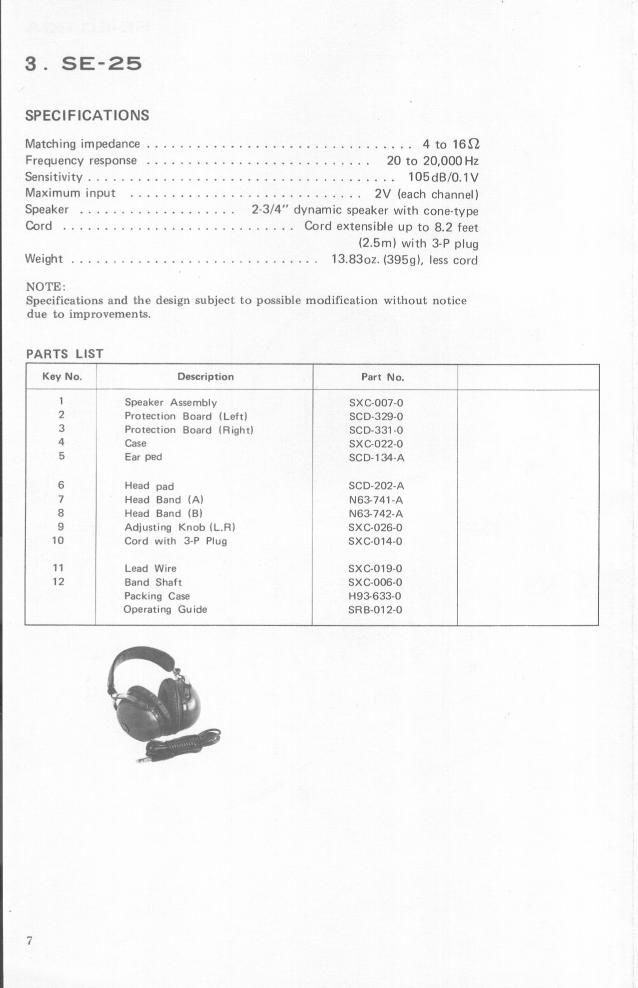

3 . $E-25
SPECIFICATIONS
Matching impedance ................................ 4 to 1652
Frequency response ........................... 20 to 20,000 Hz
Sensitivity ............................. 105dB/0.1V
Maximum input ............................ 2V (each channel)
Speaker ................... 23/4" dynamic speaker with cone-type
Cord ............................ Cord extensible up to 8.2 feet
(2.5m) with 3-P plug
Weight .............................. 13830213959), less cord
NOTE:
Specifications and the design subject to possible modification without notice
due to improvements.
PARTS LIST
Key No. 1 Description Part No.
1 Speaker Assembly SXC-007-O
2 Protection Board (Left) SCD-329-0
3 Protection Board (Right) SOD-3314)
4 Case SXGOZZ-O
5 Ear pad SCD-134-A
6 HEad pad i SOD-202-A
7 Head Band (A) N63741»A
8 Haad Band (BI N63742-A
9 Adjusting Knob (LR) SXC»026-0
10 Cord with 3-? Plug l SXC-OIAO
11 Lead Wire $XC»019-0
12 Band Shaft SXC-ODS-O
Packing Case H93633-0
Operating Guide SHE-0120
