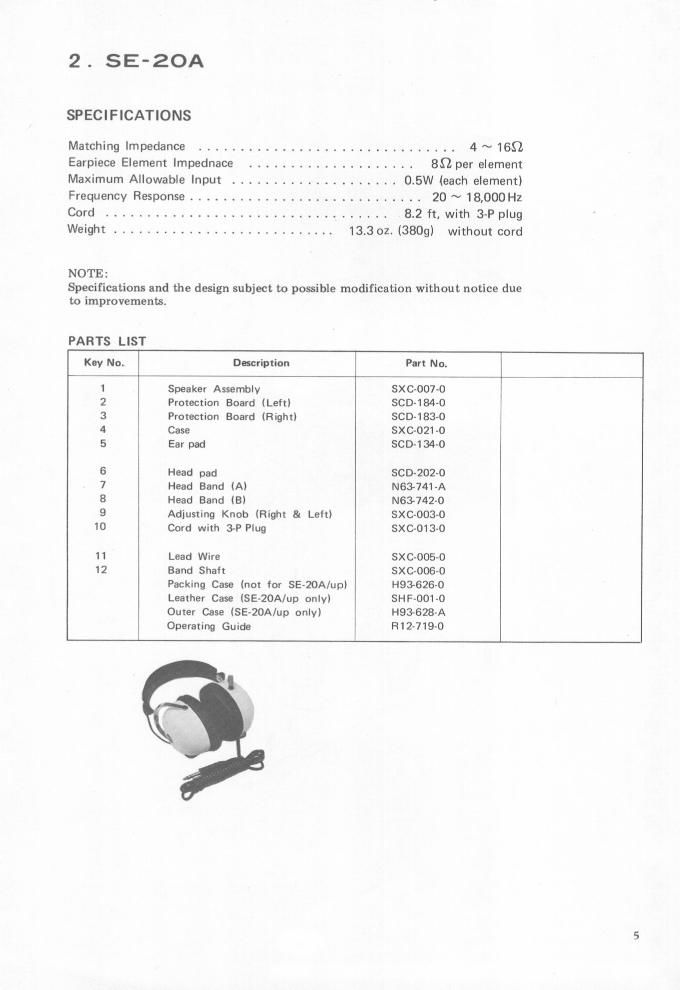

Page 1
2 . SE-ZOA
SPECIFICATIONS
Matching Impedance ............................... 4 ~ 169.
Earpiece Element lmpednace .................... 89 per element
Maximum Allowable Input ................. 0.5W (each element)
Frequency Response ............................ 20 ~ 18,000 Hz
Cord .................................. 8.2 ft, with 3-P plug
Weight ........................... 13.3 oz. (3809) without cord
NOTE:
Specifications and the design subject to possible modification without notice due
to improvements.
PARTS LIST
Key No. Description Part No.
1 Speaker Assembly SXC-007-0
2 Protection Board (Left) SCD-184-0
3 Protection Board (Right) SCD-183-0
4 Case SXC-021-0
5 Ear pad SCDl 34-0
5 Head pad SCD-202-0
7 Head Band (A) N63741-A
3 Head Band (B) N63742-0
9 Adjusting Knob (Right 8. Left) sxoooao
10 Cord with 3-P Plug SXC-013-0
11 Lead Wire sxc-ousro
12 Band shalt SXC-006-0
Packing Case (not for SE-ZOA/up) H93626-0
Leather Case (SE20A/up only) SHF-001-0
Outer Case (5E-2OA/up only) . H93628-A
Operating Guide ) Fl1Z-719-O
