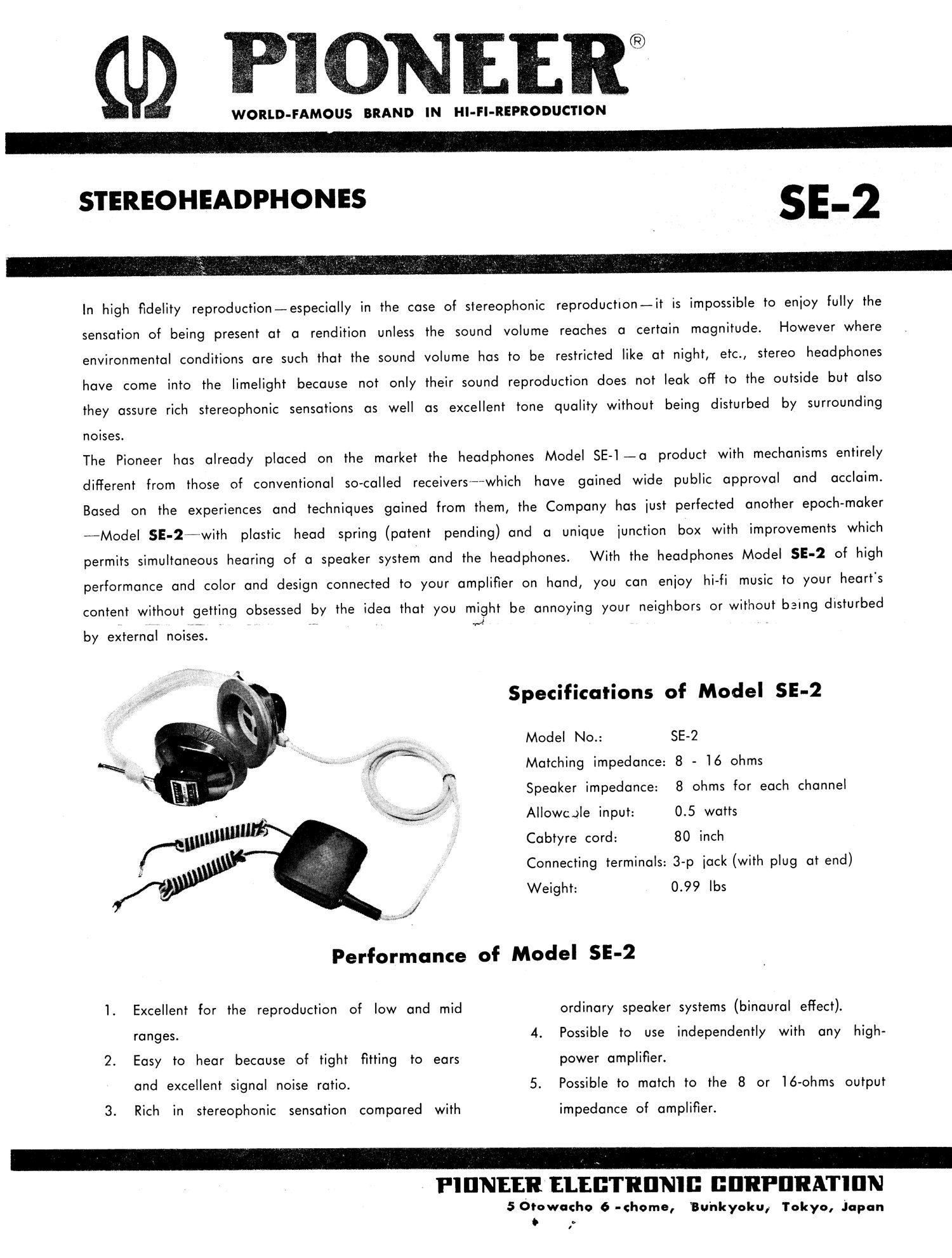

Pioneer se 2 owners manual

Page 1

In high fidelity reproduction-especially in the case of stereOphonic reproduction-it is impossible to enioy fully the
sensation of being present at a rendition unless the sound volume reaches a certain magnitude. However where
environmental conditions are such that the sound volume has to be restricted like at night, etc., stereo headphones
have come into the limelight because not only their sound reproduction does not leak off to the outside but also
they assure rich stereophonic sensations as well as excellent tone quality without being disturbed by surrounding
noises.

The Pioneer has already placed on the market the headphones Model SE-l -a product with mechanisms entirely
different from those of conventional so-called receiversfl-"which have gained wide public approval and acclaim.
Based on the experiences and techniques gained from them, the Company has iust perfected another epoch-maker

\

---Mode| SE-2-mwith plastic head spring patent pending and a unique iunction box with improvements which

permits simultaneous hearing of a speaker system and the headphones. With the headphones Model E-2 of high

performance and color and design connected to your amplifier on hand, you can enioy hi-fi music to your heart's

content without getting obsessed by the idea that you might be annoying your neighbors or without being disturbed

h . ._._.__ .. _ ..
' - 'm «- ---- _ _
"-- 7- .Th _.. - < - __,_.-- .
.r 4 W -. .. . . _
- _._._ -- - _ . .. .. -- i.

by external noises.

Specifications of Model SE-2

Model No.: SE-2
Matching impedance: - 16 ohms

Speaker impedance: 8 ohms for each channel

Allowcqle input: 0.5 watts

Cabtyre cord: 80 inch

Connecting terminals: 3-p iack with plug at end
eight: . 0.99 lbs

rformance of Model SE-2

. Excellent for the reproduction of low and mid ordinary speaker systems binaural effect.
ranges. . Possible to use independently with any high-
. Easy to hear because of tight fitting to ears power amplifier.
, and excellent signal noise ratio. . Possible to match to the 8 or lé-ohms output
. Rich in stereophonic sensation compared with impedance of amplifier.

.1 -_ # -~ FIIJNEER'ELEBTRDNIB IIIIRPIIRATIIIN

5 Otowacho 6 -chome, Bu'nkyoku, Tokyo, Japan
