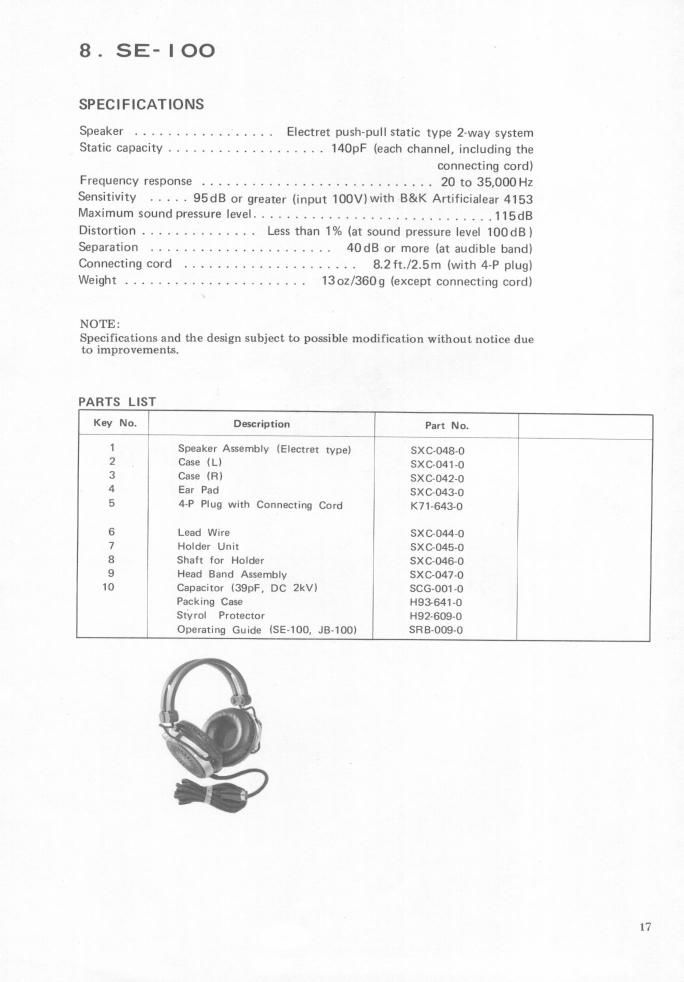

Page 1
8. SE-IOO
SPECIFICATIONS
Speaker ................. Electret push-pull static type 2-way system
Static capacity ................... 140pF (each channel, including the
connecting cord)
Frequency response ............................ 20 to 35,000 Hz
Sensitivity ..... 95dB or greater (input 100V)with B&K Artificialear 4153
Maximum sound pressure level ............................. 115dB
Distortion .............. Less than 1% (at sound pressure level iDOdB)
Separation ...................... 40dB or more (at audible band)
Connecting cord ..................... 8.2ft./2.5m (with 4-P plug)
Weight ...................... 1302/3609 (except connecting cord)
NOTE:
Specifications and the design subject to possible modification without notice due
to improvements.
PARTS LIST
Key No. Description Part No.
1 i Speaker Assembly (Electret type) SXC-048-0
2 Case (LI SXC-041-0
3 Case (R) SXC»O42-D
4 Ear Pad SXC-O43-0
5 4-P Plug with Connecting Cord K71-643-0
6 Lead Wire SXC»044-0
7 Holder Unit SXC-O45-D
8 Shaft for Holder SXC-MS-D
9 Head Band Assembly SXC-O47-0
10 Capacitor (39pF, DC 2le SCG-001»Cl
Packing Case H93641-0
Styrol Protector H92-609-0
Operating Guide (SE-100, JBJOOl SRB-OOQ-O
17
Page 2
SE-ED /I DO
18
