Pioneer sav 350 k service manual
This is the 15 pages manual for pioneer sav 350 k service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer sav 350 k service manual (Ocr-read)
Page 1

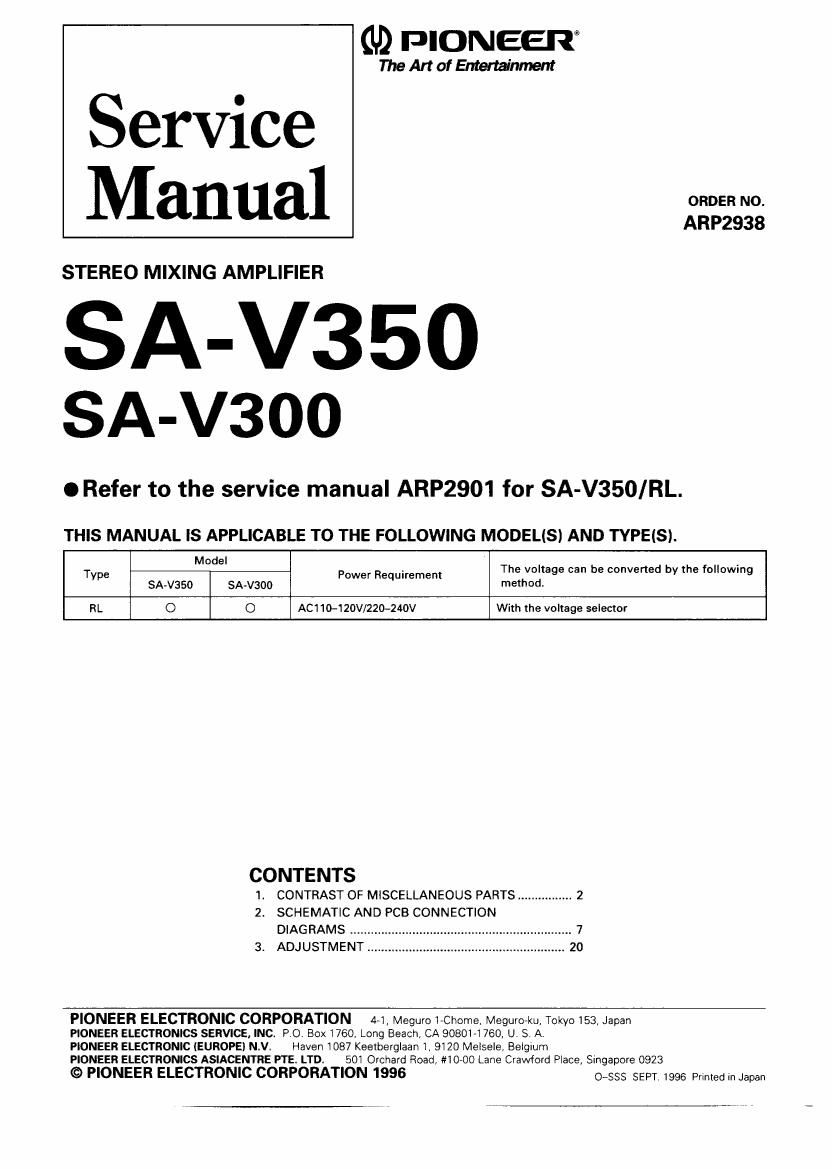

(U) PIONEERQ
The Art of Enter-Human!
Service
Manual
AR P2938
STEREO MIXING AMPLIFIER
SA-V350
SA-V3OO
0 Refer to the service manual ARP2901 for SA-V350/RL.
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Model .
Type Power Requirement The voltage can be convened by the followmg
$A-V350 SAV300 method.
RL 0 O AC110-120V/220-240V With the voltage selector
CONTENTS
1. CONTRAST 0F MISCELLANEOUS PARTS ................ 2
2. SCHEMATIC AND PCB CONNECTION
DIAGRAMS ...................... 7
3. ADJUSTMENT ............... 20
PIONEER ELECTRONIC CORPORATION 44. Meguro l-Chome, Meguro-ku. Tokyo 153, Japan
PIONEER ELECTRONICS SERVICE, INC. P O. Box 1760, Long Beach, CA 90801-1760, U. S A.
PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087 Keetberglaan 1, 9120 Melsele, Belgrum
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 501 Orchard Road, IMO-00 Lane Crawford Place. Singapore 0923
© PIONEER ELECTRONIC CORPORATION 1996 0535 SW .996 primed in Japan
Page 2
SA-V350, SA-V300
1. CONTRAST 0F MISCELLANEOUS PARTS
NOTES:
' Part: marked by "NSF" are generally unavailable because they are not in our Masler Spare Parts Lixt.
The A mark found on some component pans indicates the importance of the mfery factor of the part5, Therefore, when replacing, be sure
to use partx of identical designation.
' Parts marked by " G " are not always kept in stock. Their delivery time may be longer than usual or they may be unavailable.
SA-V350IRL; SA-V300/RL New model and Old model have the same construction except
for the following:
Part No.
Mark Svmbol 8: Description SA-V350, SA-V300 SA-V350, SA-V300 Remarks
Old model New model
INPUT ASS'Y BW21519 sz1705
CONTROL ASS'Y sz1520 sz1707
sp ASS'Y awz1522 sz1709
VOL ASS'Y sz1524 sz1706
LED ASS'Y awz1525 BW21708
CONNECT ASSY sz1525 BWZ171I for SA-V350
POWER ASS'Y sz1527 sz1710 for SA-V350
POWER ASSY sz1531 awz1714 for SA-V300
TRANS 2 ASS'Y sz1523 sz1744
MIC ASSY sz1530 awz1713
DSP ASS'Y sz1532 awz1743
A C301 Acemoa ACG7010
(0.01uF/Acwow (0.01uF/AC250V)
TERMINAL AKE-039 BKE1003
REAR PANEL BNC1033 BNC11DO for SA.V350
SCREW Not Used ABA-1047 Heier m 2.5 CONTROL ASS'Y
