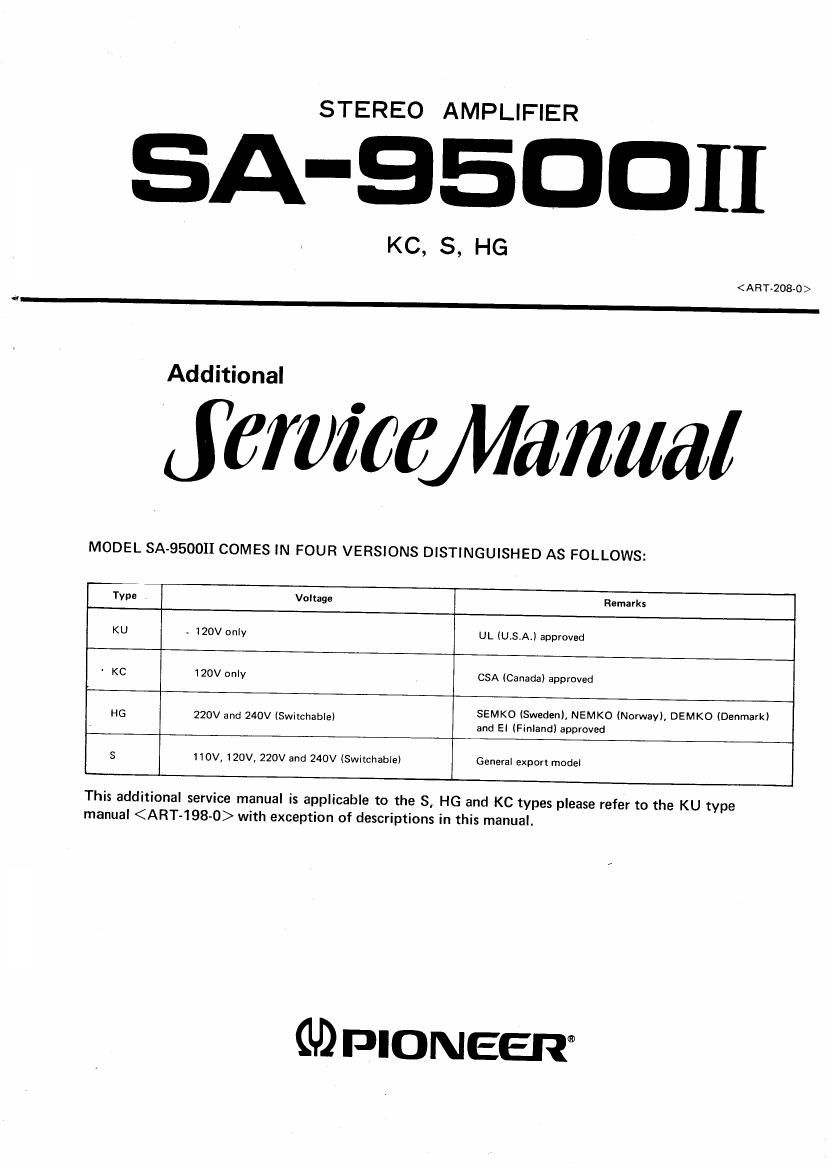

STEREO AMPLIFIER
A-SSDDII
KC, 8, HG
Additional
szwjmizudl
MODEL SA-9500H COMES IN FOUR VERSIONS DISTINGUISHED AS FOLLOWS:
Type Voltage Remarks
KU ~ 120V only UL (U,S.A.) approved
KC 120V only CSA (Canada) approved
SEMKO (Sweden), NEMKO (Norway), DEMKO (Denmark)
HG 220V and 240V (Switchable)
and El (Finland) apprcved
S 110V, 120V, 220V and 240V (Switchable) General expon model
This additional service manual is applicable to the S, HG and KC types please refer to the KU type
manual
GDPIONEER"
Page 2
m
CONTRAST OF MISCELLANEOUS PARTS
N OTE:
o Capacitors: in AF unless otherwise noted p:pF
- Resistors: in n, /4W unless otherwise noted k:kn, M:Mn
SWITCHES
Part No.
Symbol Description
KU-type KC-type HG-type S-type
$13 Lever switch (POWER) ASK-124 ASK-124 ASK-127 ASK»128
S15 Plug in selector ............... AKX-037' AKR-031
2-position line voltage selector (220V/240Vl
' 4-position line voltage selector (110VI120V/220V/240V) with fuse holder
TRANSFORMERS
Part No.
Symbol Description
KU-type KC-type HG-type S-type
T1 Power transformer (L) ATT-374 ATT-376 ATT-378 ATT-SSO
T2 Power transformer (R) ATT»375 ATT-377 ATT-379 ATT-381
FUSES
Part No.
Symbol Descrimion
KU-type KC-type HG-type S-type
FU1 Fuse 4A (for 120V) AEK»100 AEK-lOO ...............
Fuse 2A (for 220V or 240V) ................ AEKOl 7 ........
Fuse 4A (for 220V or 240V! ........................ AEK-100
Fuse 8A (for 110V or 120V) ................ AEK-1 10
FU2 Fuse 4A (for 120V) AEK~100 ................
Fuse 2A (for 220V or 240V) ................ AEK-017 ........
FU2 Fuse 0.8A (Secondary) ...................... AEK-111
FU3 Fuse 0.8A (Setondary) AEK-111 AEK-111 AEK-O31 AEK-111
FU4 Fuse 018A (Secondary) AEK-1 11 ASK-111 AEK-031 ........
0TH ERS
Part No.
Symbol Description
KU-type KC~type HG-type Stvpe
AC socket (AC OUTLETS} AKP-OOIJ AKP'004 ........ AKP-004
Recessed plug (AC INLET) ................ AKP~008 ........
AC power cord ADGAOOS ADGDOS ........ ADG-O17
Packing case AHD-433 AHD-434 AHD435 AH 0-433
Switch assembly AWS-109 AWS-111 AWS-114 AWS-115
5P connector assembly ................ AWX-OGZ AWX-OGZ
Power Amplifier assembly AWH»052 AWH 052 AWH 062 AWH~052
CAPACITORS
P t N .
Symbol Description ar 0
KU-lype KC-vve HG -tvpe S-type
C10 Ceramic 001 125V ........ ACG-OM ........ . , _ 1 1 _ .
Ceramic 0.01 250V ACG-OO1 --------------- ACG-OO1
C11 Ceramic 0.01 250V ------------------------ ACG-001
é")
