Pioneer SA 900 Schematic
This is the 6 pages manual for Pioneer SA 900 Schematic.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Page: 1 / 6
Extracted text from Pioneer SA 900 Schematic (Ocr-read)

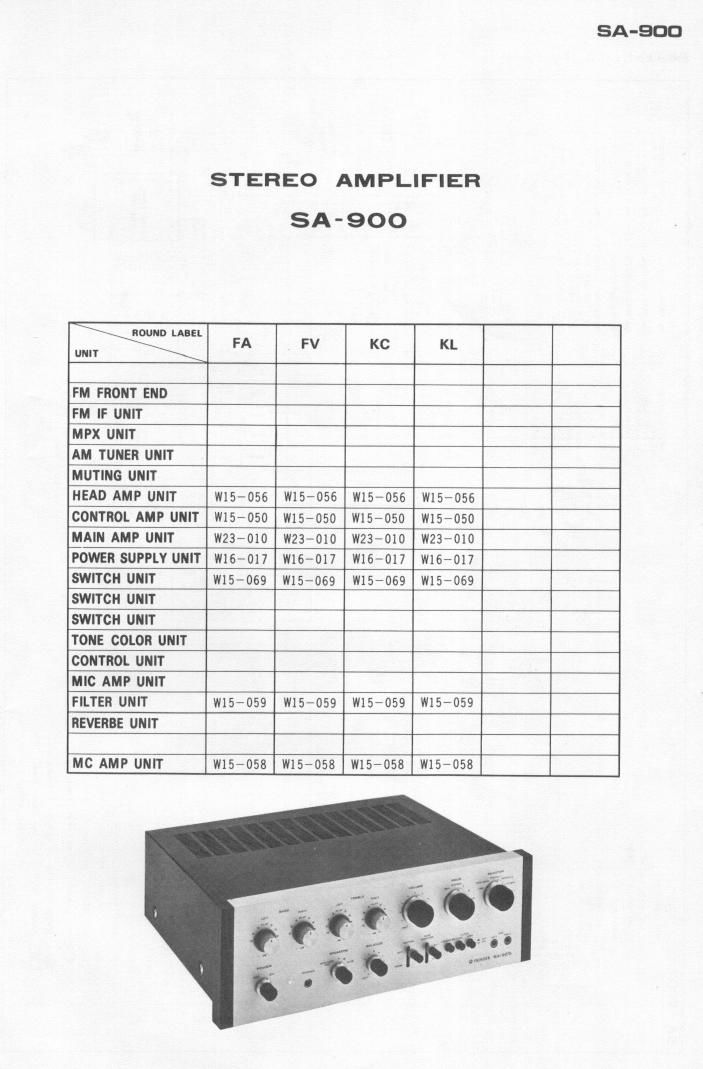

Page 1
STEREO AMPLIFIER
SA-BDD
SA-QOO
nouNo LABEL
m FA FV KC KL
FM FRONT END
FM IF UNIT
MPX UNIT
AM TUNER UNIT
MUTING UNIT
HEAD AMP UNIT WIS-056 W15056 WIS-056 WIS-056
CONTROL AMP UNIT WIS-050 WIS-050 W15~050 WIS-050
MAIN AMP UNIT W23-010 W23-010 W23-010 W237010
POWER SUPPLY UNIT WIS-017 W16-017 W16-Ol7 W16-017
SWITCH UNIT W15-069 W15~069 WIS-069 W15A069
SWITCH UNIT
SWITCH UNIT
TONE COLOR UNIT
CONTROL UNIT
MIC AMP UNIT
FILTER UNIT W15-059 WIS-059 W15~059 WIS-059
REVERBE UNIT
MC AMP UNIT WIS-058 WIS-058 WIS-058 WIS-058
