Pioneer SA 500A Brochure

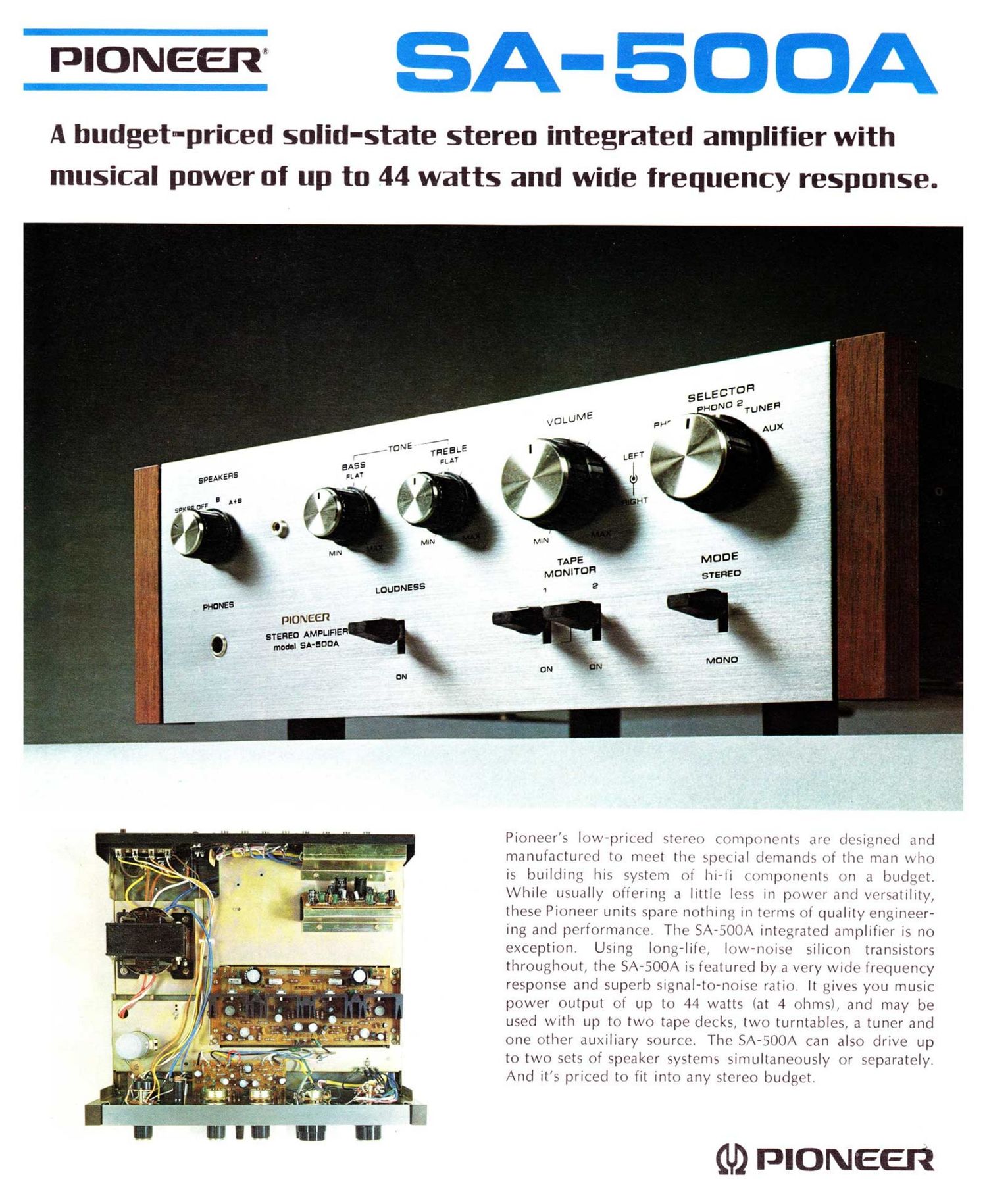

Page 1

PIONEER"

A budget-priced solid-state stereo integrated amplifier with
musical power of up to 44 watts and wide frequency response.

DIONEER

STEREO AMPLIFIE
mo. SA-UDOA

Pioneer's ltt\\"[)l'l(,('tl stereo components are designed and
manut'aetureil to meet the spei ial demands ot the man who
is building his system of lu-li iomponents on a budget.
\Vhile usually otterina; a little less in power and versatility,
these Pioneer units spare nothing; in terms of quality engineer-
ing and performame The Sri\-3()tti\ |l|l(f.1lfll((l amplifier is no
exception Using; lone-lit'ii, low-noise SlllUHt transistors
througlmut, the S»\-3()Oi"\ is leatu red by a very wide trequemy
response and superb sierial-tiriuiise ratio. It gives you music
power output of up to 44 watts lat 4 ohms), and may be
used with up to two tape decks, two turntables, a tuner and
one other auxiliary SULH'CLT. The Si\-3()t):\ can also drive up
to two sets of speaker systems simultaneously or separately.
And it's priced to lit into any stereo budget.

GD PIONEER

Page 2

SA-EOOA

DIRECT COUPLING PREAMPLIFIER SECTION

So that its dynamic range is very wide, the equalizer
circuit of the SA-500A uses two-stage direct coupling
negative feedback circuit with low-noise silicon transistors.
For professional tone control, the unit offers click-stop-type
individual bass and treble controls that allow you to increase
or decrease the audio signal delivered to the amplifier in
measured steps. Thus, signals delivered from the unit
sound the way you want them to.

POWER AMPLIFIER SECTION

The power amplifier section of the SA-500A is equipped
with quasi-complimentary single ended push-pull circuit
to ensure distortion-free sound reproduction and a wide
frequency response. Music power output of the unit is
44 watts (measured at 4 ohms), more than youll ever need
to fill your music room with spectacular solid sound. The
SA-500A can handle up to two different pairs of speaker
systems, either separately or simultaneously, giving you the
extra versatility of playing a small set of speakers in a room

adjacent to your regular music listening room. The unit
also lets you easily compare one set of speakers with
another, or lets you select the appropriate speaker unit
when systems are placed in different rooms.

TWO PHONOINPUTS

The SA-SOOA is equipped with all necessary input terminals
to allow you to build a perfect components system. It has
two sets of phono input terminals in addition to a tuner
and an auxiliary terminal. You may, if you wish, connect
two turntables simultaneously. Or you may also use the
jacks provided to compare two different cartridges or
turntables.

TWO TAPE DECK TERMINALS
The SA-500A has two pairs of TAPE REC and MONITOR

terminals so that you may operate two tape decks simulta-
neously, choosing from an open-reel deck, a cassette deck
or an 8-track cartridge tape deck. This feature permits
easy tape-to-tape duplicating.

SPECIFICATIONS
Semiconductors:
Music Power Output (IHF):

Transistors: 18, Diodes: 6

44 watts (4 ohms), 36 watts
(8 ohms)

16 wattsf16 watts (4 ohms)
13 watts/13 watts (8 ohms)
12 watts -12 watts (4 ohms)
10 watts -10 watts (8 ohms)
Less than 0.5%

(continuous power output)
Inter Modulation Distortion: Less than 0.7%

(continuous power output)
20 to 40,000Hz (8 ohms,
harmonic distortion 0.5%)
Frequency Response (AUX): 30 to 50,000Hz +1dB, -2dB
Input Sensitivity/Impedance: PHONO 1 MAC; 2.5mV,
(1KHz, for rated output) 50 Kohms

PHONO 2 MAC; 2.5mV/

50 Kohms

TUNER; 200mV/100 Kohms
AUX 1,2; 200mV/100 Kohms
TAPE MONITOR 1,2;
200mV/100 Kohms

TAPE REC 1,2 (pin jack);

Continuous Power Output:
(each channel driven)
Continuous Power Output-
(both channels driven)
Harmonic Distortion:

Power Bandwidth (I HF):

Recording Output:

ZOOmV

TAPE REC (DIN connector);
30mV

-r-11dB, --12dB/100Hz
-10dB, -e9.5dB/10KHz
PHONO; RIAA S.T.D.
+10dB/IOOHZ, +5.5dB/10KHZ
with volume control set at
-40dB position.

PHONO; more than 75dB
TUNER, AUX; more than 90dB
Channel Separation (IHF): PHONO; more than 50dB
TUNER, AUX; more than 55dB
4 to 16 ohms

40 (8 ohms, 1KHz)

110, 120, 130, 220, 240V
(switchable, FV model)

120V (K model)

75 watts (max.)

13(W) X4%(H)><127/16(D) inches
330(W) X 118(H) >< 316(D) mm
Without package: 12 lb. 2 oz./
5.5 Kg

With package: 15 |b.3 oz./6.9 Kg

BASS Control:
TREBLE Control:
Equalization Curve:
Loudness Contour:

Hum and Noise (IHF):

Speakers:
Damping Factor:
Power Requirements:

Power Consumption:
Dimensions (overall):

Weight:

(U) PIONEER

PIONEER ELECTRONIC CORPORATION / 15-5. 4-chome. Ohmori-Nishi. Ohta-ku, Tokyo, Japan
U.S. PIONEER ELECTRONICS CORPORATION / 178 Commerce Road. Carlstadt. New Jersey 07072. U.S.A.
PIONEER ELECTRONIC [EUROPE] N.V. / Noorderlaan 8:3. EOBO Antwerp. Belgium

50.000A-F-1-72 Printed In Japan
