Pioneer SA 500 Schematic

This is the 5 pages manual for Pioneer SA 500 Schematic.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 5
Pioneer SA 500 Schematic

Extracted text from Pioneer SA 500 Schematic (Ocr-read)

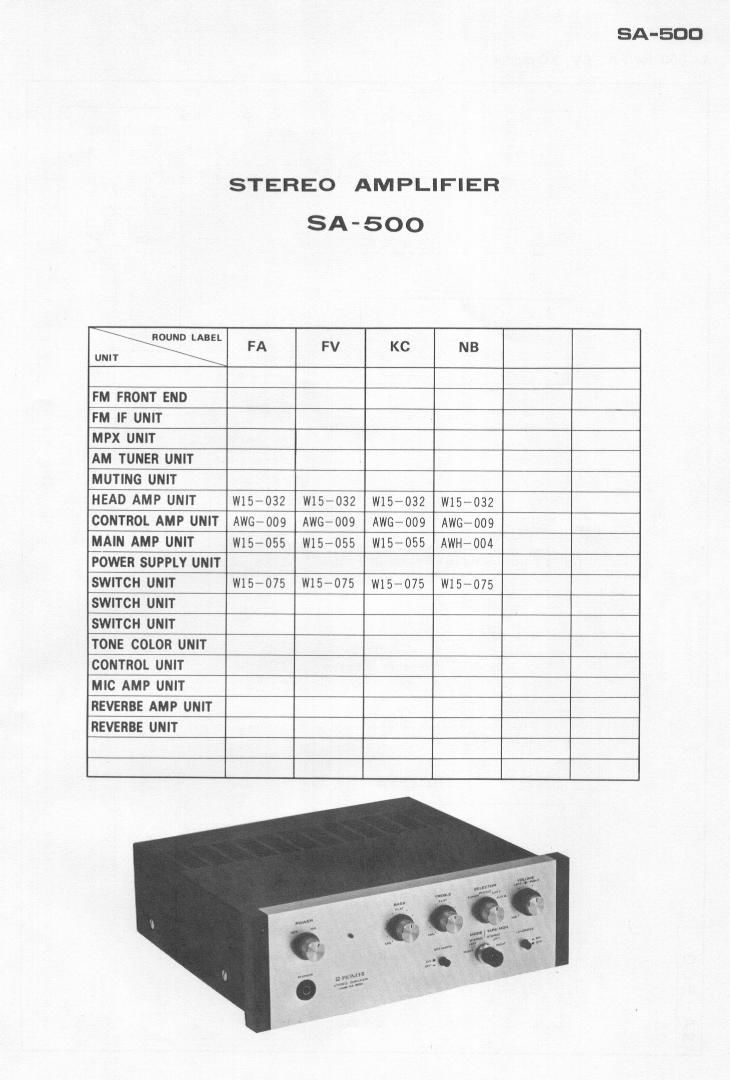

Page 1

STEREO AMPLIFIER

SA-SDD

SA - 500

ROUND LABEL FA FV KC NB
uun
FM FRONT END
FM IF UNIT
MPX UNIT
AM TUNER UNIT
MUTING UNIT
HEAD AMP UNIT W157032 W157032 W15-032 WIS-032
CONTROL AMP UNIT AWG*009 AWG*009 AWG-009 AWG~009
HAW AMP UNIT WIS-055 WIS-055 W157055 AWH7004
POWER SUPPLY UNIT
SWITCH UNIT WIS-075 WIS-075 W157075 WIS-075
SWITCH UNIT
SWITCH UNIT

TONE COLOR UNIT

CONTROL UNIT

MIC AMP UNIT

REVERBE AMP UNIT

REVERBE UNIT
