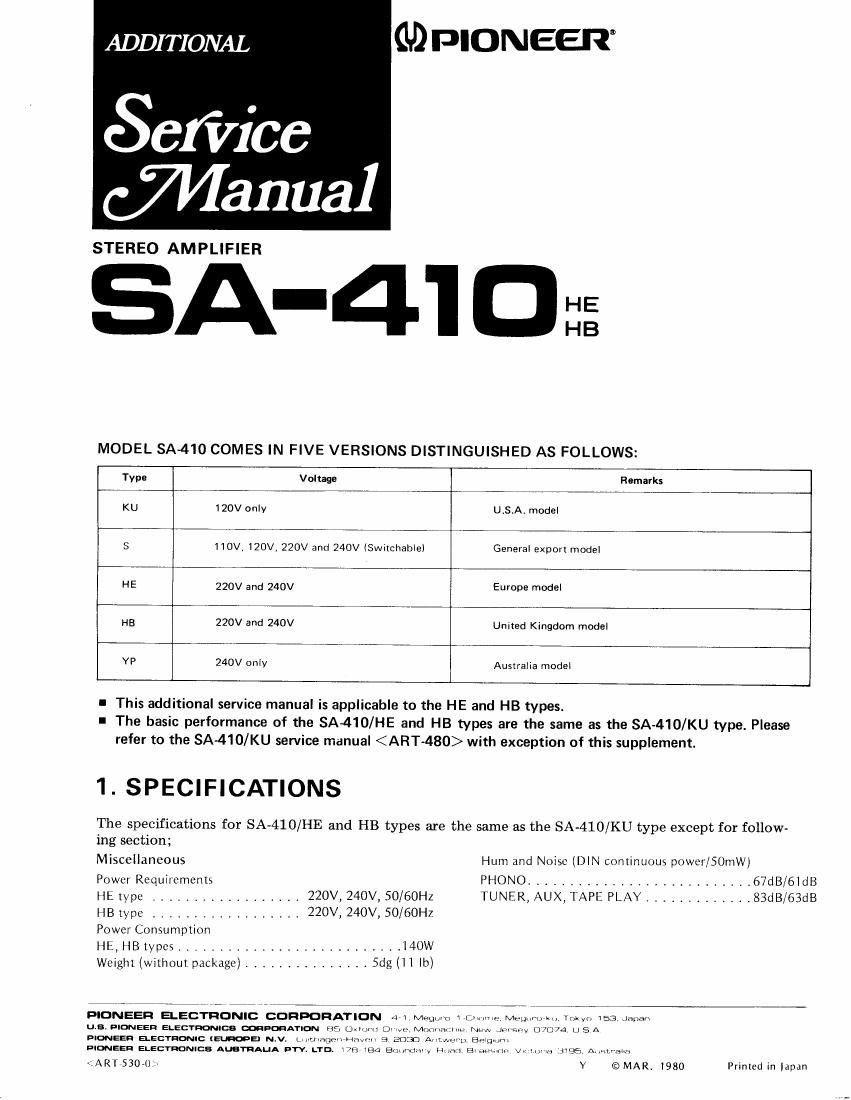

STEREO AMPLIFIER
A-4'I 0::
MODEL SA410 COMES IN FIVE VERSIONS DISTINGUISHED AS FOLLOWS:
Type Voltage Remarks
KU 120V only U.S.A. model
5 110V, 120V, 220V and 240V (Switchable) General expun model
HE 220v and 240v Europe model
HB 220V and 240V United Kingdom model
YP 240V only Australia model
I This additional service manual is applicable to the HE and HB types.
I The basic performance of the SA410/HE and HB types are the same as the SA-410/KU type. Please
refer to the SA-410/KU service manual
1. SPECIFICATIONS
The specifications for SA-410/HE and HB types are the same as the SA-410/KU type except for f0110W>
ing section;
Miscellaneous Hum and Noise (DIN continuous puwer/SOmW)
Power Requirements PHONO ........................... 67dB/61d8
HE type .................. 220V, 240V, 50/60Hz TUNER, AUX, TAPE PLAY ............. 83dB/63d8
HB type .................. 220V, 240V, 50/60HZ
Power Consumption
llE,HBtypes ........................... 140W
Weighr (without package) ............... Sdg (ll lb)
FIONEER ELECTRONIC CORPORATION AH Magma H'
ura. Maureen ELEcTnoNIcB mnuonArIoN US: leul"! Dv m,- Mnmw lm-I New J;
moneEn ELECYHDNII: (may ~.v. lxr-ledgtlr'Han Q 2030 Avvrwuvp Beg-uni
moNEEH ELECTRONICS AnamAuA pw, LTD. 'm r84 Burn-mini y H mm. Ev'aearrlm
mum-L rm Yr, «53. umdn
_, ma was Ahmar-n
O/C IA L1 S A
