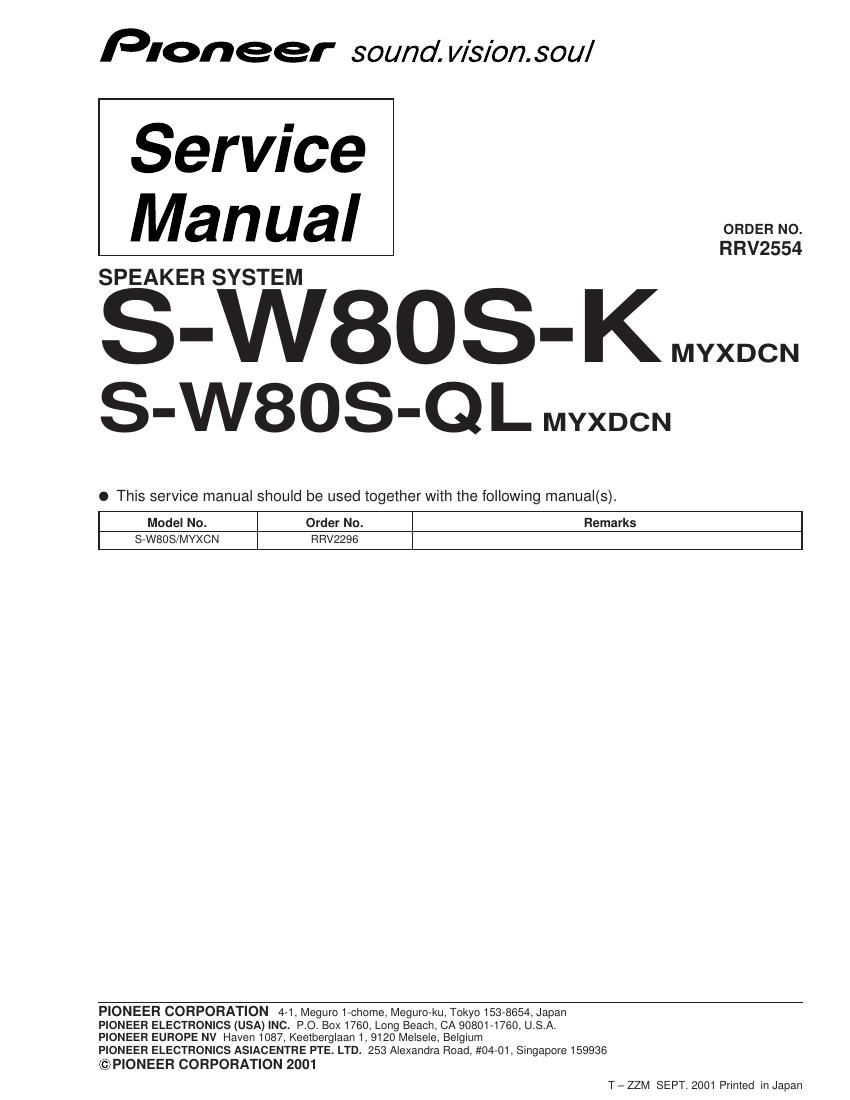

Pioneer sw 80 sk service manual

This is the 2 pages manual for pioneer sw 80 sk service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 2
pioneer sw 80 sk service manual

Extracted text from pioneer sw 80 sk service manual (Ocr-read)


Page 1

S-W80S-K, S-W80S-QL 2PACKING P3- 2 Carton Box 07-390035-00 07-390213-00 07-390212-00 P3- 3 Operating Instructions 12-540052-11 12-540250-10 12-540250-10 (English/French/German/Italian/ Dutch/Swedish/Spanish/Portuguese) FRONT SECTION P4- 4 Control Panel 20Ð101022Ð01 20-101160-01 20-101160-01 P4- 5 Volume Knob (LEVEL) 20Ð101023Ð01 20-101162-01 20-101162-01 P4- 6 Frequency Knob (TURNOVER) 20Ð101024Ð01 20-101164-01 20-101164-01 P4- 7 Push Button (POWER) 20Ð101026Ð01 20-101166-01 20-101166-01 P4- 8 Push Button (PHASE) 20Ð101027Ð01 20-101168-01 20-101168-01 P4-10 Grille Assy 00Ð101021Ð01 00-101021-02 00-101021-03 REAR SECTION P5- 1 Rear Panel 21-301031-01 21-301224-01 21-301223-01 CONTRAST OF MISCELLANEOUS PARTS Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. Reference Nos. indicate the pages and Nos. in the service manual for the base model. NOTES: CONTRAST TABLE S-W80S-K/MYXDCN, S-W80S-QL/MYXDCN and S-W80S/MYXCN are constructed the same except for the following : Part No. S-W80S /MYXCN Ref. No. Symbol and Description Remarks MarkS-W80S-K /MYXDCNS-W80S-QL /MYXDCN
