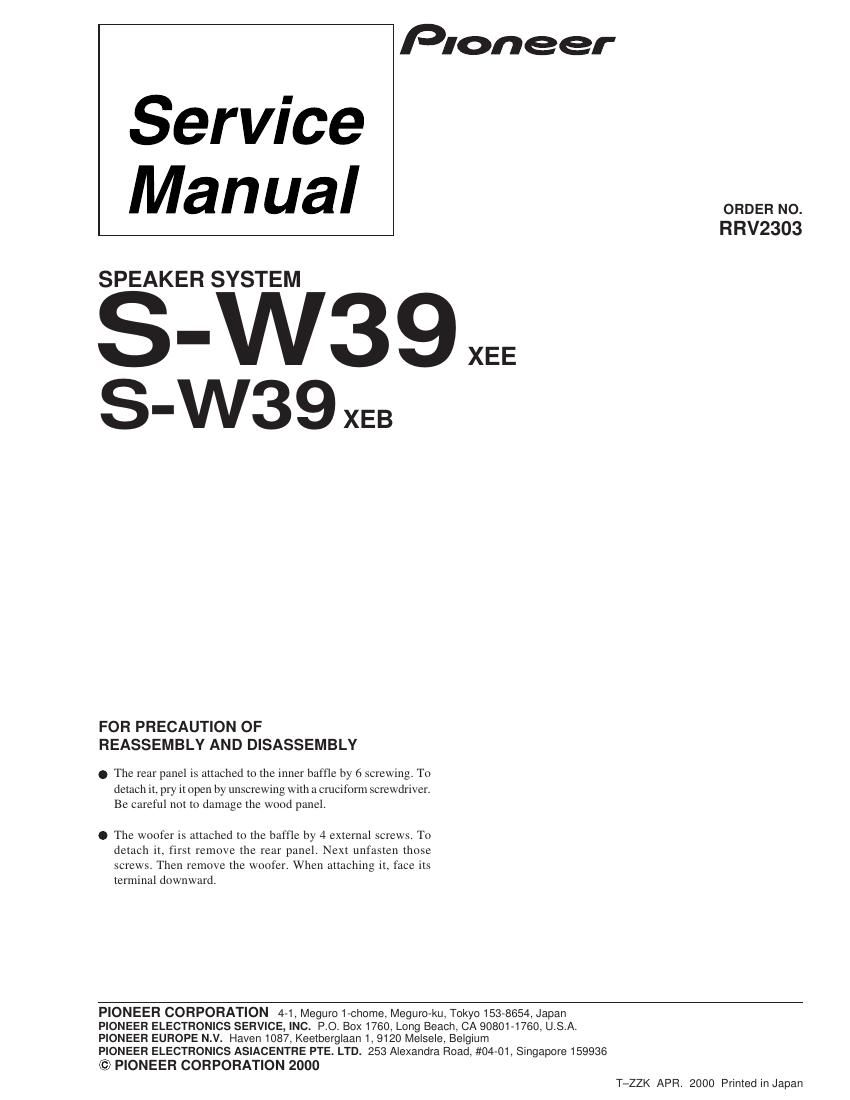

Page 1

S-W39 2 NOTES : Parts marked by Ò NSP Ó are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. PARTS LIST Input Terminal FRKX-008 Network Assy FRWN-100 Speaker (WF) P10EC65-57D Screw (for WF) FRBA-011 Screw (for Rear Panel) FRBA-016 Ring FRNK-141 Badge FRAM-035Speaker Wire FRDD-042 Protector FRHA-185 Packing Case FRHG-265 Plastic Bag FRHL-031 Operating Instructions FRRD-137 SCHEMATIC DIAGRAM Woofer Network Assy (FRWN-100) 2.7mH I NPUT TERMINAL Connector Connector Mark No. Description Part No. Mark No. Description Part No. For Packing
